Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV10027

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	60.97-126.86m3/min
Discharge Differential Pressure:	-10KPA ~-40KPA	Motor Power:	22-200KW
Discharge Bore:	DN300(12”)	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley	Weight:	1700 Kg
Speed:	800-1400 Rpm	Shaft Power:	23.03-96.64 KW
Highlight:	air blower pump , blower vacuum pump

Pneumatic Roots Blower Vacuum Pump, Roots air pump, vacuum -40KPA

About BK vacuum pump

BV10027 is a vacuum use blower developed by B-Tohin based on its advanced technology and years' experience in producing pneumatic equipment. Its maximum vacuum is -40KPA, and maximum air capacity is 7200m3/h.Main parts manufactured by CNC of high precision and inspected by CMM machine ensures its high quality and reliable performance.

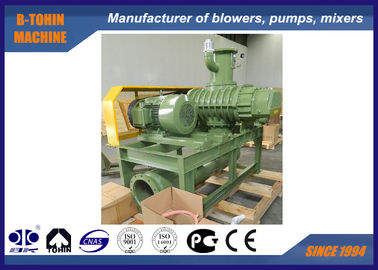

Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA 0

Specifications

Model	BV10027
Inlet dimension	DN300
Outlet dimension	DN300
Air capacity	60.97-126.86m³/min
Discharge differential pressure	-10 ~ -40KPA
Rotary speed	800-1400rpm
Motor type	22-200KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Motor efficiency grade	IE3
Moror insulation class	F, temperature rising B
Motor protection class	IP55
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	1700kg
Packing size Approx.	2.671.872.61m (lengthwidthheight)

Parameter sheet

Model	Port Dia (MM)	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2		-0.4kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O		-4000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa		-0.04Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV10027	300(12")	800	69.07	23.03	65.69	36.10	63.09	48.22	60.97	55.22
		900	78.70	25.91	75.33	40.61	72.73	54.24	70.61	62.13
		1000	88.33	28.79	84.96	45.12	82.36	60.27	80.24	69.03
		1100	97.96	31.67	94.59	49.63	91.99	66.30	89.87	75.93
		1250	112.41	35.99	109.04	56.40	106.44	75.34	104.32	86.29
		1400	126.86	40.30	123.49	63.17	120.89	84.38	118.77	96.64

Assembling drawing of blower package

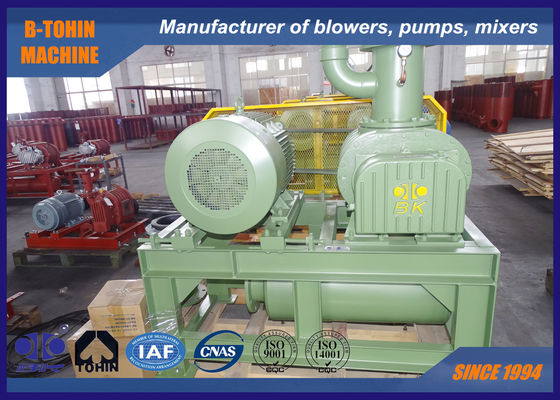

Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA 1

BV Outline Dimension Sheet

Unit:mm

Type

Port Dia

Motor power

n-M16×h

Weight
(kg)

BV10027

300(12")

22～200

4-M16×400

Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.

The weight above are for standard accessories only,motor excluded.

Standard supply of scope

1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor

FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.

Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.

Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

Q4: What is your warranty?
Our warranty is 12 months after received the machine.

Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.

Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.

Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
