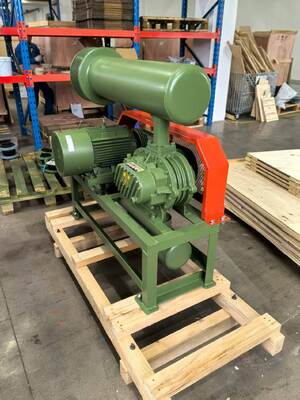

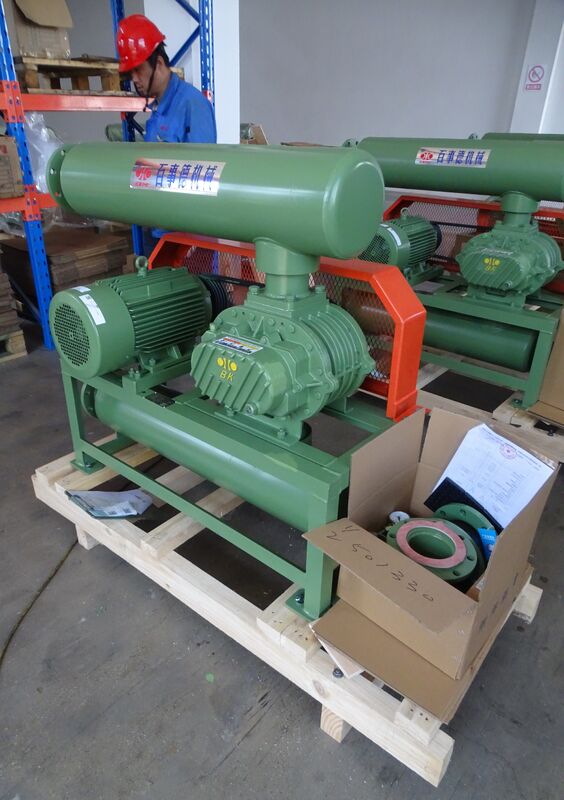

-0.1~-0.5kgf/cm2 Pressure ,Three Lobe Negative Pressure Roots Blower, Cast Iron, Blue, Industrial Vacuum Pump, 5.5-22kW

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV6005

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Air Capacity:	4.07-12.74 M³/min	Discharge Differential Pressure:	-10~ -50KPA
Motor Power:	5.5-7.5/11-15/18.5-22 Kw	Discharge Bore:	DN80(3")
Cooling Type:	Air	Foundation Blots:	4-M16*300
Weight:	241 Kg	Speed:	850-1800 Rpm
Shaft Power:	1.69-12.97 Kw

-0.1~-0.5 kgf/cm2,Three Lobe Negative Pressure Roots Blower Industrial Vacuum Pump

About BV6005 Vacuum Blower

Air-cooled casing is adopted to introduce external cooling air;stable operation,lower noise the normal negative pressure blower;compact structure,reasonable design, flexible and convenient installation.

Specifications

Model	BV6005
Air capacity	4.07-12.74 m³/min
Discharge differential pressure	-10 ~ -50KPA
Rotary speed	850-1800rpm
Motor type	5.5-7.5/11-15/18.5-22KW 380/400/415/440V, 3PHASES, 50/60HZ
Installation type	Standard: horizontal type, vertical type can be made to order
N.W. of blower without motor	241kg

Parameter sheet

Model	Port Dia	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2		-0.4kgf/cm2		-0.5kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O		-4000mmH2O		-5000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa		-0.04Mpa		-0.05Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV6005	80(3")	850	5.44	1.69	4.97	3.01	4.63	3.98	4.33	4.97	4.07	6.12
		1000	6.59	1.99	6.13	3.54	5.78	4.69	5.48	5.85	5.23	7.20
		1150	7.74	2.29	7.28	4.08	6.93	5.39	6.63	6.72	6.38	8.28
		1250	8.51	2.49	8.05	4.43	7.70	5.86	7.40	7.31	7.15	9.01
		1400	9.66	2.79	9.20	4.96	8.86	6.56	8.56	8.19	8.30	10.09
		1500	10.43	2.98	9.97	5.32	9.63	7.03	9.33	8.77	9.07	10.81
		1650	11.59	3.28	11.12	5.85	10.78	7.73	10.48	9.65	10.23	11.89
		1800	12.74	3.58	12.28	6.38	11.93	8.44	11.63	10.53	11.38	12.97

Assembling drawing of blower package

BV Outline Dimension Sheet																	Unit:mm
Type	Port Dia	Motor power	A	B	C	D	E	F	G	H	K	M	N	0	P	Q	n-M16×h	Weight (kg)
BV6005	80(3")	5.5～7.5	1330	1054	100	221	598	179	237	1162	161	332	406	135	200	18	4-M16×300	241
		11~15										458	532
		18.5～22										493	567
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.

Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
