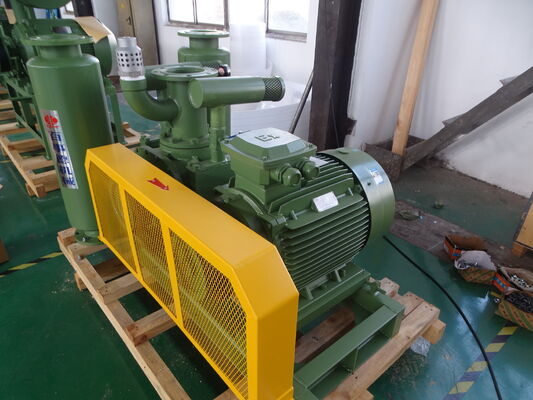

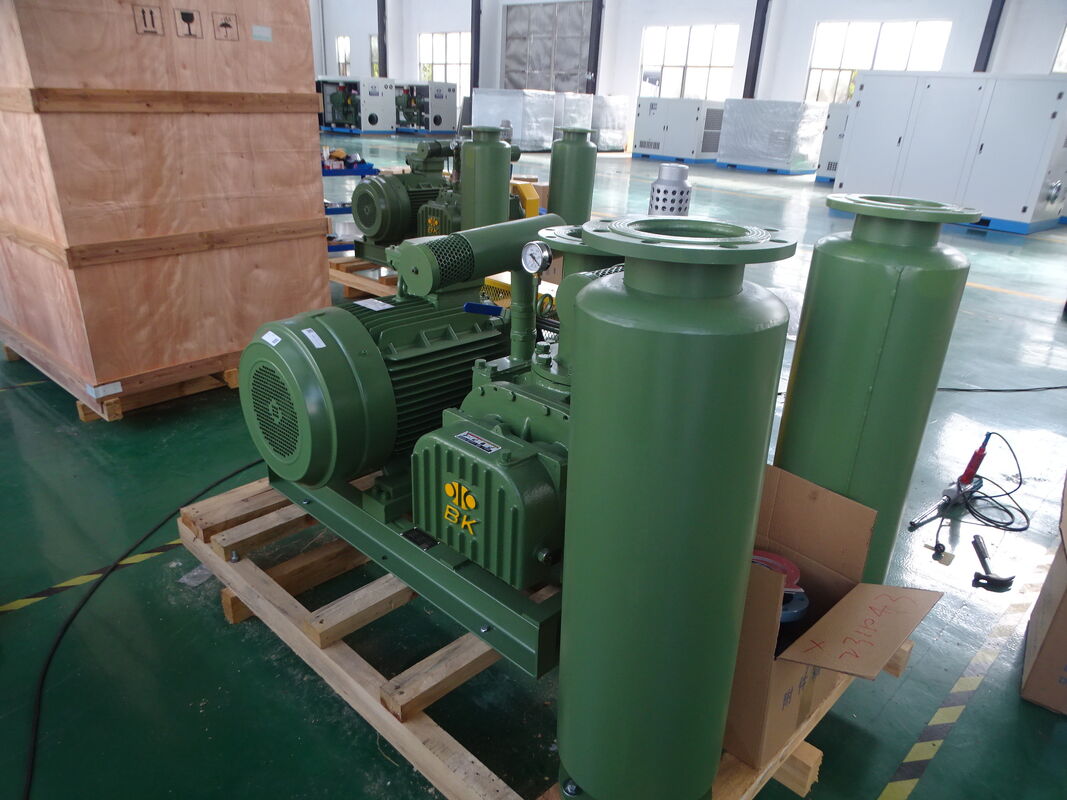

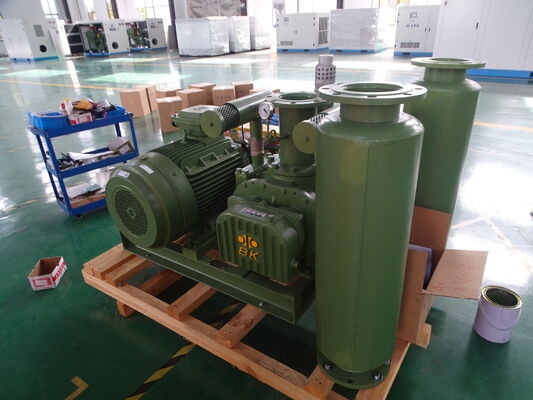

BK BV6008 Industrial Roots Vacuum Pump -30KPA Negative Pressure Blower for Vacuum Conveying & Suction Feeding System

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV6008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Air Capacity:	7.38-20.63 M³/min	Discharge Differential Pressure:	-10~ -40KPA
Motor Power:	5.5-7.5/11-15/18.5-22 /30/37-45kw	Discharge Bore:	DN125(5")
Cooling Type:	Air	Foundation Blots:	4-M16*400
Weight:	290 Kg	Speed:	850-1800 Rpm
Shaft Power:	2.60-16.40 Kw

BK BV6008 Industrial Roots Vacuum Pump -30KPA Negative Pressure Blower for Vacuum Conveying & Suction Feeding System

About BV6005 Vacuum Blower

Air-cooled casing is adopted to introduce external cooling air;stable operation,lower noise the normal negative pressure blower;compact structure,reasonable design, flexible and convenient installation.

Specifications

Model	BV6008
Air capacity	7.38-30.63m³/min
Discharge differential pressure	-10 ~ -40KPA
Rotary speed	850-1800rpm
Motor type	5.5-7.5/11-15/18.5-22/30/37-45KW 380/400/415/440V, 3PHASES, 50/60HZ
Installation type	Standard: horizontal type, vertical type can be made to order
N.W. of blower without motor	290kg

Parameter sheet

Model	Port Dia	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2		-0.4kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O		-4000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa		-0.04Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV6008	125(5")	850	8.93	2.60	8.29	4.58	7.80	6.16	7.38	7.75
		1000	10.78	3.05	10.13	5.39	9.64	7.24	9.22	9.11
		1150	12.62	3.51	11.98	6.20	11.49	8.33	11.07	10.48
		1250	13.85	3.82	13.21	6.74	12.72	9.05	12.30	11.39
		1400	15.70	4.28	15.06	7.55	14.57	10.14	14.15	12.76
		1500	16.93	4.58	16.29	8.08	15.80	10.86	15.38	13.67
		1650	18.78	5.04	18.14	8.89	17.65	11.95	17.23	15.04
		1800	20.63	5.50	19.99	9.70	19.49	13.04	19.08	16.40

Assembling drawing of blower package

Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
