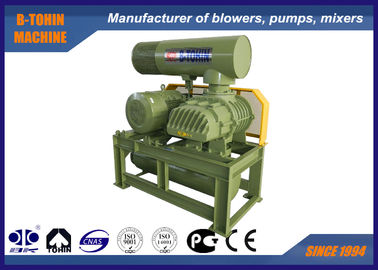

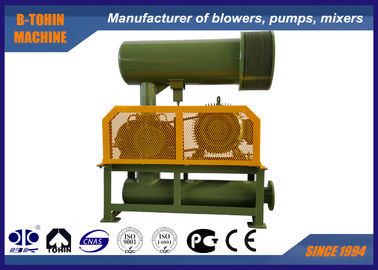

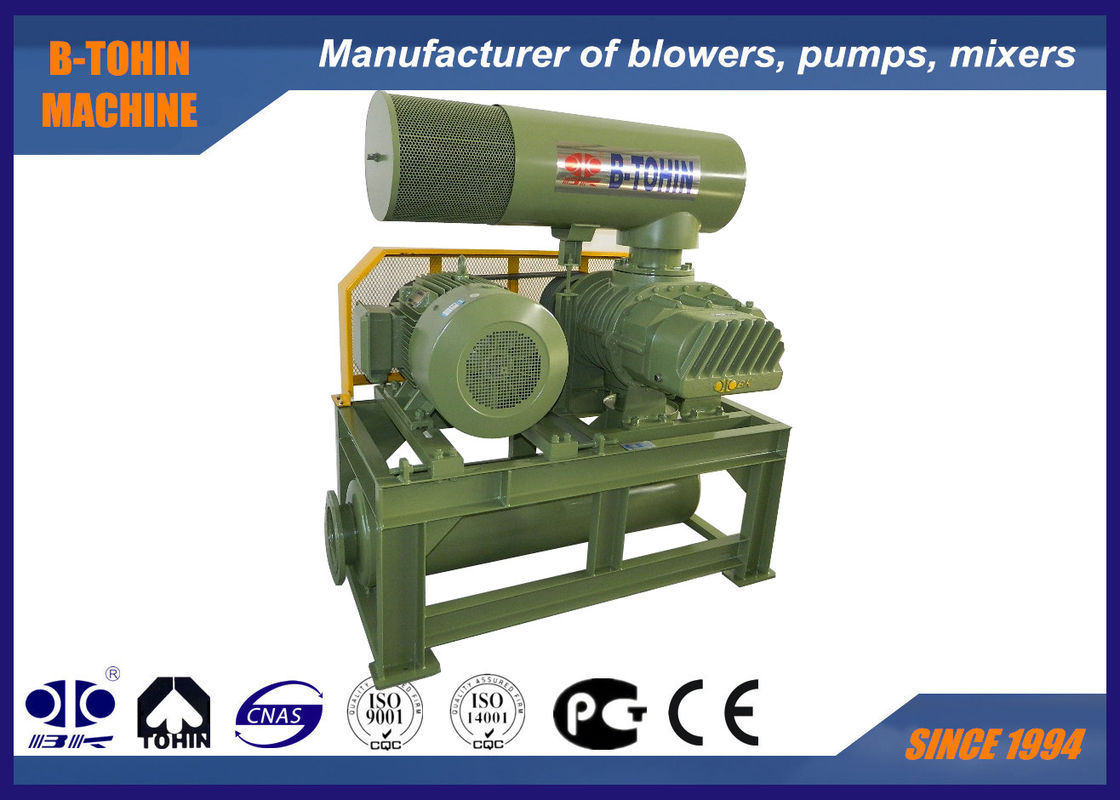

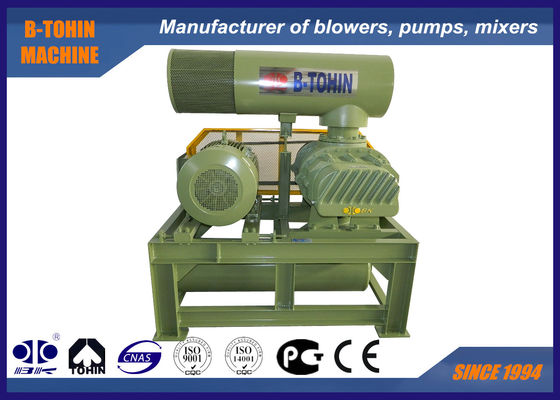

Pressure 80 Kpa Heavy Duty Continuous Three Lobe Roots Vacuum Blower

Pressure 80 Kpa Heavy Duty Continuous Three Lobe Roots Vacuum Blower

  • Pressure 80 Kpa Heavy Duty Continuous Three Lobe Roots Vacuum Blower
Pressure 80 Kpa Heavy Duty Continuous Three Lobe Roots Vacuum Blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: BK8016S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 100 SETS per month
Contact Now
Detailed Product Description
Name: Three Lobe Roots Blower Air Capacity: 15.21-47.14m3/min
Maximum Discharge Pressure: 60KPA Motor Power: 18.5-75KW
Discharge Bore: DN150 (6”) Application:: Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement Factory, Printing Plant, Etc.
Main Materials: Cast Iron Origin Of Technology: USA
Bearing Brand: Chinese Brand, NSK, SKF For Customer's Option Voltage: 380V/400V/415V/440V/Customed
Frequency: 50HZ/60HZ
High Light:

three lobe air root blower

,

roots vacuum blower three lobe

,

three lobe roots vacuum blower

Positive Three Lobe Roots Blower, pressure 10-80KPA, rotary speed 700-1500rpm


Roots blower is widely used in electricity,petroleum,steel industry,smelling,food,oxygen making,spinning,

vacuum packing,paper making,aquaculture,sewage treatment,pneumatic conveying,etc.



Specifications:



Model

BK8016S

Air capacity

15.21-47.14m3/min

Discharge differential pressure

10-60KPA

Rotary speed

700-1500rpm

Motor type

18.5KW-90KW

380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: horizontal type

Vertical type available for your option

Color Customized, standard of RAL6011

N.W. of blower without motor

730 kg

Packing size Approx.

2.1*1.5*2.35 (length*width*height)



Model Port Dia (MM) Speed Inlet airflow (m3/min)and shaft power(KW)
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2 0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O 5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
BK8016S 150 (6") 700 20.17 11.16 18.75 13.93 17.67 16.69 16.75 19.45 15.94 22.21 15.21 24.98
850 25.23 13.55 23.81 16.91 22.72 20.26 21.81 23.62 21.00 26.97 20.27 30.33 19.59 33.68
1000 30.29 15.95 28.87 19.89 27.78 23.84 26.86 27.79 26.05 31.73 25.32 35.68 24.65 39.63 24.02 43.57
1150 35.34 18.34 33.93 22.88 32.84 27.42 31.92 31.95 31.11 36.49 30.38 41.03 29.71 45.57 29.08 50.11
1250 38.72 19.93 37.30 24.87 36.21 29.80 35.29 34.73 34.48 39.67 33.75 44.60 33.08 49.53 32.45 54.47
1400 43.77 22.33 42.35 27.85 41.26 33.38 40.35 38.90 39.54 44.43 38.81 49.95 38.14 55.48 37.51 61.00
1500 47.14 23.92 45.72 29.84 44.64 35.76 43.72 41.68 42.91 47.60 42.18 53.52 41.51 59.44 40.88 65.36



Features:

1. Helical type timing gears for smooth operation

2. Compact, flexibility in installation gives users more choices.

3. Adopt integral structure of impeller, more stable in operation.

4. Adopt imported oil seals made from fluoric rubber, which is of good wear resistance and high-temperature resistance.

5. Small vibration and economical energy consumption.





Parameter sheet



Manufacturing standards



The products provided by the supplier are manufactured according to the following standards:



JISB8341-1995 "Displacement compressor test and inspection method"

JB/T8941.1-1999 "Conditions for Roots Blower for General Application"

JB/T8941.2-1999 "Performance Test Method for Roots Blower for General Application "

GB/T 13306-91 GB / T 13306-91 "Nameplate"





Structure of blower main body


Pressure 80 Kpa Heavy Duty Continuous Three Lobe Roots Vacuum Blower 0



No.

Part Name

Qty.



No.

Part Name

Qty.



No.

Part Name

Qty.

1

Footing

2



9

Left end cover

1



17

Oil tank

1

2

Hexagon bolt

4



10

Round pin

4



18

Gear

2

3

Antidust seal

1



11

Housing

1



19

Key

2

4

Drive impeller

1



12

Oil seal

4



20

Axial sleeve

2

5

Drive end bearing

2



13

Right end cover

1



21

Gear end bearing

2

6

Driven impeller

2



14

Bolt

16



22

Bearing plate

2

7

Dust cover

1



15

Breather

1



23

Adjustable pad

several

8

Grease nipple

2



16

Mounting bolt

8



24

Magnetic nut

1





Assembling drawing of blower package



Pressure 80 Kpa Heavy Duty Continuous Three Lobe Roots Vacuum Blower 1





Standard supply of scope



1. bare shaft blower

2. relieve valve

3. slime type wafer check valve



4. inlet silencer(with air filter)

Damping silencer is adopted for mainly eliminating the airflow noise at the inlet of the blower. It is welded by outer cylinder, inner cylinder, flange and other parts, and the sound absorption material is placed between the inner and outer cylinders for light weight,low resistance and better noise reduction effect. The silencer is made of A3 steel.



5. discharge silencer

6. Blower and motor base (with belt cover)

7. rubber flexible joint and shock absorber

8. motor pulley

9. pressure meter

10. V-belt

11. bolts and nuts and other connection parts

12. electric motor



Optional parts such as acoustic enclosure, control cabinet, auto-start valve and spares are available.
