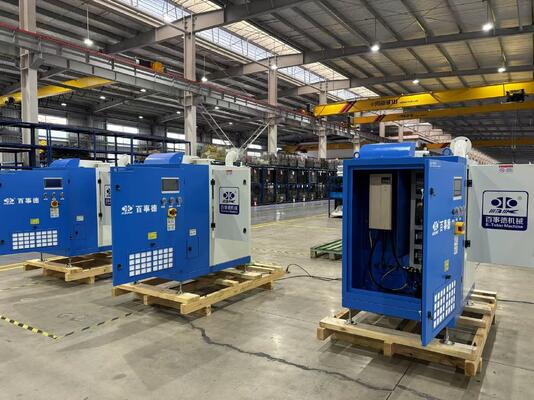

60KPA Electric Single Stage Centrifugal Blowers Air Bearing Turbo Centrifugal Blower

60KPA Electric Single Stage Centrifugal Blowers Air Bearing Turbo Centrifugal Blower

  • 60KPA Electric Single Stage Centrifugal Blowers Air Bearing Turbo Centrifugal Blower
60KPA Electric Single Stage Centrifugal Blowers Air Bearing Turbo Centrifugal Blower
Product Details:
Place of Origin: Korea, China
Brand Name: ACE
Certification: ISO9001/ISO14001
Model Number: ATB50-0.6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 1 month
Payment Terms: L/C, T/T
Supply Ability: 1 set / month
Contact Now
Detailed Product Description
Maintenance: No Need, Only Need Replace The Air Filter According Operation Frequency Pressure: 60KPA
Air Capacity: 34 ㎥ / Min Cooling Way: Air Cooling
Bearing Type: Air Bearing After-sales Service Provided: Engineers Available To Service Machinery Overseas
Power Source: Electric Blower Name: Single Stage Centrifugal Blowers
High Light:

Electric Single Stage Centrifugal Blowers

,

60KPA Single Stage Centrifugal Blowers

,

Air bearing turbo centrifugal blower

Air cooling Single Stage Centrifugal Blowers



Advantages of ATB Blower


(1) Energy-saving, high efficiency

Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.


(2) Low noise

Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.


(3) No oil, no vibration

Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.


(4) Convenient maintenance

Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance



About the product

B-TOHIN machine (jiangsu) co., LTD., the foreign capital enterprise, was founded in 1994, the company has passed the pass the quality management system certification and | SO14001 environmental management system certification, and was identified as high-tech enterprises in jiangsu province, China famous trademark, brand-name products in jiangsu province, jiangsu province energy saving air power equipment engineering technology research center, a famous trademark in jiangsu province, environmental protection product certification, and won several national patents and national torch project.I have been awarded the brand title of Chinese water network user satisfaction for many years.

ATB series air suspension bearing high speed centrifugal blower is our company in South Korea production, complete machine.The product of the mouth adopts air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.

Key Techonogy

1. Air Foil bearing

Air foil bearing is lubricated by air buoyancy. The use of air instead of lubricant can realize operation under higher temperature and speed. The advantages of air foil bearing structure include flexible start-up, low-cost operation, no mechanical friction, no need for lubrication oil, no vibration, lower noise and long service life (semi-permanent).

                               60KPA Electric Single Stage Centrifugal Blowers Air Bearing Turbo Centrifugal Blower 0

2.Comparisontable of different bearings


Item Roller bearing Tilting-pad bearing Magnetic bearing Air foil bearing
Lubricants Need Need - -
Maintenance

Need replace
after a period of
operation

Need regular
check/replace

Need replace
assistant
ball bearing

No Need

Maintenance
period

1 year 1 year 5 years 20 years

Power cut/
electrical failure

Oil pressure drop/
possible fault

Oil pressure drop/
possible fault

Short life of
assistant
ball bearing

No

System
composition

Complex
oil system

Complex
oil system

Complex controller,
limited bearing
coil life

Easy
(complete
machine type)

Power loss

5% loss due to
gear system

10% loss due to
gear system

(When high speed
motor equipped)
1% loss

(When high speed
motor equipped)
Loss < 0.5%

A/S charges 50 100 100 50



3.High Speed Motor

Adopt motor of high-efficiency up to 95%, of which the speed can be controlled precisely. The motor is of minimum usable design, fast speed and air cooling type to achieve high efficiency. Air cooling is more reliable than water cooling type, because it provides easier maintenance and promises safer operation.



4. Inverter & PLC

Inverter

Adopt the international famous brand Japan YASKAWA inverter. The motor can be started up with a small current so as to cut down the investment on electricity and electric cable. Featured of low noise, high-efficiency, soft-start type and digital control efficiency no less than 96%, the inverter is stable and reliable in operation and can response to rapid load change very fast.


PLC

Adopt the programmable logic controller (PLC) of international famous brand, of which the automated solutions standard reaches the world level. The PLC can provide users various solutions from control to final connection to load. Different with MICOM, the PLC needn’t MCP. With single unit or multiple units communication realized by bus wire and center control system, the PLC can lower cost, improve control capability and safety level.



5.Model and Data


Model

Pressure
mmAq

Air Capacity
㎥/min

Discharge Bore A Cooling Way
ATB50-0.6 6000 34 200 Air cooling





Comparison with Roots Blower


Item Traditional Roots Blower ATB150-0.6
Discharge pressure 0.6 bar 0.6 bar
Air capacity 70 m³/min 70 m³/min
Shaft power 112.5 KW 72.5 KW
Compression efficiency 50% 75%
Noise(@ 1.5m) 95~110 dB 80 dB
Lubrication oil Need No need
Service life 7 years Semi permanent
Annual depreciation 100.0% 53.3%
Annual energy consumption 100.0% 50.0%
Annual maintenance cost 100.0% 8.3%
Annual total cost 100.0% 57.7%



 6. Summing up

Air suspension centrifugal fan with traditional roots blower, multistage centrifugal blower is different, use air bearing, direct technology, high efficiency impeller and ultra-high speed motor, to breakthrough the economic benefits of the higher energy saving effect.In order to help the ecological environment and stable technology, provide a good comfortable working environment, can expect multiple effects.
