Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | CHINA |
| Brand Name: | B-TOHIN |
| Certification: | ISO9001 / ISO14001 |
| Model Number: | BLG115RA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | EXPORT WOODEN CASE |
| Delivery Time: | 30 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Description: | Screw Blower BLG115RA | Pressure: | 40-150Kpa |
|---|---|---|---|
| Air Flow: | 3.0m3/Min-7.3m3/Min | Package: | Wooden Case |
| Shaft Power: | 5.4kw-23kw | Cooling Type: | Oil |
| High Light: | 7.3m3/Min rotary screw blower,variable frequency rotary screw blower,blue rotary air blower |
||

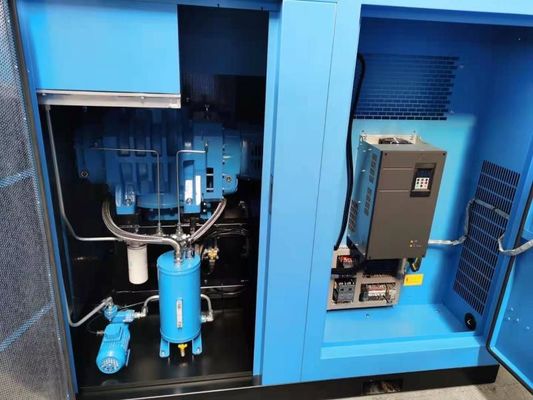

Screw Blower
Working Principle
1. Suction starts
2. Suction ends and compression begins
3. During compression
4. Compression ends and air discharge begins
Features
Energy saving
Thanks to the adiabatic compression principle, the total efficiency of oil-free screw blower exceeds 75%, saving more than 20%-35% energy than the Roots blower. The blower is featured with higher discharge pressure and lower pressure pulse.
Low noise
The aerodynamic noise of the screw rotor is very small, and the smooth output eliminates the sudden release of internal air, and the wavy inlet and air outlet minimize airflow fluctuations, so the noise is less than that of traditional blowers.
Intelligent
Intelligent PLC control, remote control and various communication methods are convenient for operation and management
Low cost
The optimized structural design enables the durability of the product with less consumption. Also no special infrastructure is required due to the smooth running and small load of the unit.
Parameters
Description of blower parts
|
Shaft screw blower main body |
high efficiency profile rotor design ● adopt synchronous gear and drive gear of national standard precision grade 5 ● Innovative bearing arrangement of screw, fixed radial bearing and thrust bearing adopted to increase the service life ● oil and gas separation between compression chamber and lubricating chamber realized by Labyrinth seal + carbon ring seal, ensuring the discharge of pure air. |
|
|
Permanent magnet motor |
Magnetic properties, no external energy is required to maintain its magnetic field |
|
| Oil lubrication system |
More reliable forced circulation lubrication cooling system separately designed |
|
| Operation control system |
Integrated station monitoring instrument, signal control module, inverter, touch screen, etc., no additional installation required |
|
Supply Scope
| Items | Description | Unit | Qty. | Remarks |
| 1 | Blower main body | set | 1 | |
| 2 | Motor | set | 1 | VFD |
| 3 | Cooling fan | set | 1 | |
| 4 | Heat Exchanger | set | 1 | |
| 5 | Air filter | set | 1 | |
| 6 | Oil filter | set | 1 | |
| 7 | Pressure valve | set | 1 | |
| 8 | Oil pump | set | 1 | |
| 9 | Connection pipe | pcs | 1 | |
| 10 | Contactor | set | 1 | Siemens or Schneider |
| 11 | Inverter | set | 1 | Taiwan QMA |
| 12 | Enclosure | set | 1 | |
| 13 | Check valve | set | 1 | |
| 14 | Stainless steel expansion joint | set | 1 | |
| 15 | Relief valve | set | 1 |
