Professional Manufacturer of Various Kinds of Blowers

|
| Place of Origin: | CHINA |
| Brand Name: | BK |
| Certification: | ISO9001 / ISO14001/CE |
| Model Number: | BKW8024S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 9005- USD 12320 |
| Packaging Details: | EXPORT WOODEN CASES |
| Delivery Time: | 45 WORK DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 SETS PER MONTH |
| Name: | BKW8024S | Material: | Cast Iron |
|---|---|---|---|
| Air Capacity: | 45.01m3/Min | Pressure: | 60Kpa |
| Motor Power: | 75KW | Blower RPM: | 1000 |
| Outlet Size: | DN200(8") | Cooling Type: | Water |
| Voltage&Frequency: | 380/400/415/440V, 3PHASES, 50/60HZ | Application: | Water Treatment,Wastewater Treatment |
| Highlight: | 1500rpm Three Lobe Roots Blower,Water Cooling Three Lobe Roots Blower,30kw roots rotary lobe blower |
||
Such as:
Water treatment: Roots blowers find applications in water treatment facilities for processes such as aeration in water and wastewater treatment, ozone generation for disinfection, and providing air for dissolved air flotation systems.
Wastewater treatment: Roots blowers are commonly used in wastewater treatment plants for aeration purposes. They provide the necessary air supply for the biological treatment processes, such as activated sludge systems, where microorganisms break down organic matter in the wastewater.
Aquaculture and fish farming: Roots blowers are utilized in aquaculture and fish farming systems for aeration and oxygenation of water. They help maintain optimal dissolved oxygen levels for aquatic organisms, promoting their growth and survival.

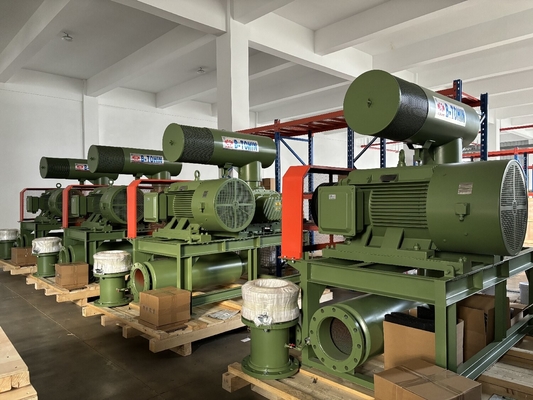

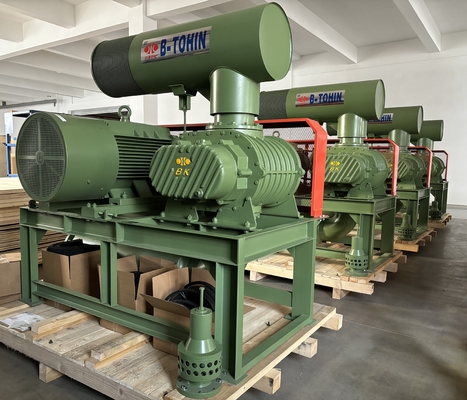

Water Cooling Type Three Lobe Roots Blower Bkw8024 , Durable Aeration Blower
About BKW
The screw blower may look similar to a roots blower, however, it functions differently. The roots blower acts like a pump for the air as it goes into the motor, whereas the screw blower is more like an air compressor in how it forces the atmosphere into the engine.
BKW seires Roots Blower inherits most components from BK series, it adopts water cooling in bearing cover, which can reduce the temperature of bearing when working and prolong the longevity, also it has a larger pressure capability.
Specifications:
| Model | BKW8024S |
| Air capacity | 31.89m3/Min-50.67m3/Min |
| Discharge differential pressure | 60-100KPA |
| Rotary speed | 800rpm-1100rpm |
| Motor type | 55KW-90KW 380/400/415/440V, 3PHASES, 50/60HZ |
| Motor brand | Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
| Installation type | Standard: horizontal type. Vertical type available for your option |
| N.W. of blower without motor | 1120 kg |
| Packing size Approx. | 2.35*1.65*2.60m (length*width*height) |
| Features | 1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft for stable and smooth running 4. Adopt imported oil seals made from fluoric rubber with high wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption. |
Description of blower parts:
| Casing | Made of Casting iron HT200 ENDLESS structure adopted for improving efficiency, one-time machined by CNC center with high precision |
| Rotor (Shaft and impeller) | Made of Casting iron QT500 The impeller and shaft is cast as an integral part. Adopting NC planer for machining to achieve high precision |
| Gear end bearing | Made of GCr15 NSK brand, double-row angular contact ball bearing, capable of supporting axial load |
| Drive end bearing | Made of GCr15 NSK brand, cylindrical roller bearing |
| Gear | Made of 20CrMnTi Bevel structure for more smoothly running |
| Oil seal | Made of fluoro rubber bears high temperature and has a longer life. |
Working Principle
Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.
Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.
Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.
