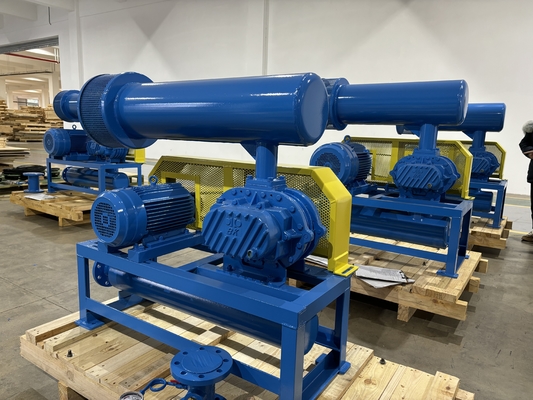

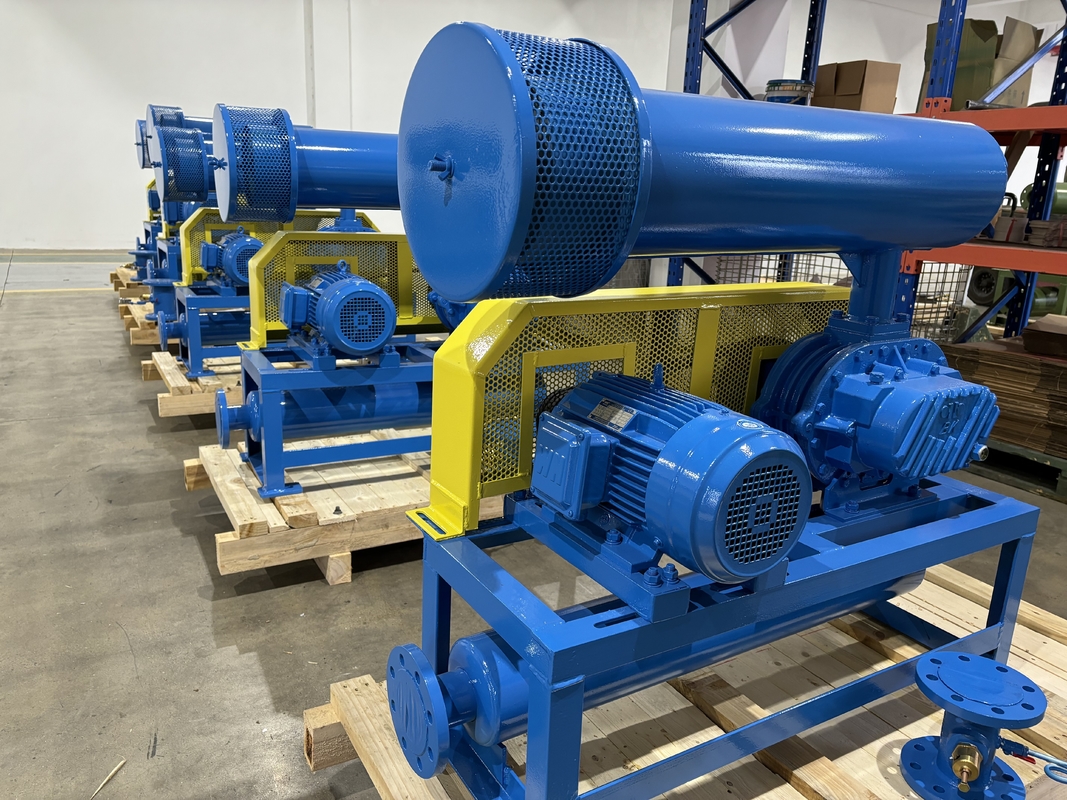

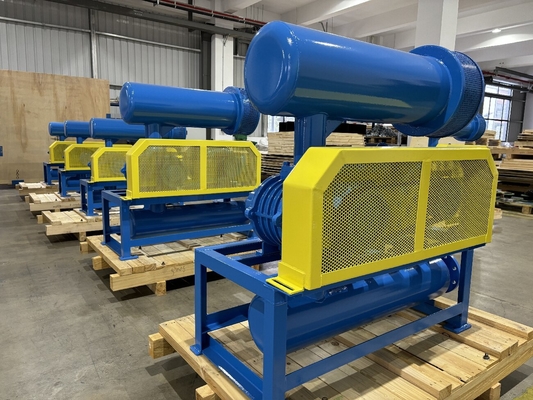

DN200 30-132 kw 10-80 kpa Roots Rotary Lobe Blower Air Cooling Blue Colour

Product Details:

Place of Origin:	China
Brand Name:	BC
Certification:	ISO9001/ISO14001
Model Number:	BC9020S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 7500-10000 / SET
Packaging Details:	Export standard wooden case
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	50 SETS per month

Contact Now

Detailed Product Description

Type:	Positive Displacement, Roots Type, Air Conveying	Air Capacity:	42.58-85.85 M³/min
Discharge Differential Pressure:	10-80KPA	Motor Power:	30-132KW
Discharge Bore:	DN200 (8”)	Cooling Type:	Air
Application::	Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement, Pipe Clearing, Power Plant, Etc.	Main Materials:	Cast Iron
Highlight:	dn250 roots rotary lobe blower , 80kpa roots rotary lobe blower , air cooling roots rotary lobe blower

DN200 Three Lobe Roots Blower, 30-132KW, 80KPA air cooling rotary blower

BC blowers have improved full-adiabatic efficiency as well as volumetric efficiency and provide wonderful air

capacity vs.pressure characteristics.

Model	BC9020S
Air capacity	42.58-85.85m³/min
Discharge differential pressure	10-80KPA
Rotary speed	1000-1600rpm
Motor type	30KW-132KW 380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: horizontal type. Vertical type available for your option
Color	Customized, standard of RAL6011
N.W. of blower without motor	800 kg
Packing size Approx.	2.621.782.45m (lengthwidthheight)

Features:

1.BC three-lobe blowers needn't water coolant within 80kpa rising pressure.

2. The helical gears are adopted for much more stable conveying.

3. By adoption of an special profile of rotor,the clearance between the rotors can be held to be constant,

which makes the efficiency even higher.

4. The precision of rotors is fully controlled by mass production on precise NC machines.In addition,

the rotors are almost free of vibrations since they are dynamically balanced in the fabrication stage

already.

5. The helical timing gears are adopted not only to extend the use life but also to make noise lower.

Parameter sheet

Model	Port Dia. (mm)	Speed	Inlet capacity (m3/min)and shaft power (KW)
			0.1kgf/cm2		0.2kgf/cm2		0.3kgf/cm2		0.4kgf/cm2		0.5kgf/cm2		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2
			1000mmH2O		2000mmH2O		3000mmH2O		4000mmH2O		5000mmH2O		6000mmH2O		7000mmH2O		8000mmH2O
			0.01Mpa		0.02Mpa		0.03Mpa		0.04Mpa		0.05Mpa		0.06Mpa		0.07Mpa		0.08Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BC9020S	200(8")	1000	51.88	24.34	49.92	31.03	48.41	37.73	47.14	44.42	46.02	51.12	45.01	57.82	43.6	65.83	42.58	72.66
		1050	54.71	25.55	52.75	32.58	51.24	39.61	49.97	46.65	48.85	53.68	47.84	60.71	46.91	67.74	46.05	74.77
		1150	60.37	27.99	58.41	35.69	56.9	43.39	55.63	51.09	54.51	58.79	53.5	66.49	52.57	74.19	51.71	81.89
		1250	66.03	30.42	64.07	38.79	62.56	47.16	61.29	55.53	60.18	63.9	59.17	72.27	58.24	80.64	57.37	89.01
		1400	74.52	34.07	72.56	43.44	71.06	52.82	69.79	62.19	68.67	71.57	67.66	80.94	66.73	90.32	65.86	99.69
		1500	80.18	36.5	78.22	45.38	76.72	56.59	75.45	66.64	74.33	76.68	73.32	86.72	72.39	96.77	71.52	106.8
		1600	85.85	38.94	83.88	49.65	82.38	60.36	81.11	71.08	79.99	81.79	78.98	92.51	78.05	103.2	77.19	113.9

Structure of blower main body

DN200 30-132 kw 10-80 kpa Roots Rotary Lobe Blower Air Cooling Blue Colour 0

No.	Part Name	Qty.	No.	Part Name	Qty.	No.	Part Name	Qty.
1	Footing	2	9	Left end cover	1	17	Oil tank	1
2	Hexagon bolt	4	10	Round pin	4	18	Gear	2
3	Antidust seal	1	11	Casing	1	19	Key	2
4	Drive impeller	1	12	Oil seal	4	20	Axial sleeve	2
5	Bearing	2	13	Right end cover	1	21	Bearing	2
6	Driven impeller	2	14	Bolt	16	22	Bearing plate	2
7	Dust cup	1	15	Breather	1	23	Adjustable pad	several
8	Grease nipple	2	16	Bolt	8	24	Magnetic nut	1
