|Place of Origin:||Yixing, Jiangsu, China|
|Certification:||ISO9001 / ISO14001|
|Minimum Order Quantity:||1 set|
|Price:||USD 1550-2400 per set|
|Packaging Details:||wooden case|
|Delivery Time:||15 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||150 sets / month|
|Material:||Cast Iron||Pressure:||10 Kpa - 80 Kpa|
|Colour:||Customizable||Port Dia:||125 ( 5'' )|
|Speed:||850 - 1800 Rpm||Weight:||371-625 Kg|
1800 rpm high pressure roots blower,
water treatment high pressure roots blower,
food transportation roots type blower

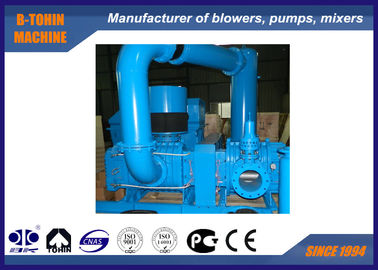

850-1800 RPM High Pressure 3 Lobe Blower For Water Treatment And Food Transportation
1 Company brief
By advanced production & test equipment, technology and management method introduced from abroad, by
advanced management software, B-Tohin Machine ( Jaingsu ) Co.,Ltd. is committed to the production of high
efficient and energy-saving blowers. And it's our sincere wish that we can help you in your success by
supplying high-quality products and reliable service.
2 BC Type Performance Parameters Sheet
3 Structure Drawings
1) Working smoothly as helical timing gears is adopted.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can increase the bearing operation life.
4) It is low noise, vibration and energy consumption.
4 Standard Accessories

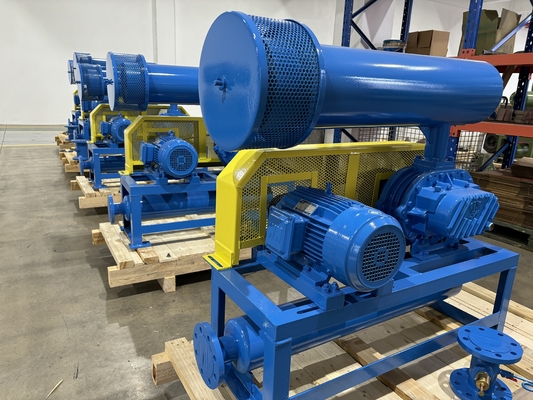

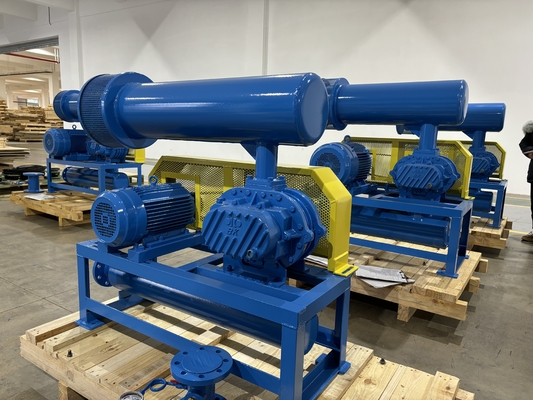

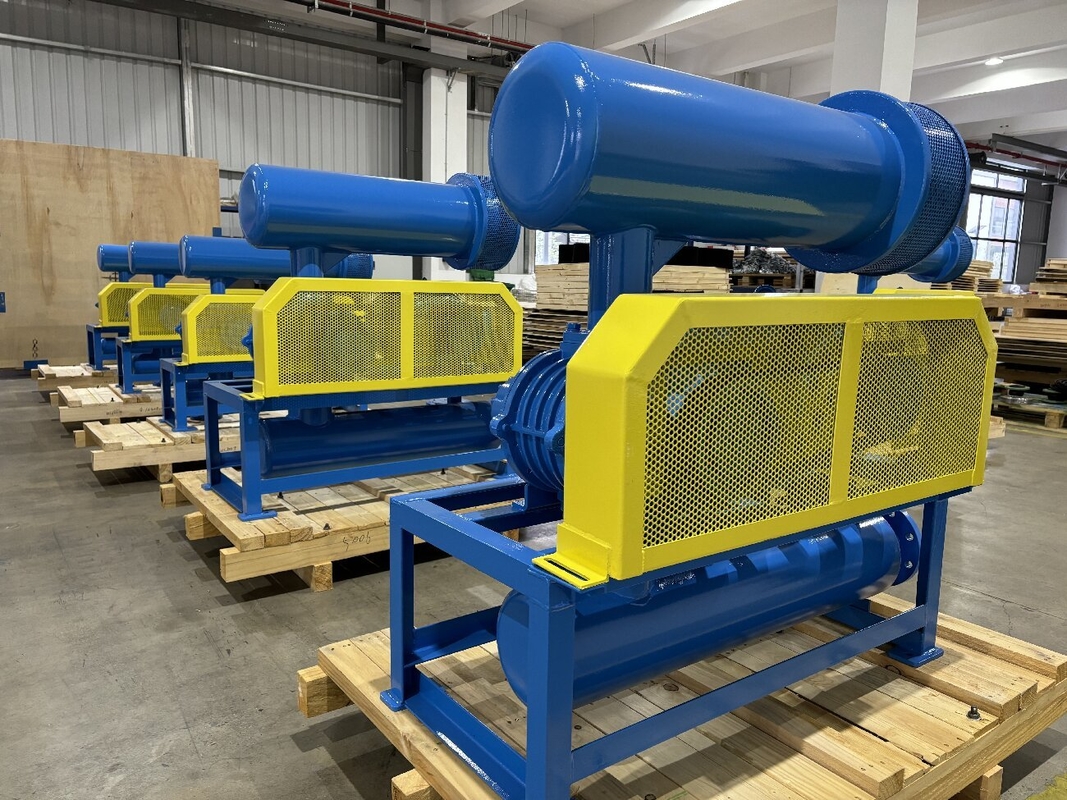

1)Discharge Silencer ( vertical airflow )
2) Flexible Joint
3) AD Type check valve with machined surface sealed
4) Electricity Cabinet can be designed according to the customer's request
5 Optional Accessories
Multi- function YYFZ-L Type Enclosure
1) Using steel and sponge for sound insulation, and with sound absorbing material embedded in it, and can reduce noise effectively.
2) There four doors, and each side can open throughly, which is convenient for daily maintence.
3) Adopting detachable steucture, which is easy for transport.
4) Compact structure for less floor space.
Remarks: An additional custom anti silencer enclosures, control integrated services.
Outline Dimension Sheet of enclosures
YUSV Type unloaded start valve
1) Being mechanical structure and reasonable design, without conk out.
2) There is no need for bypass and electric executive system.
3) It substitute for the security valve, and protect startup in severe condition.
4) Being easy mounting and maintenance.
1. What's the information should I provide when inquiry?
A: Air capacity
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
