Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | B-TOHIN |
| Certification: | ISO9001 / ISO14001/ISO45001 |
| Model Number: | BK5006 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD 2000- USD 4560 |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 work days |
| Supply Ability: | 300 sets per month |
| Material: | Cast Iron | Name: | Three Lobe Roots Blower |
|---|---|---|---|
| Air Volume: | 1.01m3/min | Pressure: | 0.01Mpa |
| Motor Power: | 1.5KW | Outlet Size: | DN40(1.5") |
| Blower RPM: | 1500 | Shaft Power: | 0.85KW |
| Voltage: | 380V/400/440V/According To Customer Requirements | Frequency: | 50HZ/60HZ |
| Application: | Waste Water Treatment | Installation Type:: | Horizontal Or Vertical |
| High Light: | Fourth Generation three lobe roots blower,DN100 three lobe roots blower,DN100 3 lobe roots blower |
||
China products/suppliers.Ce, ISO9001, SGS Approved Roots Blower 10-80kpa Roots Type Blower BK5006

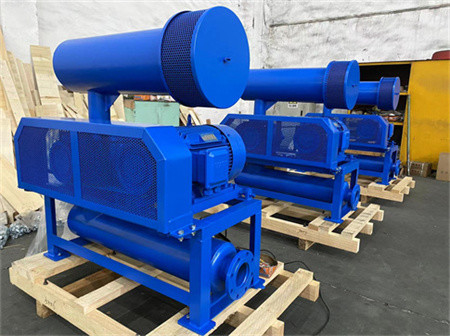

About BK Three Lobes Roots Blower
BK series roots blower, with the intergral structure of impeller and shaft, has a waide application in environmental protection, electric power, architecture, gas supply and etc.
Main Chrarcteristics:
1) Working smoothly as helical timing gears is adopted.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can incresase the bearing operation life.
4) It is low noise, vibration and energy consumption.
Specifications:
| Model | BK5006 |
| Air capacity | 4.6m3/Min-10.52m3/Min |
| Discharge differential pressure | 10-80KPA |
| Rotary speed | 850rpm-2000rpm |
| Motor type2.2 | 5.5KW-22KW 380/400/415/440V, 3PHASES, 50/60HZ |
| Motor brand | Standard: Wannan motor Siemens and ABB motor for your option |
| Installation type | Standard: horizontal type. Vertical type available for your option |
| N.W. of blower without motor | 359-519kg |
| Packing size Approx. | 1.67*0.77*1.62/1.52*1.07*1.77m (length*width*height) |
| Features | 1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft avoiding shortcomings of the split structure blower 4. Adopt imported oil seals made from fluoric rubber with great wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption. |
Parameter
Features:
1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller superior to split structure, more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of good wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.
Working Principle
Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.
Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.
Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
