Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | Jiangsu China |
| Brand Name: | BK |
| Certification: | ISO9001 / ISO14001/ISO45001 |
| Model Number: | BK5009 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD 100- USD 5000 |
| Packaging Details: | wooden case |
| Delivery Time: | 20 work days |
| Supply Ability: | 2000 sets per month |
| Name: | Three Lobes Roots Blower | Material: | Cast Iron |
|---|---|---|---|
| Air Volume: | 10m3/min | Pressure: | 50Kpa |
| Motor Power: | 15KW | Outlet Size: | DN100 |
| Blower RPM: | 1350 | Voltage&Frequency: | 380V/400/415V/440V&50Hz/60Hz |
| Application: | Pneumatic Conveying | FORM E: | Yes |
| Colour: | Customized Colour | Packaging Details: | Wooden Case+ Plastic Film |
| High Light: | DN100 three lobes roots blower,RPM1350 three lobes roots blower,Pneumatic conveying three lobes roots blower |
||
Such as:
Pneumatic conveying: Roots blowers are utilized in pneumatic conveying systems to transport bulk materials, such as powders, grains, and granular materials. The blowers create air pressure to move the materials through pipelines or ducts, facilitating their transfer from one location to another.
Biogas production: Roots blowers are commonly used in biogas production facilities. They are used to provide air or oxygen for the biological digestion process, where organic waste materials are broken down by anaerobic bacteria to produce biogas, a renewable energy source.
Centralized vacuum systems: Roots blowers are employed in centralized vacuum systems for industrial facilities and manufacturing plants. These systems provide centralized suction power for various applications such as cleaning, material handling, and waste removal.
China products/suppliers.Ce, ISO9001, SGS Approved Roots Blower 10-80kpa Roots Type Blower BK5009

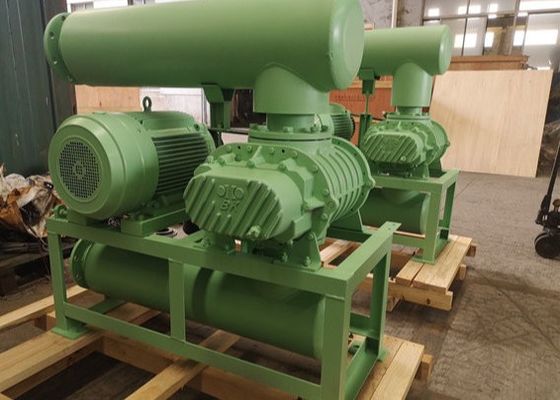

About BK Three Lobes Roots Blower
BK series roots blower, with the intergral structure of impeller and shaft, has a waide application in environmental protection, electric power, architecture, gas supply and etc.
Main Chrarcteristics:
1) Working smoothly as helical timing gears is adopted.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can incresase the bearing operation life.
4) It is low noise, vibration and energy consumption.
Specifications:
| Model | BK4009 |
| Air capacity | 4.89-17.86m3/Min |
| Discharge differential pressure | 10-50Kpa |
| Rotary speed | 1500rpm |
| Motor type | 3-22KW 380/400/415/440V, 3PHASES, 50/60HZ |
| Motor brand | Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
| Installation type | Standard: horizontal type. Vertical type available for your option |
| N.W. of blower without motor | 89kg |
| Packing size Approx. | 1.67*0.77*1.62m (length*width*height) |
| Features | 1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft avoiding shortcomings of the split structure blower 4. Adopt imported oil seals made from fluoric rubber with great wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption. |
Features:
1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller superior to split structure, more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of good wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.
Working Principle
Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.
Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.
Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
