Place of Origin: | China |
Brand Name: | BK |
Certification: | ISO9001 / ISO14001/CE |
Model Number: | BK8024S |
Minimum Order Quantity: | 1 SET |
---|---|
Packaging Details: | EXPORT WOODEN CASE |
Delivery Time: | 20 WORK DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 200 PER MONTH |
Name: | Three Lobe Roots Blower | Color: | White. Blue. Green |
---|---|---|---|
Air Capacity: | 65m3/Min | Main Materials: | Cast Iron |
Application: | Pneumatic Conveying | Cooling Type: | Air |
Discharge Bore: | DN200 (8'') | Type: | Positive Displacement, Roots Type, Air Conveying |
Blower RPM: | 1400 | Voltage&Frequency: | 380V/400/415V/440V&50Hz/60Hz |
Highlight: | Cast Iron Three Lobe Roots Blower,Pneumatic Conveying Three Lobe Roots Blower,Cast Iron 3 Lobe Roots Blower |

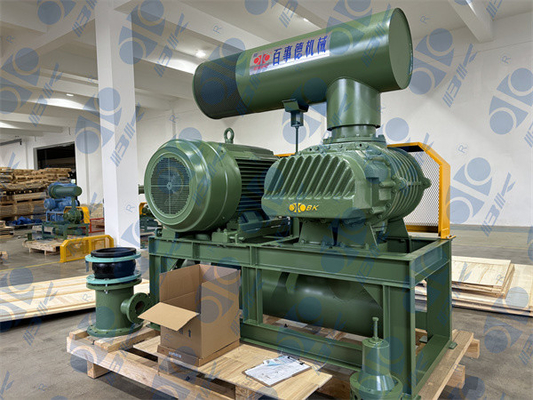

BK6015 Cast Iron Three Lobe Roots Blower For Pneumatic Conveying
Features:
1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller superior to split structure, more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of perfect wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.

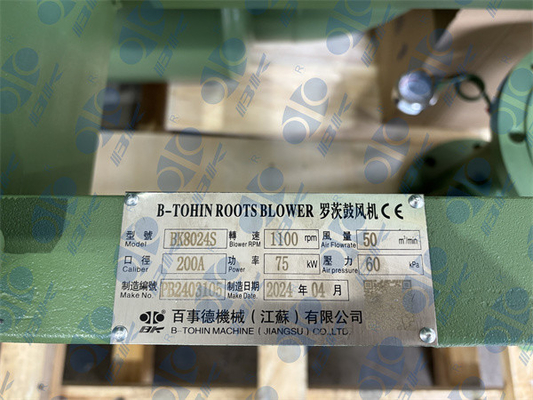

Model | BK8024S |
Air capacity | 65m3/Min |
Discharge differential pressure | 60KPA |
Rotary speed | 1400rpm |
Motor type | 90KW 380/400/415/440V, 3PHASES, 50/60HZ |
Motor brand | Standard: Siemens Beide or Wannan motor |
Installation type | Standard: horizontal type. Vertical type available for your option |
Features | 1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft avoiding shortcomings of the split structure blower 4. Adopt imported oil seals made from fluoric rubber with great wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption. |
Working Principle:
Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.
Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.
Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

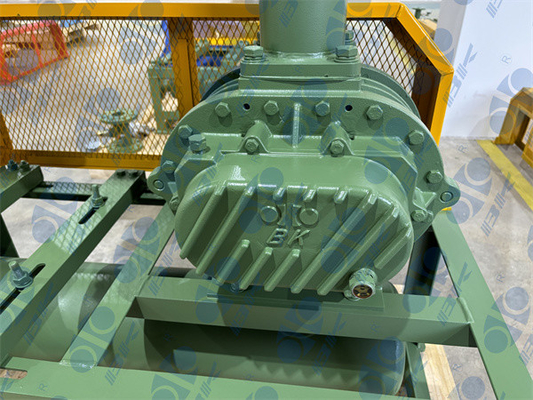

Blower Structure:
Application:
