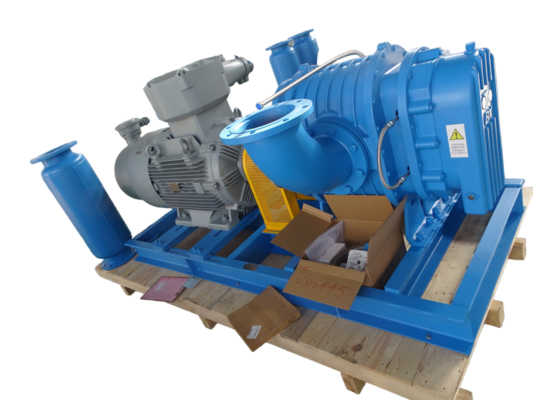

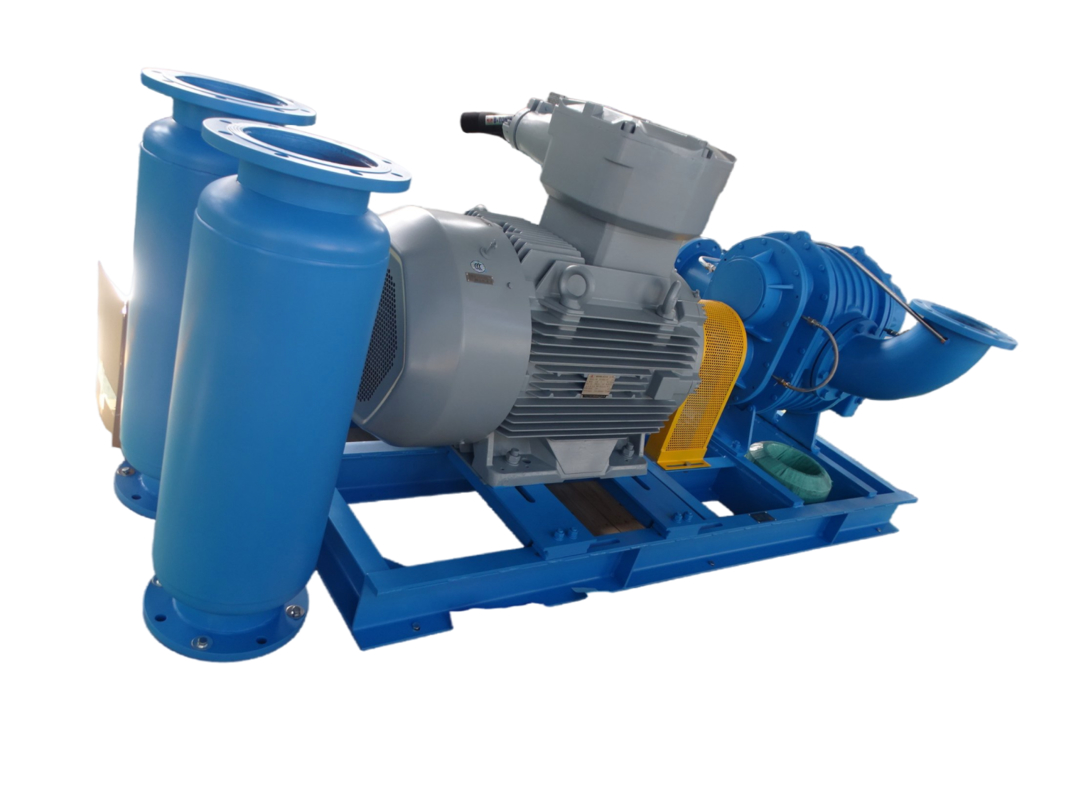

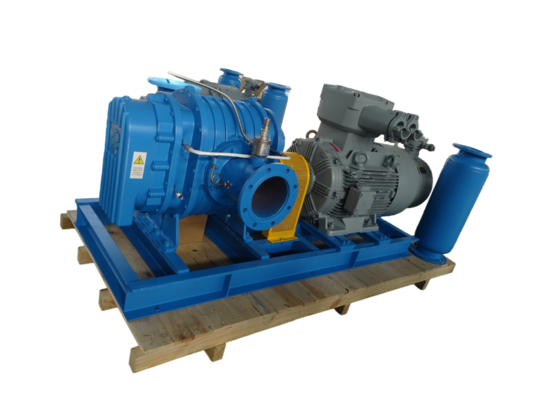

BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower

BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower

BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower
BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower
BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001
Model Number: BX65
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Exported wooden case
Delivery Time: 25 working days
Supply Ability: 500 Sets/Month
Contact Now
Detailed Product Description
Model: BX65 Port Dia.: 65 (2.5")
Speed: 850-1850 RMP Airflow: 1.72-6.57m³/min
Shaft Power: 0.97--10.23kw Pressure: 10-70 Kpa
Impeller Material: Stainless Steel Applications: Heat Treatment,pipe Clearing,special Gas
Advantages: Easy Installation, Intelligent Control, Low Noise,Small Vibration Motor Power: 3-15KW
Weight: 220kg Foundation Bolts: 4-M16*300
Highlight:

Stainless Steel Roots Blower

,

Stainless Roots Blower

,

2.5" Roots Blower

BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower

1,The main components of BX Roots blower are precisely machined from stainless steel.

2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.

3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.

4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.



BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower 0







Product Parameters



Performance Parameters Sheet:

Type
(MM)Port Dia		 Speed Inlet airflow(m³／min) and shaft power(KW) at different conditions
0.1kgf/c㎡ 0.2kgf/c㎡ 0.3kgf/c㎡ 0.4kgf/c㎡ 0.5kgf/c㎡ 0.6kgf/c㎡ 0.7kgf/c㎡
1000mmH₂O 2000mmH₂O 3000mmH₂O 4000mmH₂O 5000mmH₂O 6000mmH₂O 7000mmH₂O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa
rpm m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW
BX65 65(2.5") 850 2.67 0.97 2.39 1.6 2.19 2.44 2.01 2.76 1.86 3.36 1.72 3.96
1000 3.25 1.14 2.98 1.88 2.77 2.87 2.6 3.24 2.44 3.95 2.31 4.66
1150 3.84 1.31 3.56 2.16 3.36 3.3 3.18 3.73 3.03 4.54 2.89 5.36 2.76 6.36
1250 4.23 1.43 3.95 2.35 3.75 3.59 3.57 4.06 3.42 4.94 3.28 5.82 3.15 6.91
1350 4.62 1.54 4.34 2.54 4.14 3.87 3.96 4.38 3.81 5.33 3.67 6.29 3.54 7.47
1500 5.2 1.71 4.93 2.82 4.72 4.3 4.55 4.87 4.39 5.93 4.26 6.99 4.13 8.3
1600 5.59 1.82 5.32 3.01 5.11 4.59 4.94 5.19 4.78 6.32 4.65 7.45 4.52 8.85
1750 6.18 2 5.91 3.29 5.7 5.02 5.52 5.68 5.37 6.91 5.23 8.15 5.1 9.68
1850 6.57 2.11 6.3 3.48 6.09 5.31 5.91 6 5.76 7.31 5.62 8.62 5.5 10.23




Outline Dimension


BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower 1BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower 2


Outline Dimension Sheet


Model Port Dia.(DN) Motor Power (kw) A B B1 C D E F G H R I J K L M N P Foundation Bolts Weight
BX65 2.5" 3~15KW 1000 964 0 150 322 626 319 362 1285 137 18 304 190 530 115 815 18 4-M16x300 220


Sample Use
BX65 2.5'' 1.72-6.57 m³/min Stainless Steel Roots Blower 3



FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.



Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.



Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.



Q4: What is your warranty?
Our warranty is 12 months after received the machine.



Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.



Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.



Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.



Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
