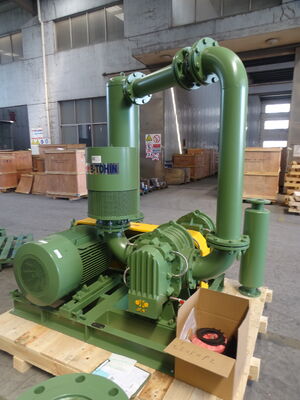

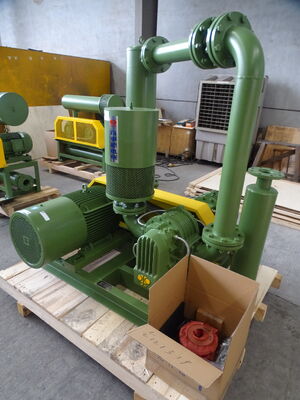

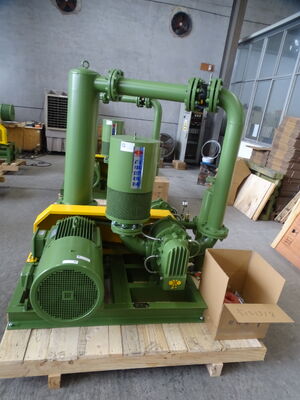

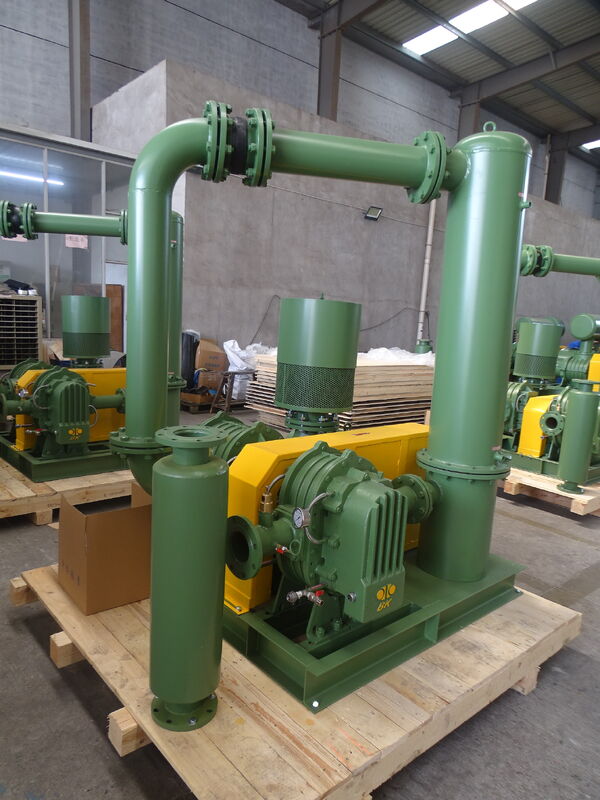

BKD High Pressure ,1.0-1.5 kgf/cm² Pressure, Water Cooling , Two Stages, Three Lobe Roots Air Blower

1 BKD Type  Roots Blower

The BKD two-stage blower is composed of two BKW blowers in series,which can exceed the pressure limit of a single blower.The high temperature gas discharged by the primary blower is cooled by a middle-cooler before it enters into the secondary blower so that its temperature will not exceed the specified value,thus ensuring the good operation of the secondary blower.

BKD Series is a dual stage roots blower,which has two BKW blowers in series,and exceeds the upmost pressure comparing with single one, also there is a middle cooling system between the first and the second stage,it ensures the standard temperature of the airflow to the second blower.

2 Product Specifications

3 Inlet airflow ( m3 / min ) and shaft power ( KW ) at different conditions

3 Boundry dimension of BKD-1000

BKD  Outline Dimension Sheet                         Unit:mm Type Port Dia Motor power A B C D E F G H I J K L M N 0 n Q×h BKD-1000 65(2.5") 11～30 1450 1500 340 450 200 145 180 / 1000 25 / 1050 1100 1050 805 4 M16×300 BKD-2000 80(3") 15～45 1830 1880 418 530 228 180 200 / 1050 25 / 1160 1210 1150 950 4 M16×300 BKD-3000 100(4") 30~45 1970 2020 508 600 280 190 280 600 1200 25 / 1350 1400 1250 1050 6 M16×400 55~75 650 1300 25 1400 1450 1350 BKD-4000 150(6") 55~90 2050 2200 508 840 275 200 295 720 1440 25 825 1650 1700 1480 1240 8 M16×400 110 770 1540 25 860 1720 1770 1560 BKD-5000 200(8") 75～200 2150 2200 570 1140 295 300 280 875 1750 25 905 1810 1860 1800 1370 8 M16×400 BKD-6000 250(10") 132～200 2350 2800 620 1260 355 335 310 1020 2040 25 975 1950 2000 2100 1500 8 M16×400 220~280(6kv) 1265 2650 25 1040 2080 2130 2580 BKD-7000 300(12") 160~200 3120 2960 1000 1480 465 330 330 1205 2410 25 1150 2300 2350 2460 1800 8 M16×400 220~250(6kv) 1375 2750 25 2800 280~400(6kv) 1435 2870 25 2920 Remark: Size A is for reference,but it will not exceed size B.

4 Other accessaries

(1) YUSV Type unloaded start valve

(2) Multi-function BDFZ-L Type Enclosure

• Unload start valve working principle

This valve is mainly used in the pipeline for blower, compressor and screw type blower. When blower start,

the air will flow through the valve, and the blower will working without load, after a while, the valve will close

because the pressure difference in the pipeline and out, so it realize start without load for the blower, and

can impacting the equipment and motor.

• Main charcateristics of unload start valve

1. Being mechanical structure and reasonable design, without conk out.
2. There is no need for bypass and electric executive system. Being low cost.
3. It substitute for the security valve, and protect startup in severe condition.
4. Being easy mounting and maintance.

• Main charcateristics of enclosure

1. Using steel and sponge for sound insulation, and with sound absorbing material embeded in it, and can reduce noise effectively.
2. There four doors, and each side can open thoroughly, which is convenient for daily maintanance.
3. Adopting detachable structure, which is easy for transport.
4. Compact structure for less floor space.
