Key Features
Advanced Impeller Design: Three-dimensional semi-open mixed-flow impeller helps reduce flow losses and improve aerodynamic performance.
Inlet Guide Vane Adjustment: Allows airflow regulation to accommodate different operating conditions.
High-Speed Gear Transmission: Precision helical gears support stable high-speed operation.
Compact Structure: Space-saving design facilitates installation and equipment layout.
Reliable Operation: Specialized tilting-pad bearings support high-speed rotor operation.
Automated Control: Control options can be configured according to project requirements.
Applications
Wastewater treatment and sewage aeration
Cement and building materials industries
Pneumatic conveying systems
Power plants and industrial process air supply
Suitable non-corrosive gas applications, subject to model specifications

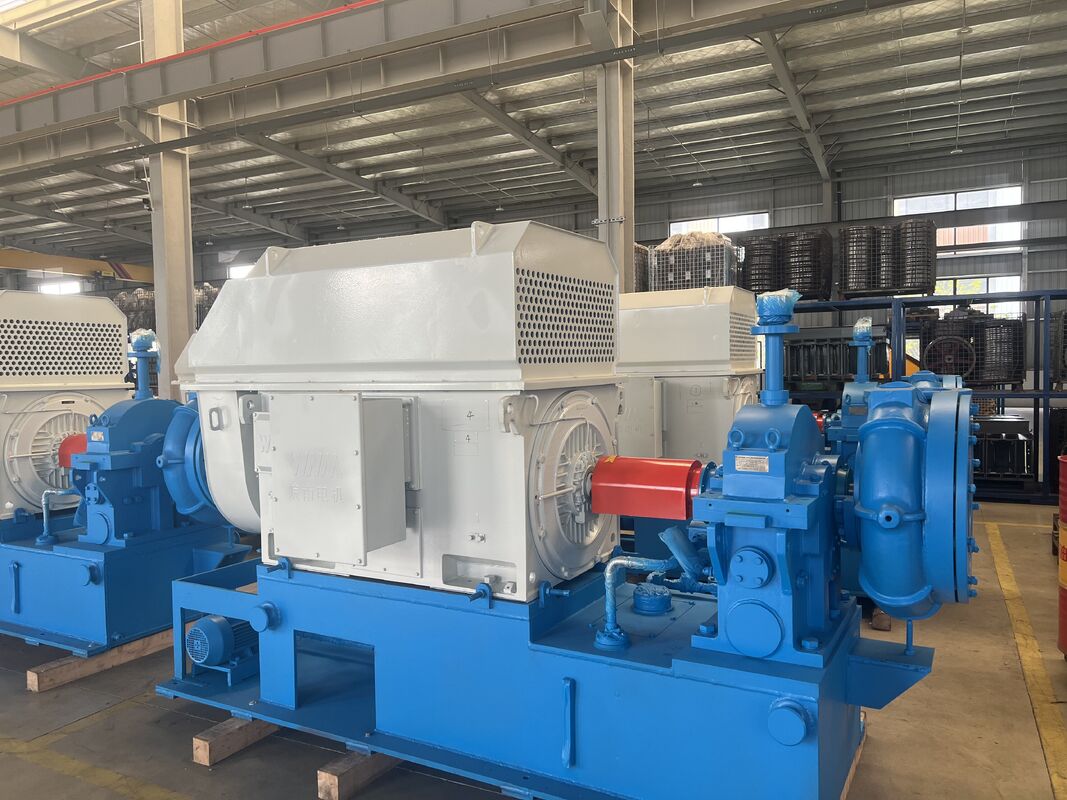

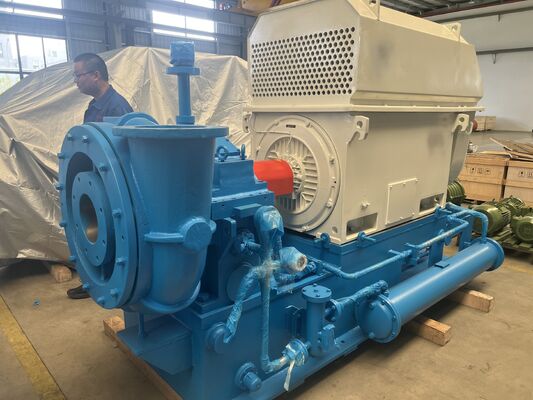

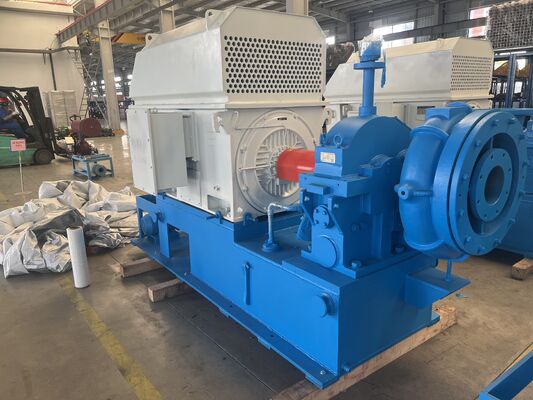

Blower structure
Gs series centrifugal blower features single-stage cantilever,axial inlet and radical discharge structure. Air comes into the suction pipe and the inlet guide vane device from the inlet filter setting.Main driving motor is connected with the coupling and the step-up box.When start,
the step-up gear drive the ternary mixed semi-open impeller to make gas for power,and the gas discharge out through vane-less diffuser and volute chamber.
GS Series Blower Performance Curve
GS Series centrifugal blower featurers single-stage cantilever,axial inlet and radical discharge structure. Air comes into the suction pipe and the
inlet guide vane device from the inlet setting. Main driving motor is connected with the coupling and the step-up box. When start, the step-up gear
drive the ternary mixed semi-open impeller to make gas for power, and the gas discharge out through vane-less diffuser and volute chamber.
Blower control system
High grade automation,and reliable
Using self-turing intelligent instrument or programmable logic control (PLC) and man-machine conversation interface for the whole runing process, which can realize adjusting airflow automatic/ manual.GS series blower control system includes: blower,step-up box,motor,lubricant station,inlet
filter,air relief adjustable valve,shaft vibration ,anti-surge system,etc.It takes didital display touch screen control panel,and can process the full control and regulation through the corresponding software.Meanwhile, it can record various failures and dagnose the failures intelligently as well as
suggesting the cause of failures.
The pivotal components for the automatic control system are imported ones for ensuring the accuracy, reliability and easy maintenance of the control system.
Remote monitor
Control system can transmit the measured data through internet or GPRS emitter. Customers can login in our website(Http://www.bk.com.cn) to monitor the running condition; meanwhile, our company will monitor it periodically and send the important monitor point or abnormal information to
customers via short message or mail. This remote monitor system is a further guarantee for the safe running of blower.
Main characteristics
·Good aerodynamic performance: ternary semi-open mixed-flow impeller adopted for not easy to cause vortex and for small airflow loss.
·Adjusted by inlet guide vane, the efficiency curve of the unit is flat, and even under non-designed operating conditions,good energy-saving effect can be achieved.
·Compact structure,small floor area,easy operation.
·The impeller is made of high-strength aviation aluminum alloy, machined by imported five-coordinate linkage machining center with small curve error. It is of reliable pneumatic performance and high efficiency,while it can save15%-25% power comparing with most Roots blowers.
·Impeller and speed-up gear are of integral structure, which greatly reduces the mechanical loss.
·Helical type speed-up gear adopted for good stability, low vibration, low noise and long service life under high-speed running.
·Special tilting pad bearing: through special tilting pads, the product has a high stability when running under high speed.
·High degree of automatic control,good reliability.
