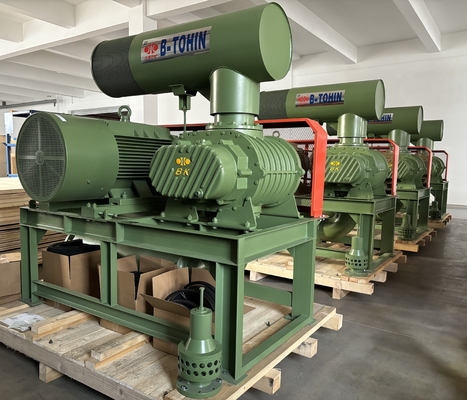

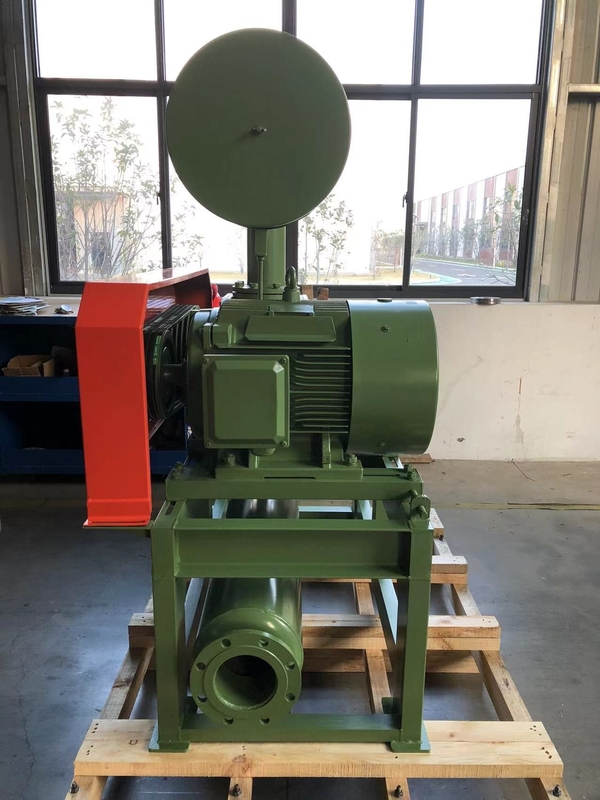

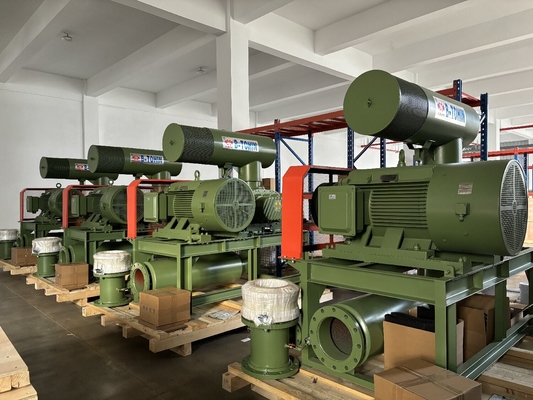

DN150 Roots Air Blower, oxygen generator for aqua farms blower

Low noise army green three Lobe Roots Blower , ozonizer , oxygen generator for aquaculture air blower

DN150 Roots Air Blower, ozonizer, oxygen generator for aqua farms blower


About BK-3

BK-3 roots blower is 3-lobe, positive and displacement blower. It is featured of simply configuration, smooth operation, stable performance, easy installing and maintenance.

Specifications


Features

• Two Rotors with lobe curve optimized ensures no leakage inside blower, improves blower’s efficiency.

• Radius-center distance ratio is narrowed and shaft’s diameter is enlarged. There's no deformation and collision will occur under higher load pressure as the blower’s strength is improved.

• Special hollow design of end-cover is used for making bearing cavity separated from gas chamber relatively, by which reduces the impact of inside high temperature gas on bearing cavity and lowers the bearing temperature.

• Deep groove ball bearing of high precision and low friction factor is selected for lowering operation noise. In addition, because of larger size bearing matched for enlarged shaft diameter, the bearing’s load capacity is enhanced and its service life is extended.

• A structure of 90 degree upper inlet and side outlet is adopted for convenient installation and maintenance. Different silencers are available for customers’ needs of saving floor space.

Applications

Parameter

Assembling drawing of blower package



Customers and Us

FAQ

Q1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

Q2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

Q3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

Q4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

Q6. What are your terms of payment?
TT 30% as the advance payment and TT 70% after inspection before shipping.
