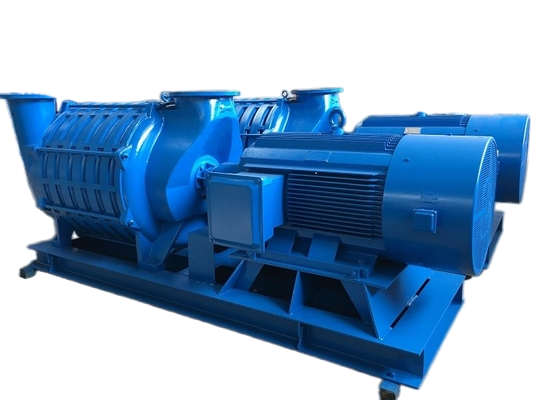

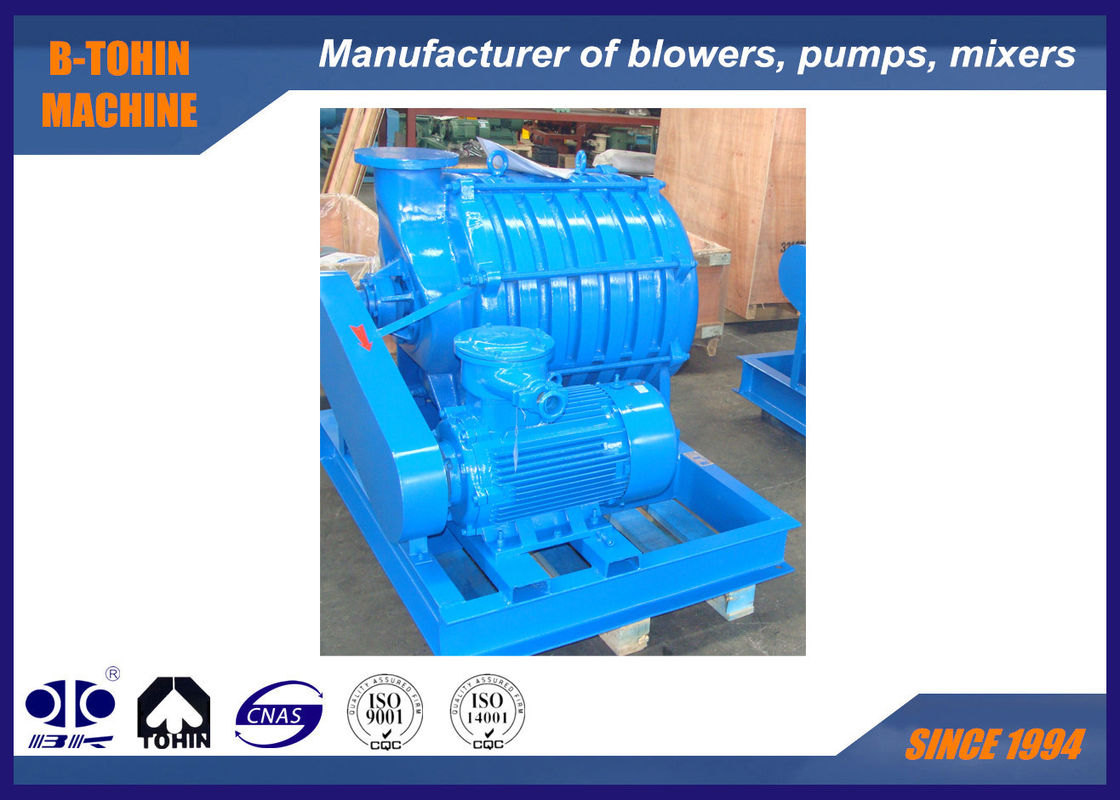

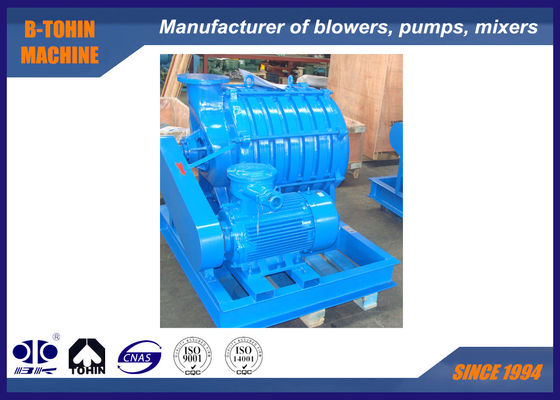

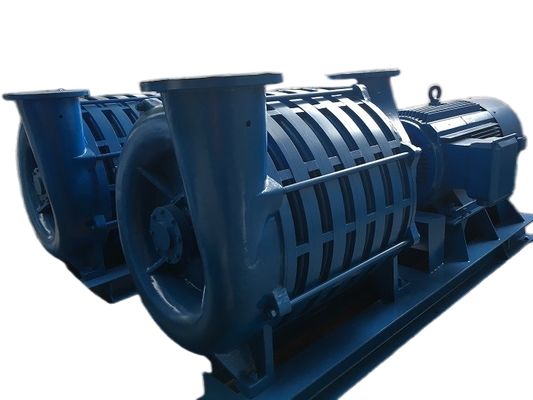

65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower

65KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor

About D series multi-stage centrifugal blower


• Conveying medium: clean air, natural gas, bio gas, methane, hydrogen, nitrogen, etc.
• Material of impeller: casting steel & aluminum alloy
• Cooling method: air cooling or water cooling
• Driving method:  belt transmission
• Application: Water and waste water treatment, vacuum dust cleaning, air knife drying, the flotation and separation, zinc plating and electroplating, oxygen filling, paper making and printing, and air combustion etc. fields.

Specifications

Features

Adopt optimizing design to the impeller and the blower casings to minimize the flow loss.

Use sealing diversion technology to the inlet of the impeller to improve the inlet flow ability.

Apply flow analysis technique to optimize the blower performance and improve the stage efficiency to above 78%.

Apply 3D Flow Impellers to some models of C blowers.

Carry out strict dynamic balance to get low vibration, low noise, and high reliability.

Select advanced blower structure design to make an easy installation, operation and maintenance.

Structure of blower main body

Assembling drawing of blower package

Standard supply of scope

1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve
