98KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m³/min

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	D55-（1.4-1.8）

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	20-40 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	10 SETS per month

Contact Now

Detailed Product Description

Air Capacity:	50m³/min	Discharge Differential Pressure:	98KPA
Motor Power:	55-110KW	Discharge Bore:	DN200(8”)
Cooling Type:	Water	Driven Type:	Coupling
Application:	Sewage Treatment, Smelting Furnace, Coal Preparation Plant, Mine Floatation, Chemical Gas, Vacuum Industry, And Other Gas Conveying, Etc.	Air Flow Direction:	Vertical And Horizontal For Customers' Option
Input Temp.:	20℃	Speed:	2950 R/min
Weight（No Motor)）:	2200-3200 KG
Highlight:	high pressure centrifugal blower , centrifugal air blower

90KW Multistage Centrifugal Blower, 70KPA air compressor for backwash, 50m3/min

About D series multi-stage centrifugal blower

D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.

Specifications

Model	Inlet Flow m³/min	Inlet Pressure kPa	Inlet Temperature℃	Set-up Pressure		Speed r/min	Shaft Power kW	Motor Power kW	Weight(Excluding Motor)KG
Model	Inlet Flow m³/min	Inlet Pressure kPa	Inlet Temperature℃	kPa	mmH₂O	Speed r/min	Shaft Power kW	Motor Power kW	Weight(Excluding Motor)KG
D55-1.4	55	98	20	39.2	4000	2950	50	55	2200
D55-1.5	55	98	20	49	5000	2950	60	75	2300
D55-1.6	55	98	20	58.8	6000	2950	71	90	2600
D55-1.7	55	98	20	68.6	7000	2950	79	90	3000
D55-1.8	55	98	20	78.5	8000	2950	90	110	3200

Features

Compact structure, elegant appearance, high stability, convenient installation and maintenance
Smooth operation
Low noise
Oil-free Blower
Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.
Easy to be adjusted
Inlet rings are equipped for impeller of every stage, and labyrinth seals are set between stages and at the two ends of housing for preventing gas leakage.
air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.
Two flow direction for option : vertical and horizontal
Blower and motor connected by coupling, other connection methods available according to different technique requirements.

Structure of blower main body

Assembling drawing of blower package

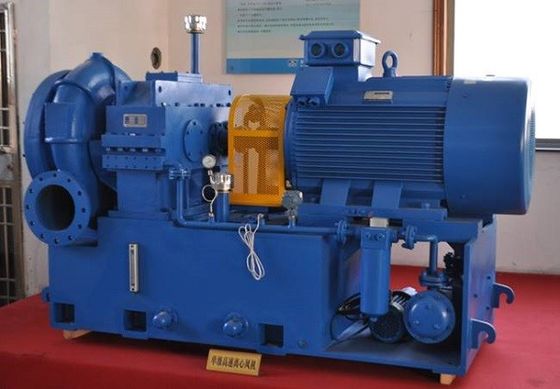

98KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m³/min 1

Standard supply of scope

1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve

Optional accessories:
1. outlet silencer
2. outlet butterfly valve (manual or eletrical)
3. release valve
4. release silencer
5. reducer
6. flexible joint
7. acoustic enclosure
8. control cabinet
