Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001/CE |
| Model Number: | BKW8016 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 SETS per month |
| Name: | Roots Rotary Lobe Blower | Type: | Positive Displacement Roots Type, Three Lobes |
|---|---|---|---|
| Air Capacity: | 14.63-43.50m3/min | Discharge Differential Pressure: | 60-100KPA |
| Motor Power: | 30-110W | Discharge Bore: | DN200(8”) |
| Driven Type: | Motor Driven, Connected By Belt And Pulley | Installation Type: | Horizontal, Vertical Available Also |
| High Light: | 100KPA roots blower,2400m3 / hour roots blower,three lobes roots style blower |
||

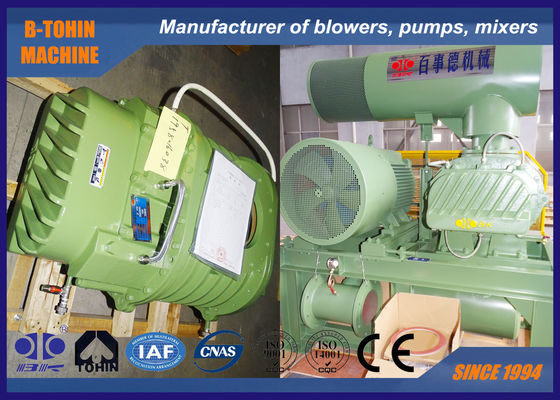

100KPA Roots Rotary Lobe Blower, capacity 2400m3/hour air blower
Roots blower is a kind of volumetric blower whose air capacity and revolution have formed a proportion. Each rotation of the three-lobe type blower needs three times of air suction & discharge of two-lobes. Compared to two-lobe type blower, three lobe roots blower have the characteristics of low air pulsation changes than two-lobe roots blowers.
Specifications
|
Model |
BKW8016 |
|
Air capacity |
14.63-43.50m3/min |
|
Discharge differential pressure |
60-100KPA |
|
Rotary speed |
700-1500rpm |
|
Cooling water volume |
15 l/min |
|
Motor type |
30-110KW |
|
Motor brand |
Standard: Siemens Beide or Wannan motor |
|
Installation type |
Standard: horizontal type. |
|
N.W. of blower without motor |
615kg |
|
Packing size Approx. |
2.1*1.4*2.26m (L*W*H) |
Features
1. Delivers completely oil-free air.
2. The specially designed rotor runs smoothly
3. Small change in capacity against change in pressure.
4. High efficiency due to special profile.
5. Compact structure is easy to fix and safe to use
Applications
1. petrochemical industry
2. construction materials
3. electric power, metallurgy
4. chemical fertilizer
5. paper making
6. aquaculture and wastewater treatment,
7. environmental protection industry
Parameter sheet
| Model | Speed | Inlet capacity (m3/min)and shaft power (KW) |
Cool- ing |
|||||||||
| 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | 0.9kgf/cm2 | 1.0kgf/cm2 | ||||||||
| 6000mmH2O | 7000mmH2O | 8000mmH2O | 9000mmH2O | 10000mmH2O | ||||||||
| 0.06Mpa | 0.07Mpa | 0.08Mpa | 0.09Mpa | 0.1Mpa | ||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | |
|
BKW 8016
Dia: DN200 (8") |
700 | 15.37 | 26.60 | 14.63 | 30.77 | 15 | ||||||
| 850 | 20.64 | 32.31 | 19.90 | 37.36 | ||||||||
| 1000 | 25.92 | 38.01 | 25.18 | 43.96 | 24.51 | 49.90 | 23.84 | 55.85 | 23.25 | 61.80 | ||
| 1150 | 31.19 | 43.71 | 30.45 | 50.55 | 29.79 | 57.39 | 29.12 | 64.23 | 28.52 | 71.07 | ||
| 1250 | 34.71 | 47.51 | 33.97 | 54.94 | 33.30 | 62.38 | 32.63 | 69.82 | 32.04 | 77.25 | ||
| 1400 | 39.98 | 53.21 | 39.25 | 61.54 | 38.58 | 69.87 | 37.91 | 78.19 | 37.31 | 86.52 | ||
| 1500 | 43.50 | 57.01 | 42.76 | 65.93 | 42.09 | 74.86 | 41.43 | 83.78 | 40.83 | 92.70 | ||
Structure of blower main body
Flow direction of cooling water
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. inlet silencer (with air filter)
3. outlet silencer
4. relieve valve
5. check valve
6. flexible joint
7. pressure gage
8. blower pulley and motor pulley
9. V-belt
10. belt cover
11. public base
12. motor
Optional auto-start valve
