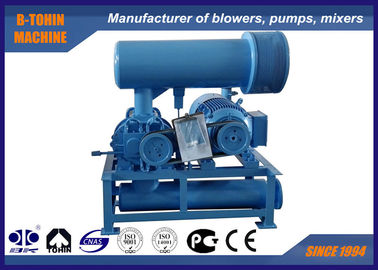

Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel

Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel

  • Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel
  • Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel
  • Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel
Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKW5003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 100 SETS per month
Contact Now
Detailed Product Description
Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
Air Capacity: 2.25-6.4m3/min Discharge Differential Pressure: 60-100KPA
Motor Power: 5.5-18.5W Discharge Bore: DN65(2.5”)
Driven Type: Motor Driven, Connected By Belt And Pulley Installation Type: Vertical, Horizontal Available Also
High Light:

high pressure blower

,

rotary positive blower





Air Roots Rotary Lobe Blower, DN65, maxiumum pressure 100KPA, aeration blower






About BKW

BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which
can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher
pressure application.




Specifications


Model

BKW5003

Air capacity

2.25-6.40m3/min

Discharge differential pressure

60-100KPA

Rotary speed

1000-2000rpm

Cooling water volume

4 l/min

Motor type

5.5-18.5KW
380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of blower without motor

181kg

Packing size Approx.

Packing case for blower: 1.3*0.95*0.75m (L*W*H)

Packing case for blower accessories: 1.21*0.53*0.47m (L*W*H)





Features

1. Improved type of BK series for achieving higher pressure

2. High temperature rising occurs under high pressure operation, water cooling system will solve the problem and protect bearings.






Parameter sheet



Model Speed Inlet capacity (m3/min)and shaft power (KW) Cooling
Water
0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2    0.9kgf/cm2 1.0kgf/cm2
6000mmH2O 7000mmH2O 8000mmH2O 9000mmH2O 10000mmH2O
0.06Mpa 0.07Mpa 0.08Mpa 0.09Mpa 0.1Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW L/min
BKW5003
Port Dia: DN65(2.5")
1000 2.38 4.68 2.25 5.56             4
1150 2.98 5.38 2.85 6.39 2.73 7.21 2.61 8.03
1250 3.38 5.85 3.25 6.95 3.13 7.84 3.01 8.73
1350 3.79 6.32 3.65 7.51 3.53 8.47 3.42 9.42
1500 4.39 7.02 4.26 8.34 4.14 9.41 4.02 10.47 3.91 11.54
1600 4.79 7.49 4.66 8.90 4.54 10.03 4.42 11.17 4.31 12.30
1750 5.40 8.19 5.26 9.73 5.14 10.97 5.03 12.22 4.92 13.46
1850 5.80 8.66 5.67 10.29 5.54 11.60 5.43 12.91 5.32 14.23
2000 6.40 9.36 6.27 11.12 6.15 12.54 6.03 13.96 5.92 15.38






Structure of blower main body

Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel 0




Flow direction of cooling water

Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel 1





Assembling drawing of blower package



Positive Displacement Roots Type Three Lobe Roots Blower for fertilizer , steel 2




Standard supply of scope

1. shaft blower

2. inlet silencer (with air filter)

3. outlet silencer

4. relieve valve

5. check valve

6. flexible joint

7. pressure gauge

8. pulley

9. V-belt

10. belt cover
11. blower base

12. electric motor
