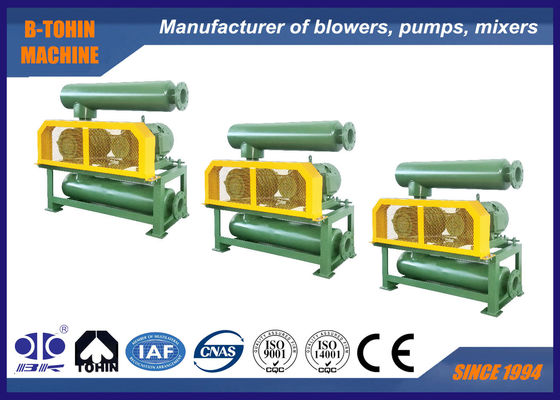

DN100 4“ 8.7m³/Min -60KPA 18.5KW Negative Pressure Air-cooling Roots Blower Pump

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV100H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	6.1-10.15m3/min
Discharge Differential Pressure:	-50KPA ~-65KPA	Motor Power:	11-15/18.5-22/30KW
Discharge Bore:	DN100(4")	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley	Speed:	1400-2050 RMP
Shaft Power:	9.76-16.58KW	Weight:	266kg
Highlight:	18.5KW Roots Blower Pump , DN100 Roots Blower Pump , -65KPA Roots Blower Pump

DN100 Roots type vacuum pump negative pressure blower, 6.1-10.15m3/min, -65KPA, 11-15KW

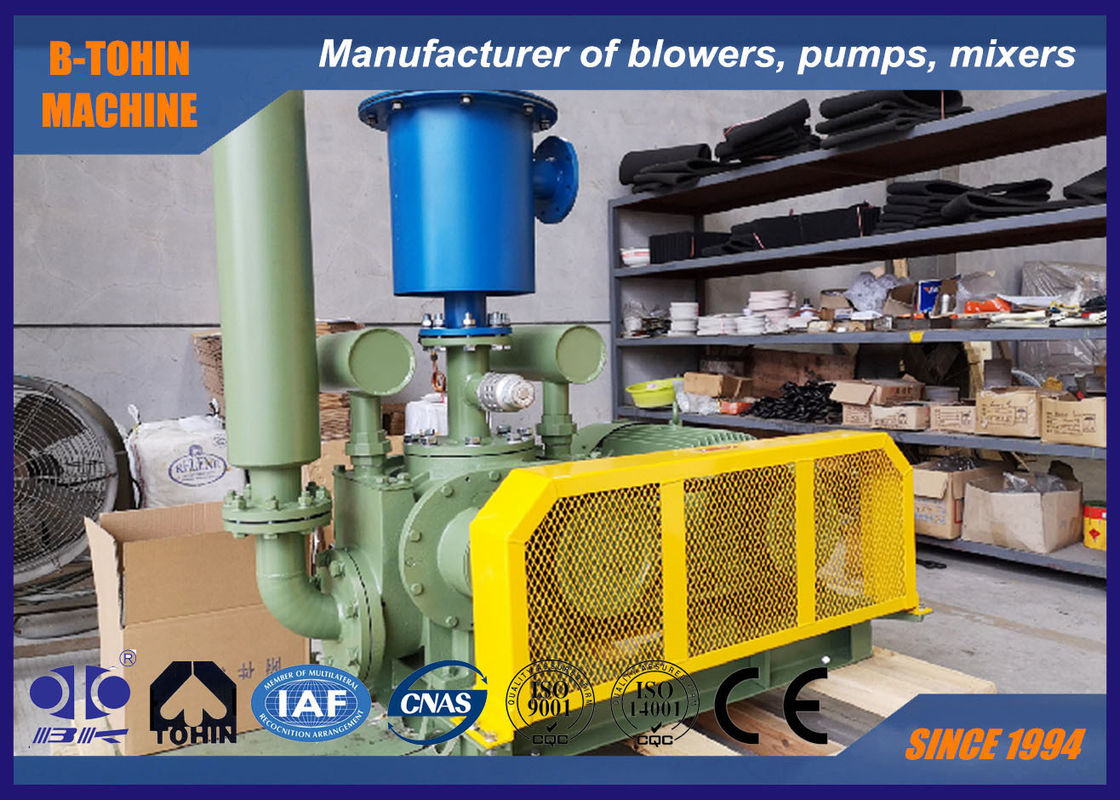

About BV100H Vacuum Blower

BV100H vacuum blower is a kind of displacement Roots type air pump. It can reach -65KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.

Specifications

Model	BV100H
Air capacity	6.1-10.15m³/min
Discharge differential pressure	-50 ~ -65KPA
Rotary speed	1400-2050rpm
Motor type	11-15/18.5-22/30KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: vertical type
N.W. of blower without motor	266kg

Parameter sheet

Model	Speed	Inlet capacity (m3/min)and shaft power (KW)
		-0.5kgf/cm²		-0.55kgf/cm²		-0.6kgf/cm²		-0.65kgf/cm²
		-5000mmH2O		-5500mmH2O		-6000mmH2O		-6500mmH2O
		-0.05Mpa		-0.055Mpa		-0.06Mpa		-0.065Mpa
	rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV100H	1400	6.21	9.76	6.1	10.28
Port Dia: DN100(4")	1550	7.12	10.8	7.00	11.38
	1750	8.33	12.2	8.21	12.85	8.1	13.5
	1850	8.94	12.9	8.82	13.59	8.7	14.27
	2050	10.15	14.29	10.03	15.05	9.91	15.82	9.72	16.58

Assembling drawing of blower package

DN100 4“ 8.7m³/Min -60KPA 18.5KW Negative Pressure Air-cooling Roots Blower Pump 0

Dimension size

BV-H Outline Dimension Sheet																					Unit:mm
Type	Port Dia	Motor power(kw)	A	B	B1	C	D	E	F	G	J	K	M	N	0	P	W	Q	T	U	n-M16×h	Weight (kg)
BV100H	(4")	11~15	920	720	360	100	108	900	230	150	132	183	316	274	410	460	186	25	1742	462	6-M16×400	266
		18.5～22	950	700	350	125								304	440	490
		30	1030	800	400	115								394	530	580
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.
