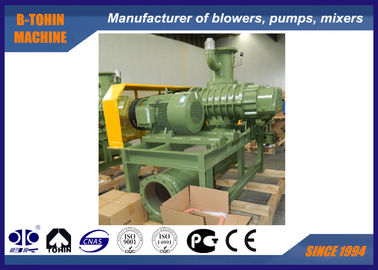

DN300 Large Roots Blower Vacuum Pump 6000m3/h Air Cooling type

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV9030

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	47.35-122.58m3/min
Discharge Differential Pressure:	-10KPA ~ -30KPA	Motor Power:	22KW-160KW
Discharge Bore:	DN300(12”)	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley	Speed:	700-1500rpm
Weight:	1400 Kg
Highlight:	roots type vacuum pump , air blower pump

DN300 Large Roots Blower Vacuum Pump, vacuum air capacity 6000m3/h

About BK vacuum pump

BV9030 is a vacuum use blower developed by B-Tohin based on its advanced technology and years' experience in producing pneumatic equipment. Its main parts are manufactured by CNC of high precision and inspected by CMM machine. SKF oil seals and NSK bearings installed inside the blower ensures no leakage and long service life.

Specifications

Model	BV9030
Inlet dimension	DN300
Outlet dimension	DN300
Air capacity	47.35-122.58m³/min
Discharge differential pressure	-10 ~ -30KPA
Rotary speed	700-1500rpm
Motor type	22KW-160KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Motor efficiency grade	IE3
Moror insulation class	F, temperature rising B
Motor protection class	IP55
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	1400kg
Packing size Approx.	2.671.852.55m (lengthwidthheight)

Parameter sheet

Model	Port Dia	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW
BV9030	300(12")	700	53.08	17.01	49.78	27.48	47.35	37.12
		850	66.11	20.66	62.81	33.37	60.38	45.07
		1000	79.15	24.30	75.84	39.25	73.41	53.03
		1150	92.18	27.95	88.88	45.14	86.44	60.98
		1250	100.87	30.38	97.56	49.07	95.13	66.29
		1400	113.90	34.02	110.60	54.96	108.16	74.24
		1500	122.58	36.45	119.28	58.88	116.85	79.54

Assembling drawing of blower package

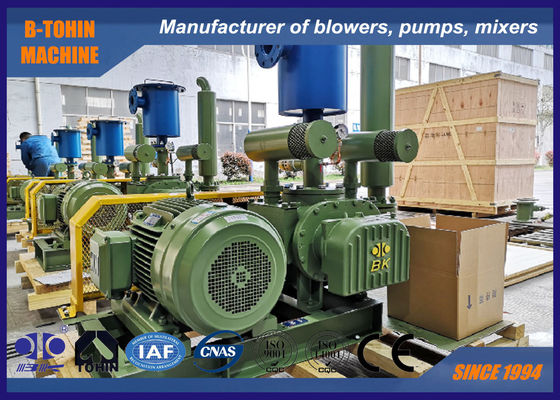

DN300 Large Roots Blower Vacuum Pump 6000m3/h Air Cooling type 0

BV Outline Dimension Sheet

Unit:mm

Type

Port Dia

Motor power

n-M16×h

Weight
(kg)

BV9030

300(12")

22～160

4-M16×400

Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.

The weight above are for standard accessories only,motor excluded.

Standard supply of scope

1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor

Main Products

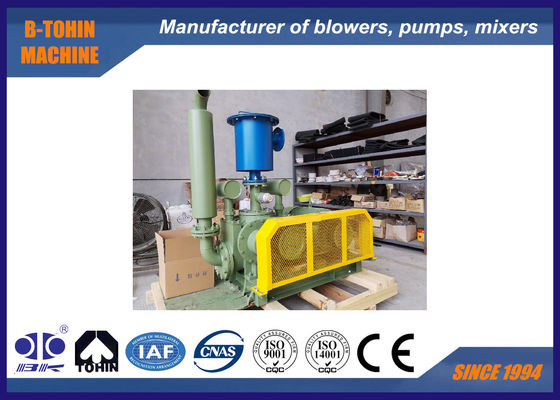

DN300 Large Roots Blower Vacuum Pump 6000m3/h Air Cooling type 1
