Professional Manufacturer of Various Kinds of Blowers

|
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001 |
| Model Number: | BV65 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 SETS per month |
| Type: | Vacuum Sauction, Roots Type | Air Capacity: | 1.92-7.38m3/min |
|---|---|---|---|
| Discharge Differential Pressure: | -10KPA - -50KPA | Motor Power: | 1.5-11KW |
| Discharge Bore: | DN65(2.5") | Cooling Type: | Air |
| Driven Type: | Motor Driven, Connected By Belt And Pulley | ||
| Highlight: | -10KPA Roots Blower Vacuum Pump,1.92m3/Min Roots Blower Vacuum Pump,1.5KW Roots Blower Vacuum Pump |
||

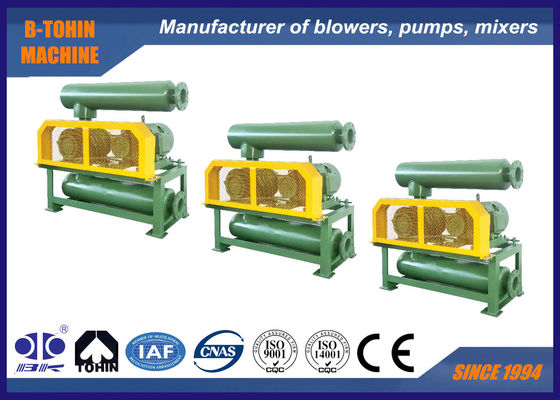

Vacuum 10KPA to vacuum 70KPA Roots negative pressure blower vacuum Pump DN65 lobe rotary type blower
About BV5003 Vacuum Blower
BK5003 vacuum blower is a kind of displacement Roots type air pump. It can reach -50KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.
Specifications
|
Model |
BV5003 |
|
Air capacity |
1.92-7.38m3/min |
|
Discharge differential pressure |
-10 ~ -50KPA |
|
Rotary speed |
850-2000rpm |
|
Motor type |
1.5-11KW 380/400/415/440V, 3PHASES, 50/60HZ |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: horizontal type, vertical type can be made to order |
|
N.W. of blower without motor |
171kg |
Parameter sheet
Assembling drawing of blower package
Dimension size
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
