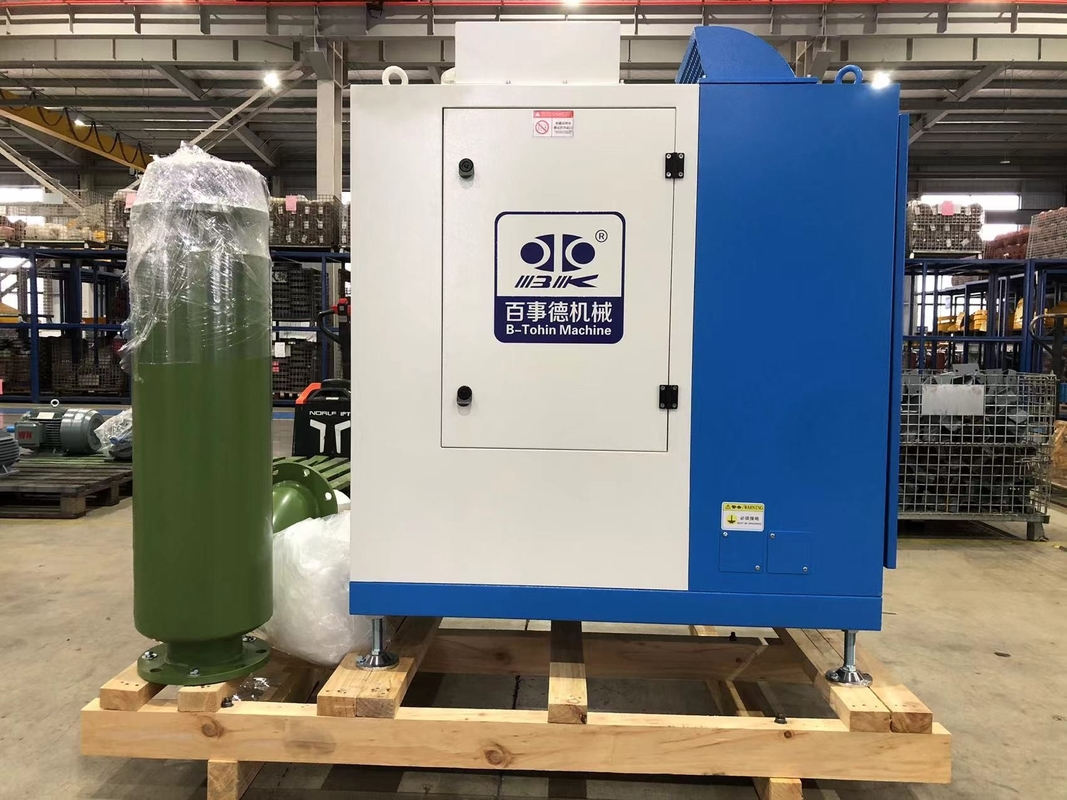

Powerful XTB 11.1-14.5m3/min Air Suspension Centrifugal Blower With 150DN And 395kg Shaft Power 20 HP

1,Machine Introduction:

   XTB Air Suspension Bearing Centrifugal Blower is an efficient fluid machinery that combines advanced suspension technology and centrifugal Blower principles, widely used in multiple industrial fields.

2,Main Characteries:

1,Air suspension bearing is lubricated by air buoyancy.The usage of air instead of lubricant can realize operation under higher temperature and speed.The advantages of air foil bearing structure include flexible start-up,low -cost operation,no mechanical friction, no need for lubrication oil,no vibration,lower noise and long service life(semi-permanent).

2,Impeller:The impeller is made of AL7075 and is precisely manufactured by advanced 3D optimal design technology. It is featured of high strength,high aerodynamic efficiency and low wear.Directly connected with the shaft,its power transmission efficiency is 99%.

3,High speed motor:Adopt motor of high-efficiency up to 95%,applicable for precise speed control.

3,Product Structure and Components:

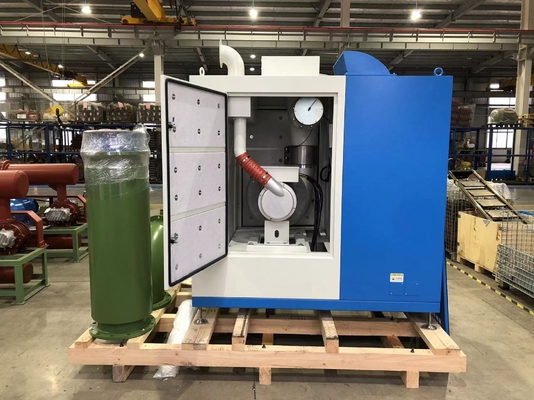

The high-speed direct connected motor controls its speed by changing the frequency of the frequency converter.

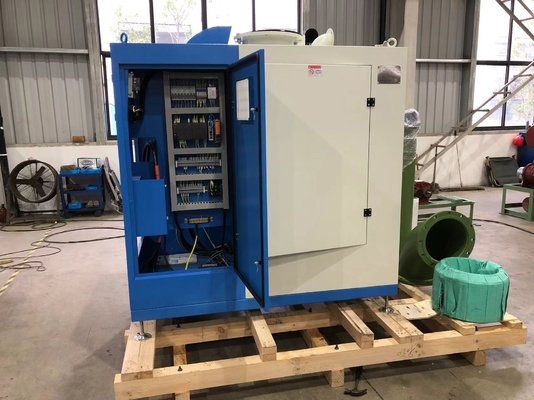

The PLC control -unit allows users to manually/automatically adjust it in real time according to the site conditions.

The chassis fixes all components and blocks the noise inside the blower.

Comparisontable of different bearings


 High Speed Motor

Adopt motor of high-efficiency up to 95%, of which the speed can be controlled precisely. The motor is of minimum usable design, fast speed and air cooling type to achieve high efficiency. Air cooling is more reliable than water cooling type, because it provides easier maintenance and promises safer operation.

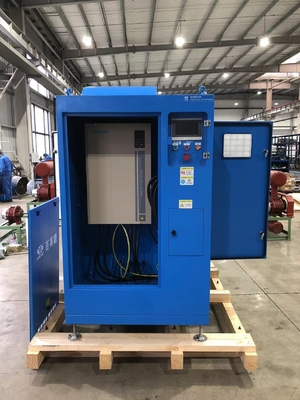

 Inverter & PLC

Inverter	PLC


Inverter

Adopt the international famous brand SEOHO, YASKAWA ,VACON inverter for your choose. The motor can be started up with a small current so as to cut down the investment on electricity and electric cable. Featured of low noise, high-efficiency, soft-start type and digital control efficiency no less than 96%, the inverter is stable and reliable in operation and can response to rapid load change very fast.


PLC

Adopt the programmable logic controller (PLC) of international famous brand, of which the automated solutions standard reaches the world level. The PLC can provide users various solutions from control to final connection to load. Different with MICOM, the PLC needn’t MCP. With single unit or multiple units communication realized by bus wire and center control system, the PLC can lower cost, improve control capability and safety level.



4,Machine Features

①Simple Maintenance

②Compact Structure

③Low noise,no vibration,long service life

④Convenient usage and control

⑤Oil free,no vibration,air bearing

⑥High efficiency,saving energy


5.Model and Datas

 Main Machine Products:
