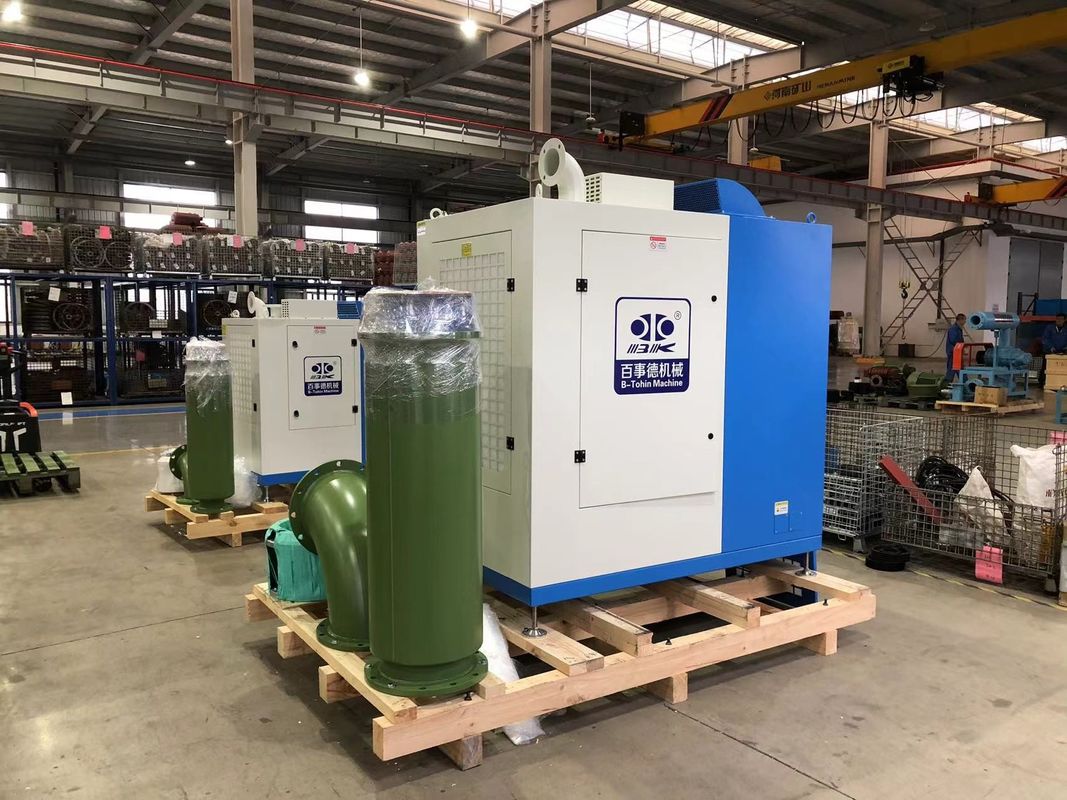

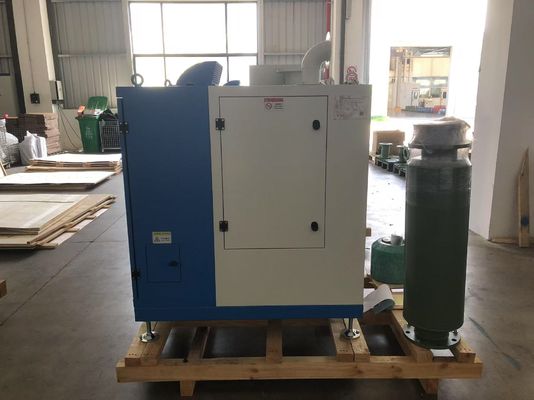

B-TOHIN XTB50HP-0.6 Air Suspension Centrifugal Blower, 60 kPa Pressure, 35.9 m3/min Airflow, 150 mm Outlet for Industrial Aeration
Product Brief:
XTB Air Suspension Bearing Centrifugal Blower is an efficient fluid machinery that combines advanced suspension technology and centrifugal Blower principles, widely used in multiple industrial fields.
Main Characteristic:
1,Air suspension bearing is lubricated by air buoyancy.The usage of air instead of lubricant can realize operation under higher temperature and speed.The advantages of air foil bearing structure include flexible start-up,low -cost operation,no mechanical friction, no need for lubrication oil,no vibration,lower noise and long service life(semi-permanent).
2,Impeller:The impeller is made of AL7075 and is precisely manufactured by advanced 3D optimal design technology. It is featured of high strength,high aerodynamic efficiency and low wear.Directly connected with the shaft,its power transmission efficiency is 99%.
3,High speed motor:Adopt motor of high-efficiency up to 95%,applicable for precise speed control.

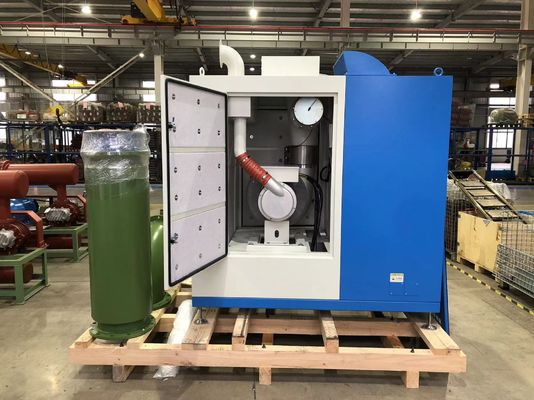

Product Components:
The high-speed direct connected motor controls its speed by changing the frequency of the frequency converter. The PLC control -unit allows users to manually/automatically adjust it in real time according to the site conditions. The chassis fixes all components and blocks the noise inside the blower.
| Touch screen LCD |
Variable frequency drive |
Cooling air muffler |
|
1,Input driving signal
2,View operational data
3,Change product settings
|
1,Change the motor speed according to the PLC value
2,Change flow and pressure
|
1,Saving installation space
2,Two air cooling circulation systems
|
| Vent valve |
Air |
Internal Muffler |
|
1,Empty the air to protect the motor when starting and stopping the blower
2,Pneumatic systems utilize compressed air by itself
|
1,Compress the surrounding air and gas
2,Centrifugal compression by using impellers and volutes
3,Oil free due to the use of air bearings
4,Air cooling or water cooling
5,High efficiency motor
|
1,Reduce the noise transmitted to the outside through the motor of the entrance path
2,C-shaped shape
|
Comparing With Other Bearings:
| Item |
Roller bearing |
Tilting-pad bearing |
Magnetic bearing |
Air foil bearing |
| Lubricants |
Need |
Need |
- |
- |
| Maintenance |
Need replace
after a period of
operation |
Need regular
check/replace |
Need replace
assistant
ball bearing |
No Need |
Maintenance
period |
1 year |
1 year |
5 years |
20 years |
Power cut/
electrical failure |
Oil pressure drop/
possible fault |
Oil pressure drop/
possible fault |
Short life of
assistant
ball bearing |
No |
System
composition |
Complex
oil system |
Complex
oil system |
Complex controller,
limited bearing
coil life |
Easy
(complete
machine type) |
| Power loss |
5% loss due to
gear system |
10% loss due to
gear system |
(When high speed
motor equipped)
1% loss |
(When high speed
motor equipped)
Loss < 0.5% |
| A/S charges |
50 |
100 |
100 |
50 |
Advantages of XTB Blower
(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.
(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.
(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.
(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance
Model and Datas
| Model |
Pressure |
Air Capacity |
Discharge Bore A |
Cooling Way |
| mmAq |
㎥/min |
| XTB50HP-0.6 |
6000 |
35.9 |
150 |
Air cooling |
| XTB50HP-0.8 |
8000 |
28.1 |
150 |
| XTB50HP-1.0 |
10000 |
21.8 |
150 |
6,Machine Features
①Simple Maintenance
②Compact Structure
③Low noise,no vibration,long service life
④Convenient usage and control
⑤Oil free,no vibration,air bearing
⑥High efficiency,saving energy
