XTB 700HP Air Turbo Suspension Bearing Centrifugal Blower with Pressure 6000-12000 mmAq

XTB 700HP Air Turbo Suspension Bearing Centrifugal Blower with Pressure 6000-12000 mmAq

Product Details:
Place of Origin: CHINA
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: XTB700HP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Exported wooden case
Delivery Time: 25 working days after receiving the advance payment
Payment Terms: L/C, T/T
Supply Ability: 300 sets / month
Contact Now
Detailed Product Description
Flow Rate: 239-448 M³/min Cooling Way: Air
Size: W1800mm* D3500mm* H2200mm Discharge: 500mm
Model: XTB700HP Weight: 3900 Kg
Feature: Max Size Advantages1: Remote Control, Intelligent Control
Advantages2: High Efficiency,Cost Low,Energy Saving

Machine Introduction



XTB Air Suspension Bearing Centrifugal Blower is an efficient fluid machinery that combines advanced suspension technology and centrifugal Blower principles, widely used in multiple industrial fields.



Product Components


Touch screen LCD Variable frequency drive Cooling air muffler

1,Input driving signal

2,View operational data

3,Change product settings

1,Change the motor speed according to the PLC value
2,Change flow and pressure

1,Saving installation space

2,Two air cooling circulation systems

Vent valve Air Internal Muffler

1,Empty the air to protect the motor when starting and stopping the blower
2,Pneumatic systems utilize compressed air by itself

1,Compress the surrounding air and gas
2,Centrifugal compression by using impellers and volutes
3,Oil free due to the use of air bearings
4,Air cooling or water cooling
5,High efficiency motor

1,Reduce the noise transmitted to the outside through the motor of the entrance path
2,C-shaped shape

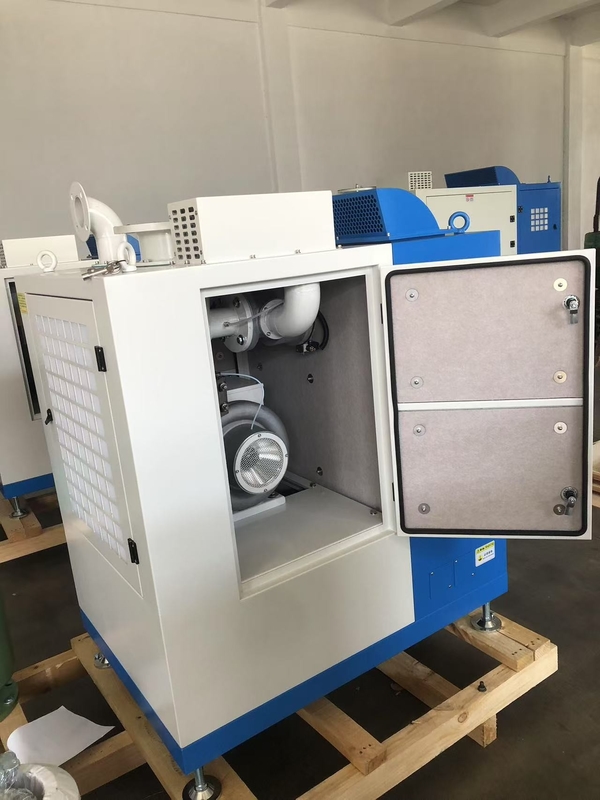

XTB 700HP Air Turbo Suspension  Bearing Centrifugal Blower with Pressure 6000-12000 mmAq 0

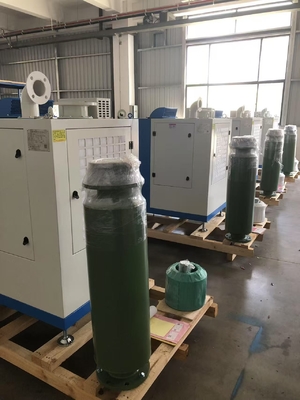

 XTB 700HP Air Turbo Suspension  Bearing Centrifugal Blower with Pressure 6000-12000 mmAq 1




 Machine Specifications:

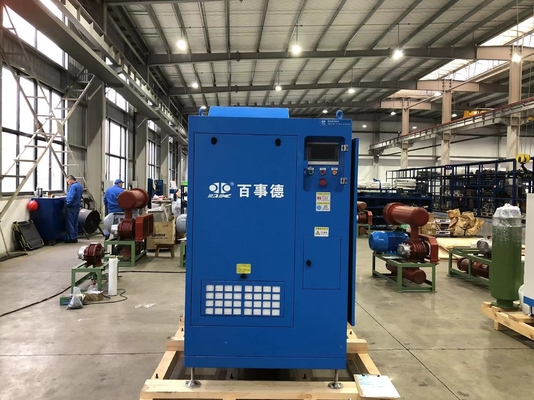

XTB 700HP Air Turbo Suspension  Bearing Centrifugal Blower with Pressure 6000-12000 mmAq 2





Model 10 20 30 50 75 100 125 150 200 250 300 350 400 500 600 700

Flow rate

(mm Aq)

6000 7.3 14.5 23.0 35.9 51.0 73.8 89.4 104.0 129.0 160 198 227 245 316 390 448
8000   11.1 17.7 28.1 37.0 57.2 72.8 86.3 100.9 130 156 179 189 256 307 353
10000       21.8 31.0 46.8 57.2 68.6 83.2 104 128 147 158 205 252 290
12000         28.0 37.4 49.9 60.3 70.2 94 109 125 149 177 207 239
Discharge(DN) 80 150 150 150 200 250 250 250 300 350 350 350 400 500 500 500






Weight(kg) 200 395 400 415 700 780 860 870 920 1400 1480 1500 2200 3700 3860 3900

SIZE

(mm)

W 650 800 800 800 1020 1020 1020 1020 1020 1300 1300 1300 1700 1800 1800 1800
D 650 1150 1150 1150 1600 1600 1700 1700 1700 2000 2000 2000 2500 3500 3500 3500
H 1020 1350 1350 1350 1580 1580 1780 1780 1780 1900 1900 1900 2040 2200 2200 2200



Advantages of XTB Blower


①,Simple Maintenance



②,Compact Structure



③,Low noise,no vibration,long service life



④,Convenient usage and control



⑤,Oil free,no vibration,air bearing



⑥,High efficiency,saving energy



Our Company and Patents



 XTB 700HP Air Turbo Suspension  Bearing Centrifugal Blower with Pressure 6000-12000 mmAq 3



XTB 700HP Air Turbo Suspension  Bearing Centrifugal Blower with Pressure 6000-12000 mmAq 4
