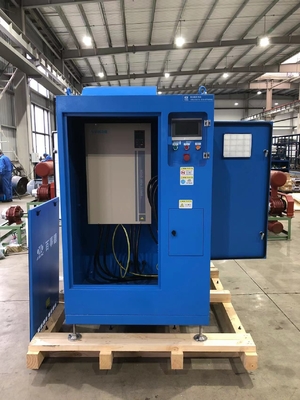

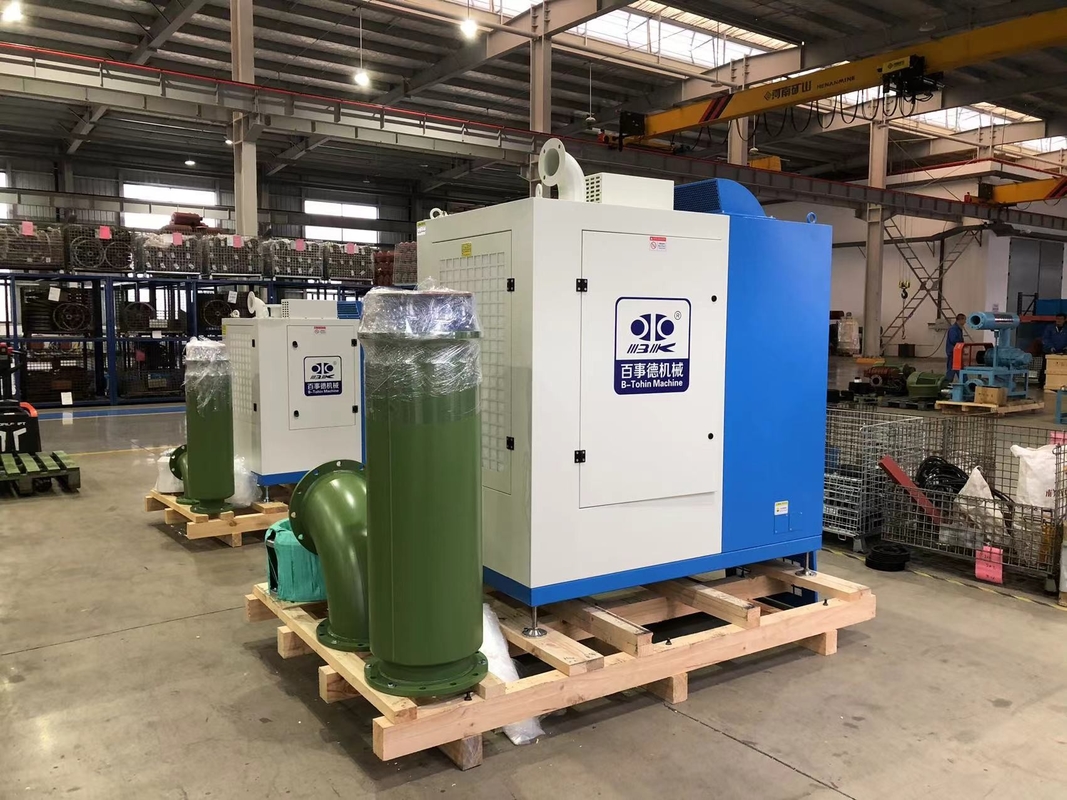

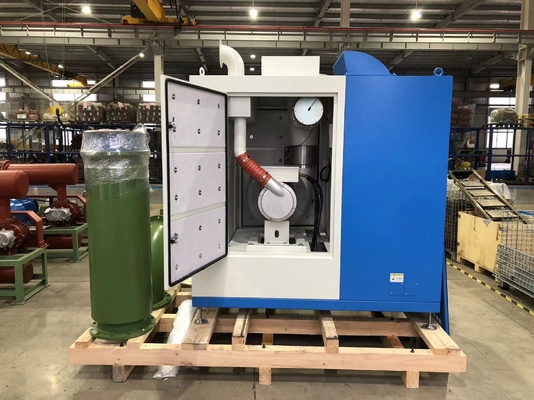

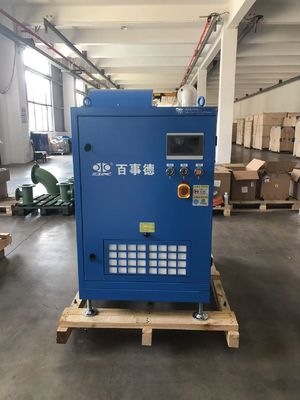

Industrial XTB250HP Air Suspension Centrifugal Blower 94-160 M3/min Flow Rate

 Main characteristics；

  Air suspension bearing is lubration by air buoyancy. The use of air instaed of lubration can realize operation under high temperature and speed.

  The advantages of air foil bearing structure include flexible start-up,low-cost operation,no mechanical friction, no need for lubrication oil, no vibration , lower noise and long service life (semi-permanent).

Product Components:




Impeller: The impeller is made of AL7075 and is precisely manufacturered by advanced 3D optimal design technology. It is featured of high strength,high aerodynamic efficiency and low wear. Directly connected with the shaft,its power transmission efficiency is 99%.

High speed motor: Adopt motor of high-efficiency up to 95%,applicable for precise speed control.




 Advantages of XTB Blower

(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.

(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.

(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.

(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance


5.Model and Datas
