XTB 500HP Gas Transportation Air Turbo Suspension Centrifugal Blower

Product Details:

Place of Origin:	CHINA
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	XTB500HP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Exported wooden case
Delivery Time:	25 working days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets / month

Contact Now

Detailed Product Description

Pressure:	6000 -12000 MmAq	Flow Rate:	177-316 M³/min
Cooling Way:	Air	Size:	W1800mm* D3500mm* H2200mm
Discharge:	500mm	Applications:	Cement Transportation,Oxygen Transportation,
Model:	XTB500HP	Weight:	3700 Kg
Advantages:	Easy Installation, Intelligent Control, Low Noise,Small Vibration
Highlight:	Air Turbo Suspension Centrifugal Blower , 500HP Air Turbo Suspension Centrifugal Blower , Centrifugal air foil bearing turbo blower

Product Brief

The main advantage of XTB series air suspension bearing high speed centrifugal blower is that it saves energy.The product of the mouth adopts

air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.

Model	Pressure	Air Capacity	Discharge Bore A	Cooling Way
Model	mmAq	㎥/min	Discharge Bore A	Cooling Way
XTB500HP-0.6	6000	316	500	Air cooling
XTB500HP-0.8	8000	256	500
XTB500HP-1.0	10000	205	500
XTB500HP-1.2	12000	177	500

Product Components

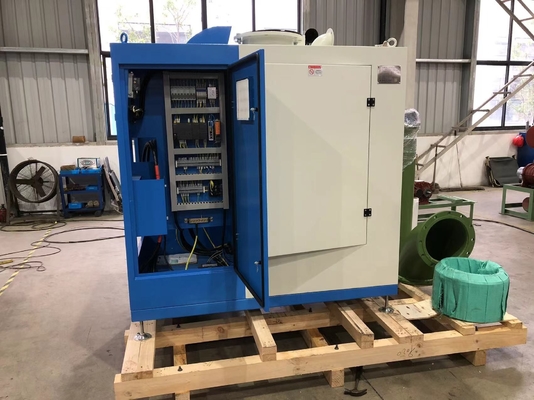

XTB 500HP Gas Transportation Air Turbo Suspension Centrifugal Blower 0

Touch screen LCD	Variable frequency drive	Cooling air muffler
1,Input driving signal 2,View operational data 3,Change product settings	1,Change the motor speed according to the PLC value 2,Change flow and pressure	1,Saving installation space 2,Two air cooling circulation systems
Vent valve	Air	Internal Muffler
1,Empty the air to protect the motor when starting and stopping the blower 2,Pneumatic systems utilize compressed air by itself	1,Compress the surrounding air and gas 2,Centrifugal compression by using impellers and volutes 3,Oil free due to the use of air bearings 4,Air cooling or water cooling 5,High efficiency motor	1,Reduce the noise transmitted to the outside through the motor of the entrance path 2,C-shaped shape

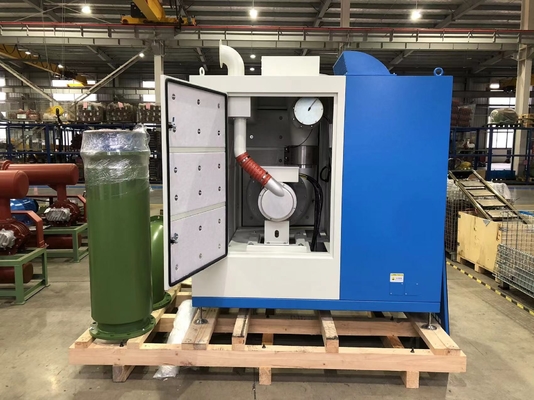

XTB 500HP Gas Transportation Air Turbo Suspension Centrifugal Blower 1

Comparing With Other Bearings

Item	Roller bearing	Tilting-pad bearing	Magnetic bearing	Air foil bearing
Lubricants	Need	Need	-	-
Maintenance	Need replace after a period of operation	Need regular check/replace	Need replace assistant ball bearing	No Need
Maintenance period	1 year	1 year	5 years	20 years
Power cut/ electrical failure	Oil pressure drop/ possible fault	Oil pressure drop/ possible fault	Short life of assistant ball bearing	No
System composition	Complex oil system	Complex oil system	Complex controller, limited bearing coil life	Easy (complete machine type)
Power loss	5% loss due to gear system	10% loss due to gear system	(When high speed motor equipped) 1% loss	(When high speed motor equipped) Loss < 0.5%
A/S charges	50	100	100	50

Advantages of XTB Blower

(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.

(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.

(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.

(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance

Company Introduction

The company has successfully passed the certification of ISO9001 quality management system certification,ISO 14001 environmental management system certification,ISO 45001 occupation health and safety management system certification and ISO50001 energy management system certification.The company also has been certified as “High &New-tech Enterprises of Jiangsu Province” for many years.B-Tohin Tech R&D Center has a team of professor level senior engineers,doctoral and master’s students ,and a group of undergraduate students for scientific and technological innovation.It has established the“Jiangsu Province Energy saving Aerodynamic Equipment Engineering Technology Research Center ”and “Air Suspension Bearing Research and production Center” .At the same time,it has also obtained the national standard GB/T2.79.22-2011“Product After sales Service Evaluation System”five-star certification,“JiangSu Province Specialized,Refine,Unique and New Small and Medium sized Enterprises”,Mayor’s Quality Management Excellence Award”,“Carbon Management System Certificate”,“AA level Integration Management System Evaluation Certificate”,and“Enterprise in Compliance with Environmental Protection Equipment Manufacturing Industry Standard.”

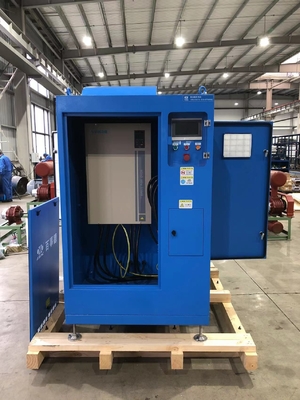

XTB 500HP Gas Transportation Air Turbo Suspension Centrifugal Blower 2

Main Products:

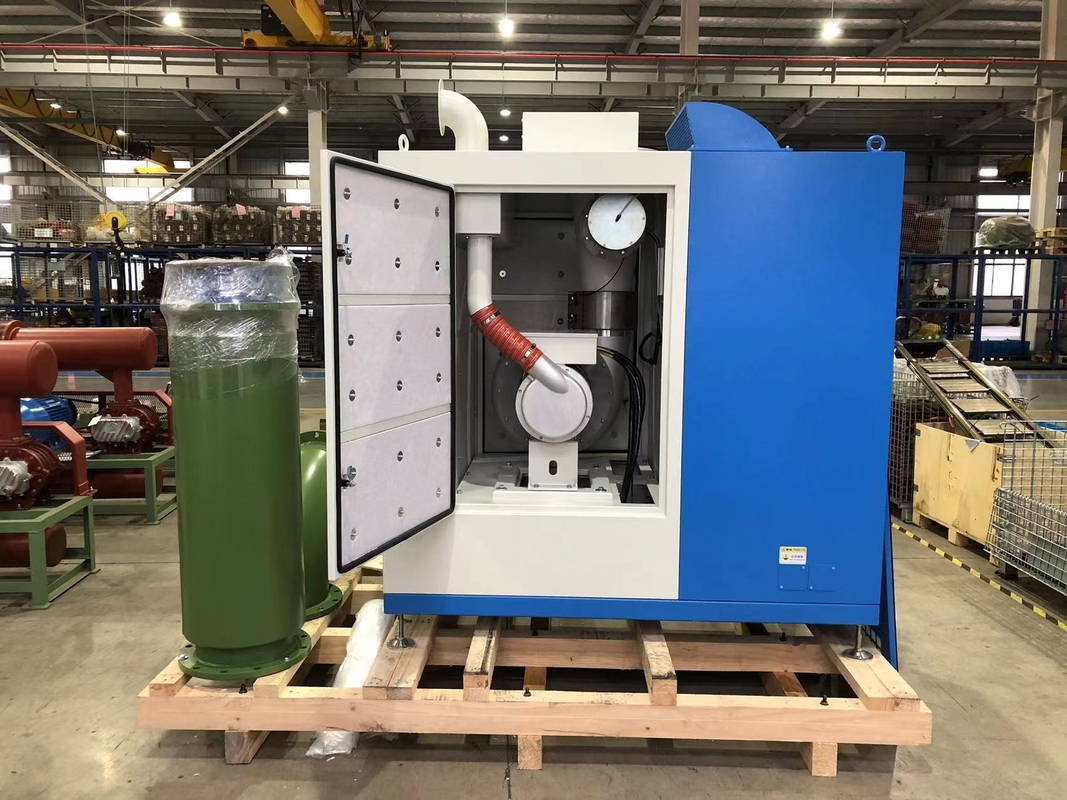

XTB 500HP Gas Transportation Air Turbo Suspension Centrifugal Blower 3
