XTB200HP 70.2-129m3/min Flow Rate 300DN Air Suspension Bearing Centrifugal Blower H1780mm* W1020mm* D1700mm*

Product Details:

Place of Origin:	CHINA
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	XTB200HP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	25 work days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets / month

Contact Now

Detailed Product Description

Pressure:	6000 -12000mmAq	Flow Rate:	70.2-129.0 M³/min
Cooling Method:	Air	Size:	W1020mm* D1700mm* H1780mm
Discharge:	300mm	Applications:	Oxygen Transportation,Cement Transportation
Model:	XTB200HP	LCD Control:	Yes
Highlight:	Air Suspension Bearing Centrifugal Blower , 300DN Air Suspension Bearing Centrifugal Blower , 70.2-129m3/min air foil bearing turbo blower

Company Brief
B-TOHIN machine (jiangsu) co., LTD., the foreign capital enterprise, was founded in 1994, the company has passed the pass the quality management system certification and ISO14001 environmental management system certification, and was identified as high-tech enterprises in jiangsu province, China famous trademark, brand-name products in jiangsu province, jiangsu province energy saving air power equipment engineering technology research center, a famous trademark in jiangsu province, environmental protection product certification, and won several national patents and national torch project.I have been awarded the brand title of Chinese water network user satisfaction for many years.

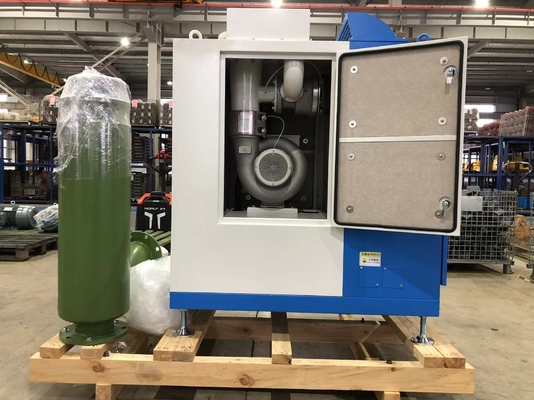

XTB200HP 70.2-129m3/min Flow Rate 300DN Air Suspension Bearing Centrifugal Blower H1780mm* W1020mm* D1700mm* 0
Product Brief
The main advantage of XTB series air suspension bearing high speed centrifugal blower is that it saves energy.The product of the mouth adopts air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.

Touch screen LCD	Variable frequency drive	Cooling air muffler
1,Input driving signal 2,View operational data 3,Change product settings	1,Change the motor speed according to the PLC value 2,Change flow and pressure	1,Saving installation space 2,Two air cooling circulation systems
Vent valve	Air	Internal Muffler
1,Empty the air to protect the motor when starting and stopping the blower 2,Pneumatic systems utilize compressed air by itself	1,Compress the surrounding air and gas 2,Centrifugal compression by using impellers and volutes 3,Oil free due to the use of air bearings 4,Air cooling or water cooling 5,High efficiency motor	1,Reduce the noise transmitted to the outside through the motor of the entrance path 2,C-shaped shape

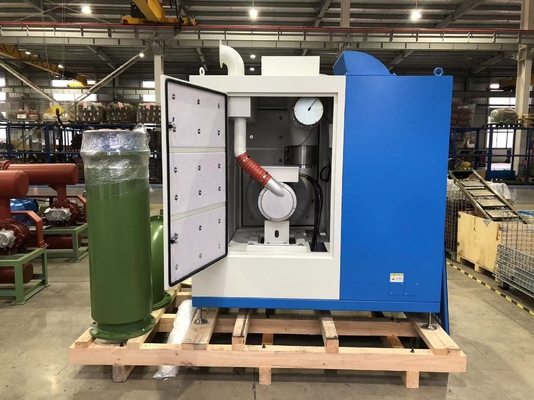

XTB200HP 70.2-129m3/min Flow Rate 300DN Air Suspension Bearing Centrifugal Blower H1780mm* W1020mm* D1700mm* 1

Comparing With Other Bearings:

Item	Roller bearing	Tilting-pad bearing	Magnetic bearing	Air foil bearing
Lubricants	Need	Need	-	-
Maintenance	Need replace after a period of operation	Need regular check/replace	Need replace assistant ball bearing	No Need
Maintenance period	1 year	1 year	5 years	20 years
Power cut/ electrical failure	Oil pressure drop/ possible fault	Oil pressure drop/ possible fault	Short life of assistant ball bearing	No
System composition	Complex oil system	Complex oil system	Complex controller, limited bearing coil life	Easy (complete machine type)
Power loss	5% loss due to gear system	10% loss due to gear system	(When high speed motor equipped) 1% loss	(When high speed motor equipped) Loss < 0.5%
A/S charges	50	100	100	50

Advantages of XTB Blower

(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.

(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.

(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.

(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance

5.Model and Data

Model	Pressure	Air Capacity	Discharge Bore A	Cooling Way
Model	mmAq	㎥/min	Discharge Bore A	Cooling Way
XTB200HP-0.6	6000	129	300	Air cooling
XTB200HP-0.8	8000	100.9	300
XTB200HP-1.0	10000	83.2	300
XTB200HP-1.2	12000	70.2	300
