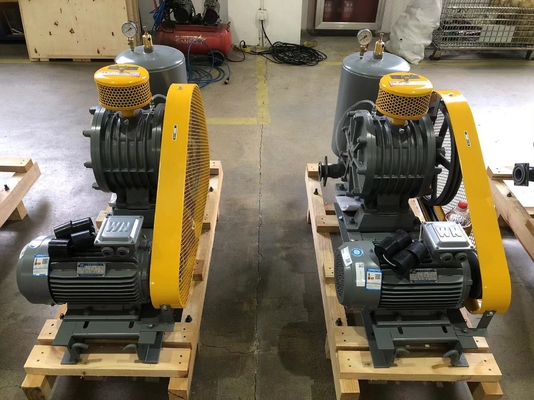

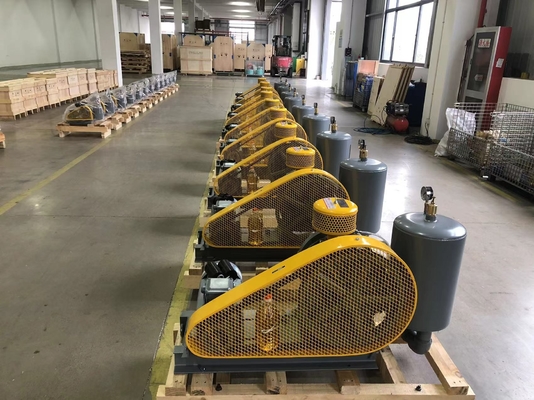

2.2KW DN40 HC-501S Rotary Air Water Treatment Blower with Japanese design

2.2KW DN40 HC-501S Rotary Air Water Treatment Blower with Japanese design

  • 2.2KW DN40 HC-501S Rotary Air Water Treatment Blower with Japanese design
2.2KW DN40 HC-501S Rotary Air Water Treatment Blower with Japanese design
Product Details:
Place of Origin: China
Brand Name: TOHIN
Certification: ISO9001/ISO14001/CE
Model Number: HC-501S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5-20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS per month
Contact Now
Detailed Product Description
Air Capacity: 1.44-1.32m3/min Discharge Differential Pressure: 10-50KPA
Motor Power: 2.2KW Discharge Bore: DN40(1 1/2”)
Driven Type: Belt And Pulley Main Materials: Cast Iron
Technology Of: Tohin Shoji Co., Ltd. Noise: 63dB(A)
High Light:

rotary positive displacement blower

,

Aeration blower

HC-501S Rotary Air Blower, low noise,2.2KW, DN40, Japanese design




About HC-501S



Technology of HC blower is of JAPAN TOHIN SHOJI CO., LTD. This kind of blower is widely used for aeration in sewage treatment. Due to its reliability and excellent performance, HC blower has enjoyed good reputation from many customers over the whole world.






Specifications



Air capacity

1.44m3/min

1.42m3/min

1.39m3/min

1.36m3/min

1.32m3/min

Discharge differential pressure

10KPA

20 KPA

30KPA

40 KPA

50KPA

Rotary speed

500rpm

Motor type

2.2KW

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

N.W. of blower package

125kg

Packing size Approx.

1.2*0.61*1m (length*width*height)






Applications

  • Agitation and aeration for plating tanks and waste water
  • Air supplier for plastic welding and blowing
  • For mist spray of burner and in glass industry
  • Mixing and aerating of hospital and laboratory waste products
  • Conveying papers in offset printing operations
  • Aeration in sewage water treatment




Features

  • Energy consumption, compact. (It adopts the principle of air compressed by revolving movement. Therefore, although compact, the rotary  blowers display their powerful discharged capacity, low noise, little energy consumption that can't be surpassed by other competitors.)



  • Stable operation, simple installation. (In the case of small types, the blower can be conveniently installed and mere vibration produced if placed correctly, not requiring any other anti-vibration device.)



  • Resisting load changes, securing fixed air flow rate (For instance, if a rotary blower is used for sanitary treatment in the aeration tank, almost no air flow rate is decreased even if load becomes large due to the change in the pressure inside tank.)



  • Air chamber equipped for dispersing air smoothly. (All models are provided with an air chamber, resulting in being free from air pulsation and air dispersed smoothly.



  • performance (All parts of the blowers are made of well manufactured material and are fine designed and manufactured. It is durable in use and free of trouble and deterioration of performance after a long time use.)



  • Noise is very low suitable for sewage treatment of residence residential area.






Working Principle



The blower is so designed and constructed that air is sucked, compressed and discharged  repeatedly while vanes protruding from the grooves of rotor are coming in and out by revolution of a rotor (rotating body)   set eccentrically inside the cylinder diameter. A minimum required quantity of oil is dropped to an oil dropping nozzle, then dropped into the cylinder always while operating in order to make lubrication for the purpose of preventing heat and noise from generating. In the same time, there's no circumfluence in operation.






Standard supply of scope

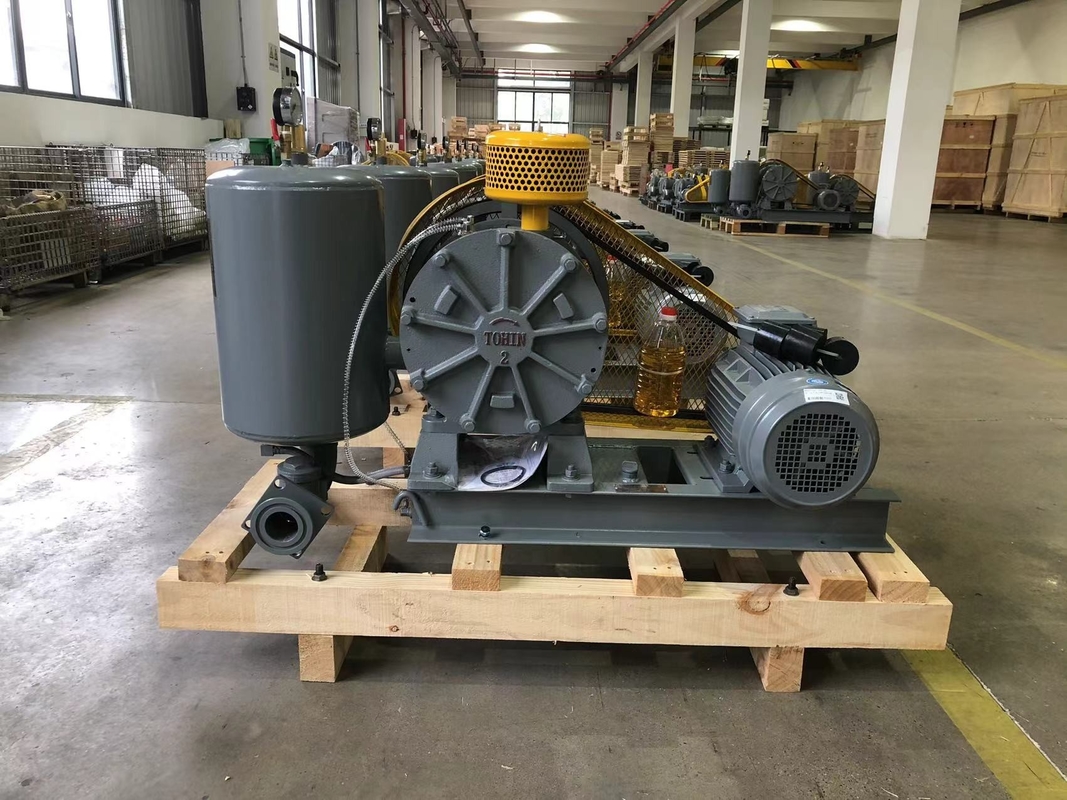

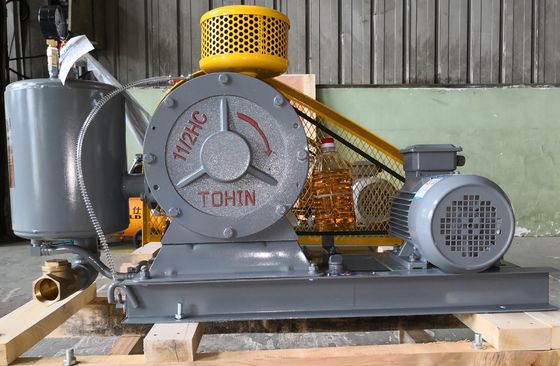

HC Rotary blower's structure is exquisite. It mainly includes motor, air filter, blower body, air chamber, base (and oil tank) and Japan made oil dropping nozzle.





FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
