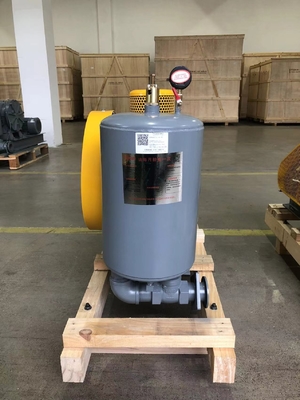

HC-60S Rotary waste water treatment Blower , 2.2kW low noise air blower

HC-60S Rotary Air Blower, air blower, 2.2kW,  low noise, wastewater aeration

About HC


With its unique design imported from Japan, the HC blower is of excellent performance and widely adopted by overseas customers.

.


Specifications

Applications

• Wastewater aeration
• Mixing and aerating of hospital and laboratory waste products
• Conveying papers in offset printing operations
• Agitation and aeration for plating tanks and waste water
• Air supplier for plastic welding and blowing
• For mist spray of burner and in glass industry and others
• new rural construction waste water treatment projects and residential building sewage treatment

Features

• Compact, low noise and economical energy consumption. (It adopts the principle of air compressed by revolving movement. Therefore, although compact, the rotary  blowers display their powerful discharged capacity, low noise, litter energy consumption)

  ---



• Stable operation, simple installation. (In the case of small types, the blower can be conveniently installed and nearly no vibration produced if placed correctly, not requiring any other vibration-proof device.)

  ---



• Resisting load changes, securing fixed air flow rate (For instance, if a rotary blower is used for sanitary treatment in the aeration tank, almost no air flow rate is decreased even if load becomes large due to the change in the pressure inside tank.)

  ---



• Air chamber equipped for dispersing air smoothly. (All models are provided with an air chamber, resulting in being free from air pulsation and air dispersed smoothly.)

  ---



• Superior material, ingenious structure designed in Japan, remarkable performance

  ---



• performance (All parts of the blowers are made of fine material and are fine designed and manufactured. It is durable in use and free of trouble and deterioration of performance after a long time use.)

  ---



• Simple maintenance, rare malfunctions, long using life (The low speed of blower ensures small abrasion and long life.)

Working Principle

The blower is so designed and constructed that air is sucked, compressed and discharged  repeatedly while vanes protruding from the grooves of rotor are coming in and out by revolution of a rotor (rotating body)   set eccentrically inside the cylinder diameter. A minimum required quantity of oil is dropped to an oil dropping nozzle (imported from Japan), then dropped into the cylinder always while operating in order to make lubrication for the purpose of preventing heat and noise from generating. In the same time, circum-fluence of air in cylinder will not occur.

Standard supply of scope

HC Rotary blower's structure is exquisite. It mainly consists of air chamber, electric motor, air filter, blower body, base (and oil tank),  unique designed oil dropping nozzle and connection parts.
