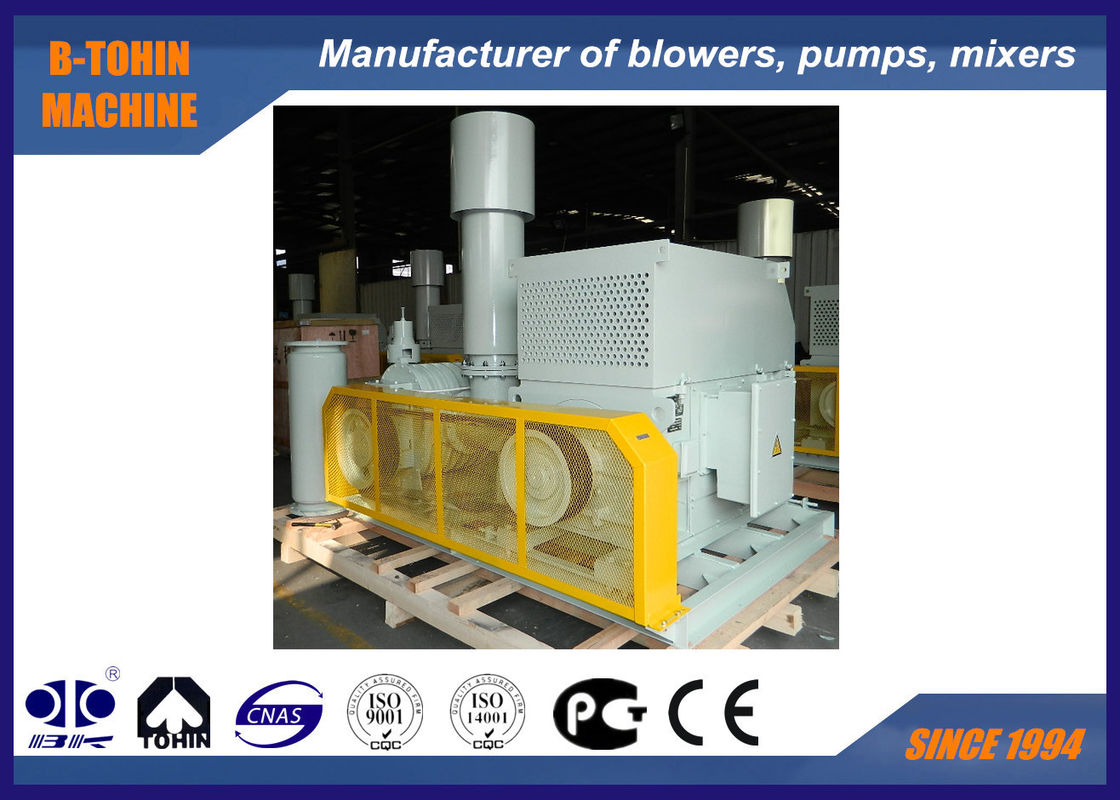

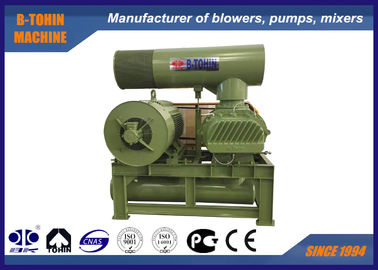

220KW Roots Rotary Lobe Blower , 6000m3/hour 100KPA high pressure blower

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001/CE
Model Number:	BKW10027S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	50 SETS per month

Contact Now

Detailed Product Description

Name:	Roots Rotary Lobe Blower	Type:	Positive Displacement Roots Type, Three Lobes
Air Capacity:	60.34-125.40m³/min	Discharge Differential Pressure:	60-100KPA
Motor Power:	37-90/110-220KW	Discharge Bore:	DN300(12”)
Driven Type:	Motor Driven, Connected By Belt And Pulley	Installation Type:	Horizontal, Vertical Available Also
Highlight:	high pressure blower , rotary positive blower

220KW Roots Rotary Lobe Blower, 6000m3/hour, 100KPA high pressure blower

Applications:

1. For Cement industry: cement conveying blower, ventilating blower, furnace blower, kiln blower, etc.
2. For Sewage Treatment System: aeration, back-washing, etc.
3. For Aquaculture: generate oxygen for fish-pond, shell-fish pond, shrimp-pond, etc.
4. For Pneumatic Conveying: conveypowder materials, such as flour, cement, sand, grain, etc.
5. For Dust Collecting/dust cleaning/ventilation in some factory, hospital/ buildings, etc.
6. For Electric Power Plant: gas conveying,oxygen increasing, ventilating, dust cleaning, etc.

Specifications

Model	BKW10027S
Air capacity	60.34-125.40m³/min
Discharge differential pressure	60-100KPA
Rotary speed	850-1500rpm
Cooling water volume	25 l/min
Motor type	37-90/110-220KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	1600kg
Packing size Approx.	2.71.92.5m (LWH)

Features

1. Technical customization (pressure, capacity, size, alternative accessories).
2. Strict QC syste:12 months warranty.
3. Assembled using state-of-the-art CNC machine; Equipped with MARTEXWELL belts, NSK bearings, SKF oil seal.
4. High precision make fewer friction between rotors, rotor & case.

Parameter sheet

Model	Speed	Inlet capacity (m3/min)and shaft power (KW)
		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2		0.9kgf/cm2		1.0kgf/cm2
		6000mmH2O		7000mmH2O		8000mmH2O		9000mmH2O		10000mmH2O
		0.06Mpa		0.07Mpa		0.08Mpa		0.09Mpa		0.1Mpa
	rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BKW10027S	850	63.16	87.76	61.70	97.29	60.34	106.8
	1000	77.52	103.3	76.06	114.5	74.71	125.7	73.43	136.9	72.22	184.1
Port Dia:	1150	91.89	118.7	90.43	131.6	89.07	144.5	87.79	157.4	86.58	170.3
DN300	1250	101.5	129.1	100.0	143.1	98.64	157.1	97.37	171.1	96.16	185.10
(12")	1400	115.8	144.6	114.4	160.2	113.0	175.9	111.7	191.6	110.5	207.3
	1500	125.4	154.9	123.9	171.7	122.6	188.5	121.3	205.3
Cooling water: 25 l/min

Structure of blower main body

220KW Roots Rotary Lobe Blower , 6000m3/hour 100KPA high pressure blower 0

Flow direction of cooling water

220KW Roots Rotary Lobe Blower , 6000m3/hour 100KPA high pressure blower 1

Assembling drawing of blower package

220KW Roots Rotary Lobe Blower , 6000m3/hour 100KPA high pressure blower 2
Standard supply of scope

1. shaft blower
2. inlet silencer (with air filter)
3. outlet silencer
4. relieve valve
5. check valve
6. flexible joint
7. pressure gauge
8. blower pulley and motor pulley
9. V-belt
10. belt cover
11. public base
12. motor
