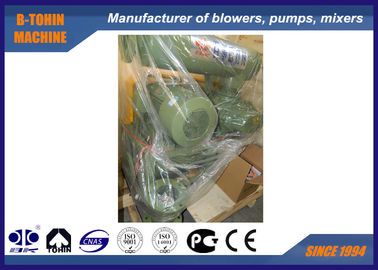

Cast Iron Roots Blower Vacuum Pump , vacuum roots blower for chemical industry

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV7011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	11.41-31.51m3/min
Discharge Differential Pressure:	-10KPA ~-40KPA	Motor Power:	11-15/18.5-22/30/37-45KW
Discharge Bore:	DN150(6”)	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley	Weight:	477 Kg
Foundation Bolt:	4-M16*400	Speed:	700-1500 Rpm
Highlight:	roots type vacuum pump , air blower pump

Cast Iron Roots Blower Vacuum Pump, vacuum roots blower, convey vacuum air

About BK vacuum pump

Based on our BK series positive Roots blower, we developed BK vacuum pump for vacuum application.

Its maximum vacuum pressure can reach -40KPA. Widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries, it is the reliable and perfect product due to its good vacuum performance and stable vacuum air capacity input.

Specifications

Model	BV7011
Inlet dimension	DN150
Outlet dimension	DN150
Air capacity	11.41-31.51m³/min
Discharge differential pressure	-10 ~ -40KPA
Rotary speed	700-1500rpm
Motor type	11-15/18.5-22/30/37-45KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Motor efficiency grade	IE3
Moror insulation class	F, temperature rising B
Motor protection class	IP55
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	477kg
Packing size Approx.	1.81.22.0m (lengthwidthheight)

Parameter sheet

Model	Port Dia (MM)	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2		-0.4kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O		-4000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa		-0.04Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV7011	150(6")	700	13.57	3.77	12.67	6.60	11.97	8.98	11.41	11.87
		850	16.93	4.57	16.03	8.01	15.34	10.90	14.78	14.41
		1000	20.29	5.38	19.40	9.42	18.70	12.83	18.14	16.95
		1150	23.66	6.19	22.76	10.84	22.07	14.75	21.50	19.50
		1250	25.90	6.73	25.00	11.78	24.31	16.03	23.75	21.19
		1400	29.26	7.53	28.37	13.19	27.67	17.96	27.11	23.73
		1500	31.51	8.07	30.61	14.13	29.91	19.24	29.35	25.43

Assembling drawing of blower package
Cast Iron Roots Blower Vacuum Pump , vacuum roots blower for chemical industry 0

Vertical installation also available

BV Outline Dimension Sheet																	Unit:mm
Type	Port Dia	Motor power	A	B	C	D	E	F	G	H	K	M	N	0	P	Q	n-M16×h	Weight (kg)
BV7011	150(6")	11～15	1495	1200	123	271	829	232	324	1484	190	443	536	180	280	24	4-M16×400	477
		18.5～22										457	550
		30										497	590
		37～45										559	652
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.

Standard supply of scope

1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
