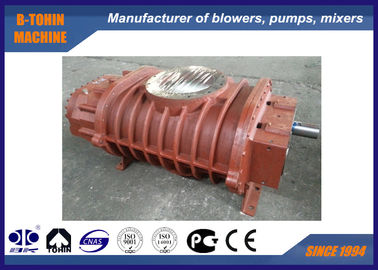

DN250 Roots Blower Vacuum Pump , 30KPA electronic coating roots blower

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001/CE
Model Number:	BV8024

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	27.64-73.81m3/min
Discharge Differential Pressure:	-10KPA ~30KPA	Motor Power:	11-110KW
Discharge Bore:	DN250(10”)	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley
Highlight:	roots type vacuum pump , air blower pump

DN250 Roots Blower Vacuum Pump, vacuum -30KPA, electronic coating roots blower

About BK vacuum pump

BK vacuum pump is widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries. It is composed of blower main body, inlet silencer, out silencer, vacuum pressure gage, vacuum relief valve and other necessary accessories.

Blower acoustic enclosure and control cabinet and other connection parts are available. OEM and customized goods are available.

Specifications

Model	BV8024
Inlet dimension	DN250
Outlet dimension	DN250
Air capacity	27.64-73.81m³/min
Discharge differential pressure	-10 ~ -30KPA
Rotary speed	700-1500rpm
Motor type	11-110KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Motor efficiency grade	IE3
Moror insulation class	F, temperature rising B
Motor protection class	IP55
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	900kg
Packing size Approx.	2.351.652.5m (lengthwidthheight)

Parameter sheet

Model	Port Dia	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW
BV8024	250(10")	700	31.6	11.24	29.33	17.47	27.64	23.27
		850	39.51	13.65	37.25	21.22	35.56	28.25
		1000	47.43	16.06	45.16	24.96	43.47	33.24
		1150	55.34	18.46	53.07	28.71	51.38	38.23
		1250	60.62	20.07	58.35	31.2	56.66	41.55
		1400	68.53	22.48	66.26	34.95	64.57	46.54
		1500	73.81	24.08	71.54	37.44	69.85	49.86

Assembling drawing of blower package

DN250 Roots Blower Vacuum Pump , 30KPA electronic coating roots blower 0

BV Outline Dimension Sheet

Unit:mm

Type

Port Dia

Motor power

n-M16×h

Weight
(kg)

BV8024

200(10")

11～110

4-M16×400

Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.

The weight above are for standard accessories only,motor excluded.

Standard supply of scope

1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
