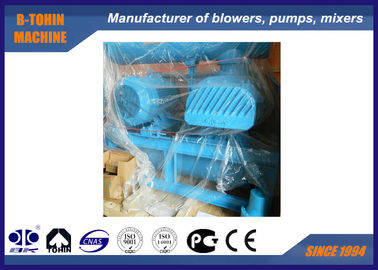

DN250 Roots Blower Vacuum Pump, suction pressure -40KPA, food convey blower
About BK vacuum pump
BK vacuum pump can reach the maximum vacuum pressure of -40KPA. It is widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries. It is composed of blower main body, inlet silencer, out silencer, vacuum pressure gauge, vacuum relief valve and other necessary accessories.
Specifications
|
Model
|
BV9020
|
| Inlet dimension |
DN250 |
| Outlet dimension |
DN250 |
|
Air capacity
|
29.48-81.37m3/min
|
|
Discharge differential pressure
|
-10 ~ -40KPA
|
|
Rotary speed
|
700-1500rpm
|
|
Motor type
|
15KW-160KW
380/400/415/440V, 3PHASES, 50/60HZ
|
|
Motor brand
|
Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option
|
| Motor efficiency grade |
IE3 |
| Moror insulation class |
F, temperature rising B |
| Motor protection class |
IP55 |
|
Installation type
|
Standard: horizontal type.
Vertical type available for your option
|
|
N.W. of blower without motor
|
1150kg
|
|
Packing size Approx.
|
2.62*1.78*2.45m (length*width*height)
|
Parameter sheet
| Model |
Port Dia
(MM) |
Speed |
Inlet capacity (m3/min)and shaft power (KW) |
| -0.1kgf/cm2 |
-0.2kgf/cm2 |
-0.3kgf/cm2 |
-0.4kgf/cm2 |
| -1000mmH2O |
-2000mmH2O |
-3000mmH2O |
-4000mmH2O |
| -0.01Mpa |
-0.02Mpa |
-0.03Mpa |
-0.04Mpa |
| rpm |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
| BV9020 |
250(10") |
700 |
35.04 |
12.11 |
32.72 |
18.99 |
30.93 |
25.36 |
29.48 |
29.05 |
| 850 |
43.73 |
14.71 |
41.41 |
23.06 |
39.61 |
30.80 |
38.17 |
35.28 |
| 1000 |
52.41 |
17.30 |
50.10 |
27.12 |
48.30 |
36.23 |
46.85 |
41.50 |
| 1150 |
61.10 |
19.90 |
58.78 |
31.19 |
56.99 |
41.67 |
55.54 |
47.73 |
| 1250 |
66.89 |
21.63 |
64.58 |
33.90 |
62.78 |
45.29 |
61.33 |
51.88 |
| 1400 |
75.58 |
24.22 |
73.26 |
37.97 |
71.47 |
50.73 |
70.02 |
58.10 |
| 1500 |
81.37 |
25.95 |
79.05 |
40.69 |
77.26 |
54.35 |
75.81 |
62.25 |
Assembling drawing of blower package
| BV Outline Dimension Sheet |
|
|
|
|
|
|
|
|
|
|
|
Unit:mm |
Type |
Port Dia |
Motor power |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
0 |
P |
Q |
n-M16×h |
Weight
(kg) |
| BV9020 |
200(10") |
15～160 |
2055 |
1800 |
110 |
400 |
1084 |
300 |
545 |
2050 |
382 |
820 |
935 |
230 |
360 |
114 |
4-M16×400 |
1150 |
| Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt. |
| The weight above are for standard accessories only,motor excluded. |
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
