Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001/CE |
| Model Number: | BKW5003 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 10 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 SETS per month |
| Name: | Roots Rotary Lobe Blower | Type: | Positive Displacement Roots Type, Three Lobes |
|---|---|---|---|
| Air Capacity: | 2.31-6.21m3/min | Discharge Differential Pressure: | 60-100KPA |
| Motor Power: | 5.5-18.5KW | Discharge Bore: | DN65(2.5”) |
| Driven Type: | Motor Driven, Connected By Belt And Pulley | Installation Type: | Vertical, Horizontal Available Also |
| High Light: | fertilizer lobe type blower,steel lobe type blower,60kpa lobe type blower |
||

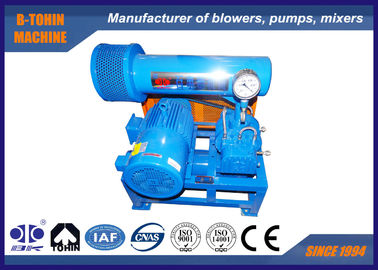

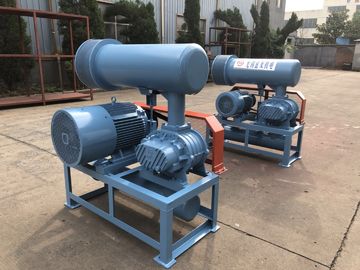

Air Roots Rotary Lobe Blower, DN65, maxiumum pressure 100KPA, aeration blower
About BKW
BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which
can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher
pressure application.
Specifications
|
Model |
BKW5003 |
|
Air capacity |
2.31-6.21m3/min |
|
Discharge differential pressure |
60-100KPA |
|
Rotary speed |
1000-2000rpm |
|
Cooling water volume |
4 l/min |
|
Motor type |
5.5-18.5KW |
|
Motor brand |
Standard: Siemens Beide or Wannan motor |
|
Installation type |
Standard: horizontal type. |
|
N.W. of blower without motor |
181kg |
|
Packing size Approx. |
Packing case for blower: 1.3*0.95*0.75m (L*W*H) Packing case for blower accessories: 1.21*0.53*0.47m (L*W*H) |
Features
1. Improved type of BK series for achieving higher pressure
2. High temperature rising occurs under high pressure operation, water cooling system will solve the problem and protect bearings.
Parameter sheet
| Model | Port Dia (MM) | Speed | Inlet airflow (m3/min)and shaft power(KW)(m3/min) | |||||||||||
| 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | 0.9kgf/cm2 | 1.0kgf/cm2 | Cooling Water |
|||||||||
| 6000mmH2O | 7000mmH2O | 8000mmH2O | 9000mmH2O | 10000mmH2O | ||||||||||
| 0.06Mpa | 0.07Mpa | 0.08Mpa | 0.09Mpa | 0.1Mpa | ||||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | |||
| BKW5003 | 65 (2.5") | 1000 | 2.31 | 4.59 | 2.18 | 5.45 | 4 | |||||||
| 1150 | 2.89 | 5.28 | 2.76 | 6.27 | 2.65 | 7.07 | 2.53 | 7.87 | ||||||
| 1250 | 3.28 | 5.74 | 3.15 | 6.81 | 3.04 | 7.68 | 2.92 | 8.55 | ||||||
| 1350 | 3.67 | 6.19 | 3.54 | 7.36 | 3.43 | 8.30 | 3.31 | 9.24 | ||||||
| 1500 | 4.26 | 6.88 | 4.13 | 8.17 | 4.01 | 9.22 | 3.90 | 10.26 | 3.79 | 11.30 | ||||
| 1600 | 4.65 | 7.34 | 4.52 | 8.72 | 4.40 | 9.83 | 4.29 | 10.95 | 4.18 | 12.06 | ||||
| 1750 | 5.23 | 8.03 | 5.10 | 9.54 | 4.99 | 10.75 | 4.87 | 11.97 | 4.77 | 13.19 | ||||
| 1850 | 5.62 | 8.49 | 5.50 | 10.08 | 5.38 | 11.37 | 5.27 | 12.66 | 5.16 | 13.94 | ||||
| 2000 | 6.21 | 9.18 | 6.08 | 10.90 | 5.96 | 12.29 | 5.85 | 13.68 | 5.75 | 15.07 | ||||
Structure of blower main body
Flow direction of cooling water
Assembling drawing of blower package

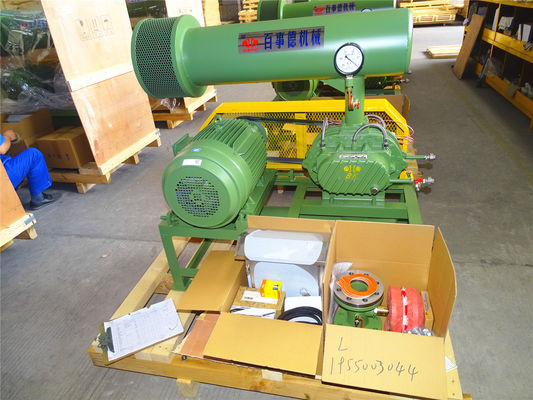

Standard supply of scope
1. shaft blower
2. inlet silencer (with air filter)
3. outlet silencer
4. relieve valve
5. check valve
6. flexible joint
7. pressure gauge
8. pulley
9. V-belt
10. belt cover
11. blower base
12. electric motor
For more commercial and techinial details, please feel free to to contact us.
