Professional Manufacturer of Various Kinds of Blowers

|
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001/CE |
| Model Number: | BKW7011 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SETS per month |
| Name: | Roots Rotary Lobe Blower | Type: | Positive Displacement Roots Type, Three Lobes |
|---|---|---|---|
| Air Capacity: | 20m3/min | Discharge Differential Pressure: | 100KPA |
| Motor Power: | 55W | Driven Type: | Motor Driven, Connected By Belt And Pulley |
| Installation Type: | Horizontal, Vertical Available Also | Lobe Type: | 3 Lobe, Made Of QT500 |
| Sealing Type: | Skeleton Oil Seal, Fluoro Rubber, SKF | Application: | Water Treatment |
| Highlight: | 100KPA Roots Lobe Blower,Water Treatment Roots Lobe Blower,20m3/min tri lobe roots blower |
||

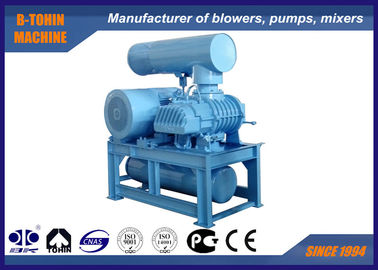

Water Treatment Roots Rotary Lobe Blower, high pressure 100KPA air compressor
The Roots-type blower is a positive displacement lobe pump which operates by pumping a fluid with a pair of meshing lobes resembling a set of stretched gears. Fluid is trapped in pockets surrounding the lobes and carried from the intake side to the exhaust.
BKW blower can be used for various industries, such as for separating small particles and algae in groundwater, recovering valuable products in industrial sewage and so on. It can reach the air capacity of 3900 m3/h under 80KPA rising pressure.
Specifications
|
Model |
BKW7011 |
| Discharge bore size | DN150 (6") |
|
Air capacity |
20m3/min |
|
Discharge differential pressure |
100KPA |
|
Rotary speed |
1250rpm |
|
Cooling water volume |
10 l/min |
|
Motor type |
55KW |
|
Installation type |
Standard: horizontal type. |
|
N.W. of main blower body |
790kg |
Features
1. Integral-shaft ductile iron impellers
2. Large size of cylindrical roller bearings
3. Hardened teeth face for precision helical timing gear
4. Tri-lobe rotor with optimized curve
5. Flexible installation ways available
Parameter sheet
| Model | Port Dia (MM) | Speed | Inlet airflow (m3/min)and shaft power(KW)(m3/min) | |||||||||||
| 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | 0.9kgf/cm2 | 1.0kgf/cm2 | Cooling Water |
|||||||||
| 6000mmH2O | 7000mmH2O | 8000mmH2O | 9000mmH2O | 10000mmH2O | ||||||||||
| 0.06Mpa | 0.07Mpa | 0.08Mpa | 0.09Mpa | 0.1Mpa | ||||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | |||
| BKW7011 | 150 (6") | 700 | 10.14 | 17.48 | 9.72 | 18.62 | 10 | |||||||
| 850 | 13.40 | 21.22 | 12.99 | 22.60 | 12.62 | 25.76 | 12.27 | 29.04 | 11.92 | 32.20 | ||||
| 1000 | 16.66 | 24.96 | 16.25 | 26.59 | 15.88 | 30.30 | 15.53 | 34.17 | 15.18 | 37.88 | ||||
| 1150 | 19.92 | 28.71 | 19.51 | 30.58 | 19.14 | 34.85 | 18.79 | 39.29 | 18.44 | 43.56 | ||||
| 1250 | 22.10 | 31.21 | 21.69 | 33.24 | 21.32 | 37.88 | 20.97 | 42.71 | 20.62 | 47.35 | ||||
| 1400 | 25.36 | 34.95 | 24.95 | 37.23 | 24.58 | 42.42 | 24.23 | 47.84 | 23.88 | 53.03 | ||||
| 1500 | 27.54 | 37.45 | 27.12 | 39.89 | 26.75 | 45.45 | 26.41 | 51.25 | 26.06 | 56.82 | ||||
Structure of blower main body
Flow direction of cooling water
Available accessories for your choice
1. inlet silencer (with air filter)
2. outlet silencer
3. relieve valve
4. check valve
5. flexible joint
6. pressure gauge
7. blower pulley and motor pulley
8. V-belt
9. belt cover
10. public base
11. motor
12. control cabinet
13. acoustic enclosure
