DN40 (1.5'') Three Lobes Roots Blower with 0.37-1.11 m³/min Air Capacity and 2300 rpm Max Speed

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001/CE
Model Number:	BKW4005

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	100 SETS per month

Contact Now

Detailed Product Description

Name:	Roots Rotary Lobe Blower	Type:	Positive Displacement Roots Type, Three Lobes
Air Capacity:	0.37-1.11m³/min	Discharge Differential Pressure:	60-100KPA
Motor Power:	1.5-4 KW	Discharge Bore:	DN40 (1.5”)
Driven Type:	Motor Driven, Connected By Belt And Pulley	Installation Type:	Vertical, Horizontal Available Also
Weight (No Motor):	65 KG	Speed:	1650-2300 Rpm
Cooling Water:	3 L/min	Shaft Power:	1.70-3.25KW
Highlight:	DN40 Roots Rotary Lobe Blower , 0.37-1.11 m³/min Three Lobes Roots Blower , 2300 rpm Positive Displacement Blower

DN40 (1.5'')Three Lobes Roots Blower with Max Speed 2300 rpm

On the base of introduced technology from American, we developed BKW Series Roots blowers with tri-lobes and water cooling structure. The blower unit has a compact construction including blower, motor, inlet and discharge silencers, filter, flexible joints, relesf valve, check valve, and pressure gauge, and also can be equipped with acoustic enclosure and control devices.

Specifications

Model	BKW4005
Air capacity	0.37-1.11m³/min
Discharge differential pressure	60-100KPA
Rotary speed	1650-2300rpm
Cooling water volume	3 L/min
Motor type	1.5-4KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and other motors for your option
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	65kg
Packing size Approx.	Packing case for blower: 10.81m (LWH)

Applications

1. aeration waste water treatment

2. backwashing in sewage treatment

3. pneumatic conveying in cement plants

4. dust removal in power plant

Parameter sheet

Model	Speed	Inlet capacity (m3/min)and shaft power (KW)										Cooling water
		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2		0.9kgf/cm2		1.0kgf/cm2
		6000mmH2O		7000mmH2O		8000mmH2O		9000mmH2O		10000mmH2O
		0.06Mpa		0.07Mpa		0.08Mpa		0.09Mpa		0.1Mpa
	rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	L/min
BKW4005	1650	0.47	1.70	0.37	1.86							3
Port Dia: DN40(1.5")	1800	0.62	1.85	0.52	2.02	0.44	2.20
	1900	0.71	1.95	0.62	2.14	0.53	2.32	0.45	2.50	0.38	2.69
	2150	0.96	2.21	0.87	2.42	0.78	2.63	0.70	2.83	0.62	3.04
	2300	1.11	2.36	1.02	2.59	0.93	2.81	0.85	3.03	0.77	3.25

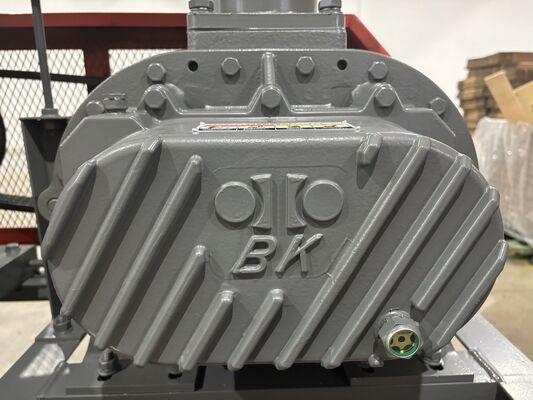

Structure of blower main body

DN40 (1.5'') Three Lobes Roots Blower with 0.37-1.11 m³/min Air Capacity and 2300 rpm Max Speed 0

Flow direction of cooling water

DN40 (1.5'') Three Lobes Roots Blower with 0.37-1.11 m³/min Air Capacity and 2300 rpm Max Speed 1

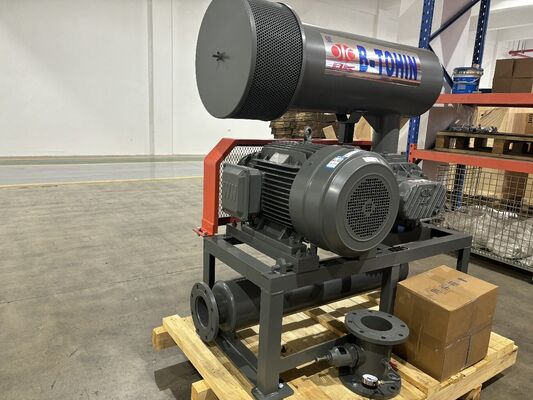

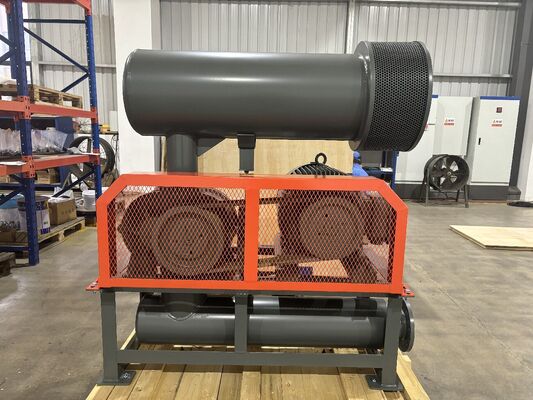

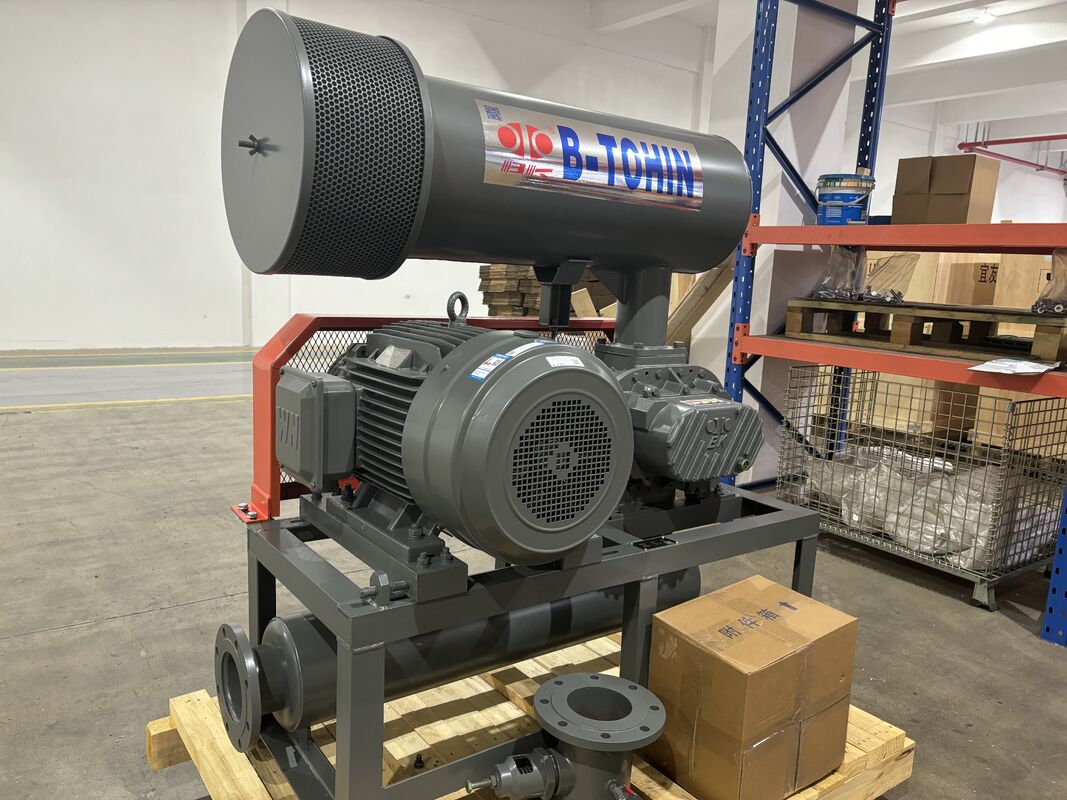

Assembling drawing of blower package

DN40 (1.5'') Three Lobes Roots Blower with 0.37-1.11 m³/min Air Capacity and 2300 rpm Max Speed 2

Outline Dimension

DN40 (1.5'') Three Lobes Roots Blower with 0.37-1.11 m³/min Air Capacity and 2300 rpm Max Speed 3 Standard accssory include:Inlet and outlet silencer,pressure gauge,base-frame,blower's pulley,motor'spulley,belt,belt guard,relief valve,check valve. The weight above are for standard accessories only,motor excluded. Dimension for blower,which is equipped with high voltage motor,will be supplied specially.
