ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float

ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float

  • ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float
  • ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float
ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float
Product Details:
Place of Origin: CHINA
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: ATB100HP-0.8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 300 sets / month
Contact Now
Detailed Product Description
Lubricants: Need Maintenance: No Need
Pressure: 8000 MmAq Air Volume Adjustable Range: 33-57 ㎥ / Min
Cooling Way: Air Cooling RPM: 29700
High Light:

low noise turbo air blower


eco friendly turbo air blower

About the product


B-TOHIN machine (jiangsu) co., LTD., the foreign capital enterprise, was founded in 1994, the company has passed the pass the quality management system certification and | SO14001 environmental management system certification, and was identified as high-tech enterprises in jiangsu province, China famous trademark, brand-name products in jiangsu province, jiangsu province energy saving air power equipment engineering technology research center, a famous trademark in jiangsu province, environmental protection product certification, and won several national patents and national torch project.I have been awarded the brand title of Chinese water network user satisfaction for many years.


The main advantage of ATB series air suspension bearing high speed centrifugal blower is that it saves energy.The product of the mouth adopts air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.


Key Techonogy


1. Air Foil bearing


Air foil bearing is lubricated by air buoyancy. The use of air instead of lubricant can realize operation under higher temperature and speed. The advantages of air foil bearing structure include flexible start-up, low-cost operation, no mechanical friction, no need for lubrication oil, no vibration, lower noise and long service life (semi-permanent).


ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float 0


2.Comparisontable of different bearings


Item Roller bearing Tilting-pad bearing Magnetic bearing Air foil bearing
Lubricants Need Need - -

Need replace

after a period of


Need regular


Need replace


ball bearing

No Need



1 year 1 year 5 years 20 years

Power cut/

electrical failure

Oil pressure drop/

possible fault

Oil pressure drop/

possible fault

Short life of


ball bearing





oil system


oil system

Complex controller,

limited bearing

coil life



machine type)

Power loss

5% loss due to

gear system

10% loss due to

gear system

(When high speed

motor equipped)

1% loss

(When high speed

motor equipped)

Loss < 0.5%

A/S charges 50 100 100 50



3.High Speed Motor


Adopt motor of high-efficiency up to 95%, of which the speed can be controlled precisely. The motor is of minimum usable design, fast speed and air cooling type to achieve high efficiency. Air cooling is more reliable than water cooling type, because it provides easier maintenance and promises safer operation.

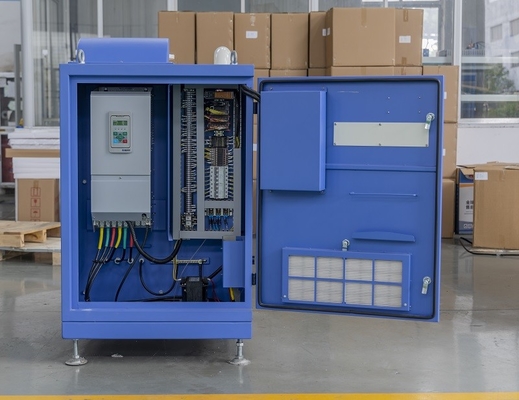

4. Inverter & PLC

Inverter PLC
ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float 1 ATB air bearing turbo blower With 33m3 / Min~57m3 / Min Float 2




Adopt the international famous brand SEOHO, YASKAWA ,VACON inverter for your choose. The motor can be started up with a small current so as to cut down the investment on electricity and electric cable. Featured of low noise, high-efficiency, soft-start type and digital control efficiency no less than 96%, the inverter is stable and reliable in operation and can response to rapid load change very fast.





Adopt the programmable logic controller (PLC) of international famous brand, of which the automated solutions standard reaches the world level. The PLC can provide users various solutions from control to final connection to load. Different with MICOM, the PLC needn’t MCP. With single unit or multiple units communication realized by bus wire and center control system, the PLC can lower cost, improve control capability and safety level.

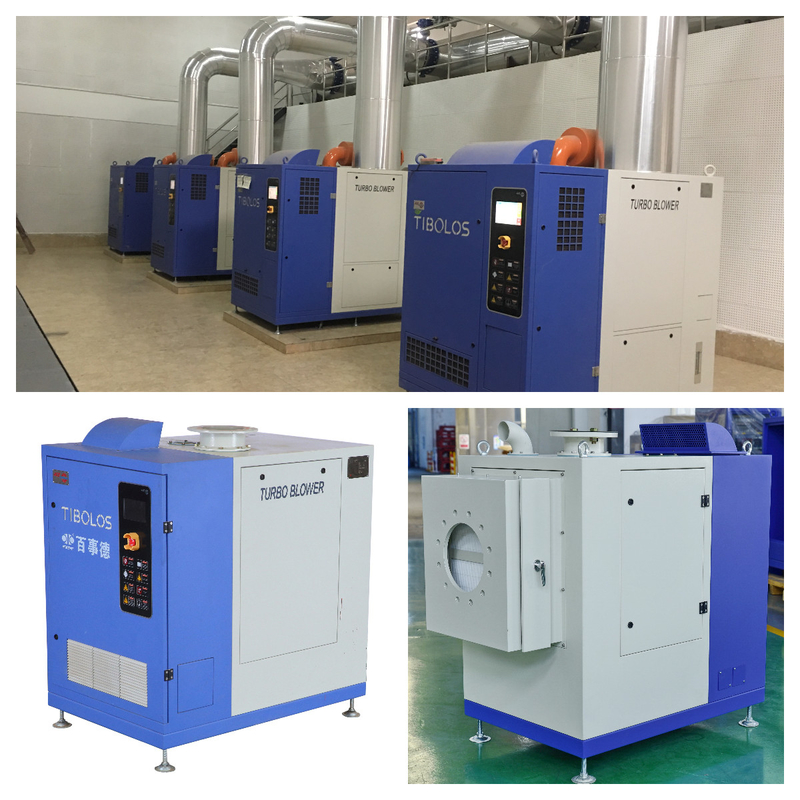

Advantages of ATB Blower


(1) Energy-saving, high efficiency

Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.


(2) Low noise

Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.


(3) No oil, no vibration

Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.


(4) Convenient maintenance

Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance



5.Model and Data





Air Capacity


Discharge Bore A Cooling Way
ATB10HP-0.6 6000 7 80

Air cooling


ATB20HP-0.6 6000 13 125
ATB30HP-0.6 6000 21 150
ATB30HP-0.8 8000 17 150
ATB50HP-0.6 6000 34 150
ATB50HP-0.8 8000 27 150
ATB50HP-1.0 10000 22 250
ATB75HP-0.6 6000 49 200
ATB75HP-0.8 8000 38 200
ATB75HP-1.0 10000 31 200
ATB100HP-0.6 6000 70 250
ATB100HP-0.8 8000 54 250
ATB100HP-1.0 10000 45 250
ATB150HP-0.6 6000 102 250
ATB150HP-0.8 8000 80 250
ATB150HP-1.0 10000 66 250
ATB200HP-0.6 6000 132 300
ATB200HP-0.8 8000 102 300
ATB200HP-1.0 10000 85 300
ATB250HP-0.6 6000 160 350
ATB250HP-0.8 8000 130 350
ATB250HP-1.0 10000 104 350
ATB300HP-0.6 6000 198 350
ATB300HP-0.8 8000 156 350
ATB300HP-1.0 10000 128 350




Comparison with Roots Blower


Item Traditional Roots Blower ATB150HP-0.6
Discharge pressure 0.6 bar 0.6 bar
Air capacity 70 m³/min 70 m³/min
Shaft power 112.5 KW 72.5 KW
Compression efficiency 50% 75%
Noise(@ 1.5m) 95~110 dB 80 dB
Lubrication oil Need No need
Service life 7 years Semi permanent
Annual depreciation 100.0% 53.3%
Annual energy consumption 100.0% 50.0%
Annual maintenance cost 100.0% 8.3%
Annual total cost 100.0% 57.7%



6. Summing up


Air suspension centrifugal fan with traditional roots blower, multistage centrifugal blower is different, use air bearing, direct technology, high efficiency impeller and ultra-high speed motor, to breakthrough the economic benefits of the higher energy saving effect.In order to help the ecological environment and stable technology, provide a good comfortable working environment, can expect multiple effects.
