XTB75HP Material Transportation Centrifugal Blower For Water Treatment 28-51m3/min Flow Rate No Maintenance Required

Product Details:

Place of Origin:	CHINA
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	XTB75HP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	25 working days according to your specifications
Payment Terms:	L/C, T/T
Supply Ability:	300 sets / month

Contact Now

Detailed Product Description

Maintenance:	No Need	Pressure:	6000-12000 MmAq
Air Volume Adjustable Range:	28-51 M³/min	Cooling Way:	Air Cooling
Size:	W800mm* D1150mm* H1350mm	Weight:	700kg
Discharge:	200mm	Allication:	Water Treatment, Cement And Material Transportation
Shaft Power:	75HP	Advantages:	High Efficiency,Energy Saving,Low Noise, Intelligent Control, Free Maintenance
Highlight:	Water Treatment Centrifugal Blower , No Maintenance Required Centrifugal Blower , Material Transportation Centrifugal Blower

1,Machine Brief:
XTB Air Suspension Bearing Centrifugal Blower is an efficient fluid machinery that combines advanced suspension technology and centrifugal Blower principles, widely used in multiple industrial fields.

2,Main Characteries:

1,Air suspension bearing is lubricated by air buoyancy.The usage of air instead of lubricant can realize operation under higher temperature and speed.The advantages of air foil bearing structure include flexible start-up,low -cost operation,no mechanical friction, no need for lubrication oil,no vibration,lower noise and long service life(semi-permanent).

2,Impeller:The impeller is made of AL7075 and is precisely manufactured by advanced 3D optimal design technology. It is featured of high strength,high aerodynamic efficiency and low wear.Directly connected with the shaft,its power transmission efficiency is 99%.

3,High speed motor:Adopt motor of high-efficiency up to 95%,applicable for precise speed control.

3,Product Structure and Components:

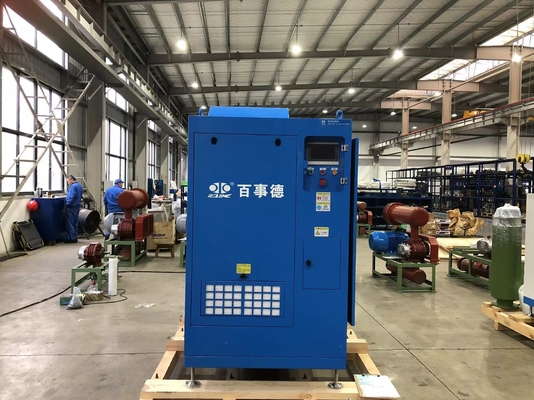

XTB75HP Material Transportation Centrifugal Blower For Water Treatment 28-51m3/min Flow Rate No Maintenance Required 0

The high-speed direct connected motor controls its speed by changing the frequency of the frequency converter.

The PLC control -unit allows users to manually/automatically adjust it in real time according to the site conditions.

The chassis fixes all components and blocks the noise inside the blower.

Touch screen LCD	Variable frequency drive	Cooling air muffler
1,Input driving signal 2,View operational data 3,Change product settings	1,Change the motor speed according to the PLC value 2,Change flow and pressure	1,Saving installation space 2,Two air cooling circulation systems
Vent valve	Air	Internal Muffler
1,Empty the air to protect the motor when starting and stopping the blower 2,Pneumatic systems utilize compressed air by itself	1,Compress the surrounding air and gas 2,Centrifugal compression by using impellers and volutes 3,Oil free due to the use of air bearings 4,Air cooling or water cooling 5,High efficiency motor	1,Reduce the noise transmitted to the outside through the motor of the entrance path 2,C-shaped shape

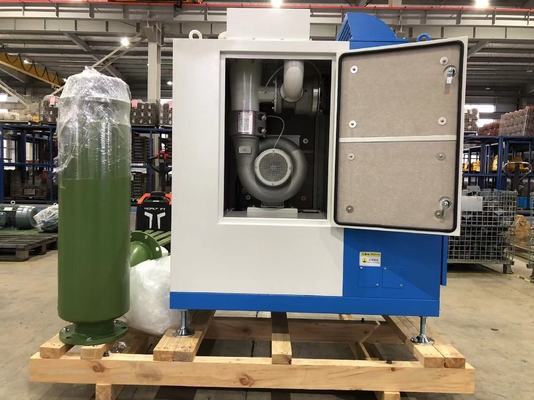

XTB75HP Material Transportation Centrifugal Blower For Water Treatment 28-51m3/min Flow Rate No Maintenance Required 1

4,Machine Advantages:

①Simple Maintenance

②Compact Structure

③Low noise,no vibration,long service life

④Convenient usage and control

⑤Oil free,no vibration,air bearing

⑥High efficiency,saving energy

5.Model Specifications:

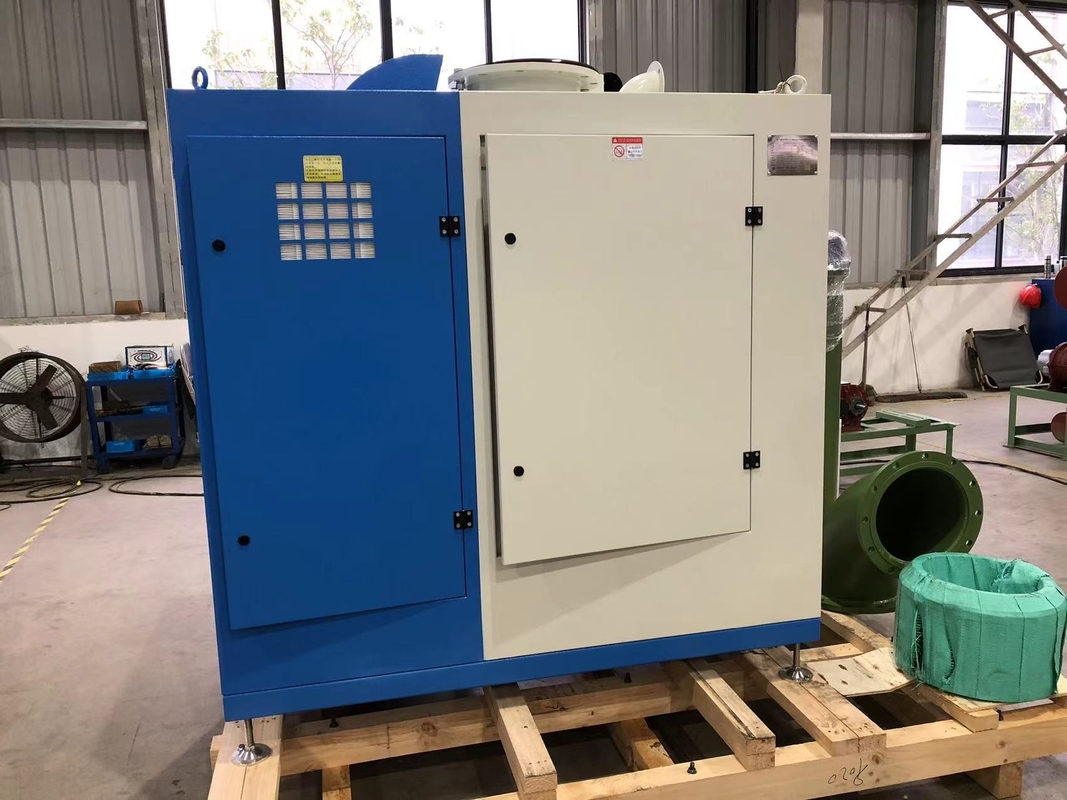

XTB75HP Material Transportation Centrifugal Blower For Water Treatment 28-51m3/min Flow Rate No Maintenance Required 2

Model		10	20	30	50	75	100	125	150	200	250	300	350	400	500	600	700
Flow rate (mm Aq)	6000	7.3	14.5	23.0	35.9	51.0	73.8	89.4	104.0	129.0	160	198	227	245	316	390	448
	8000		11.1	17.7	28.1	37.0	57.2	72.8	86.3	100.9	130	156	179	189	256	307	353
	10000				21.8	31.0	46.8	57.2	68.6	83.2	104	128	147	158	205	252	290
	12000					28.0	37.4	49.9	60.3	70.2	94	109	125	149	177	207	239
Discharge(DN)		80	150	150	150	200	250	250	250	300	350	350	350	400	500	500	500

Weight(kg)		200	395	400	415	700	780	860	870	920	1400	1480	1500	2200	3700	3860	3900
SIZE (mm)	W	650	800	800	800	1020	1020	1020	1020	1020	1300	1300	1300	1700	1800	1800	1800
	D	650	1150	1150	1150	1600	1600	1700	1700	1700	2000	2000	2000	2500	3500	3500	3500
	H	1020	1350	1350	1350	1580	1580	1780	1780	1780	1900	1900	1900	2040	2200	2200	2200
