Product Introduction
The main advantages of XTB series air suspension bearing high speed centrifugal blower is that it saves energy.
The product of the mouth adopts air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.
Components and Structure
| Touch screen LCD |

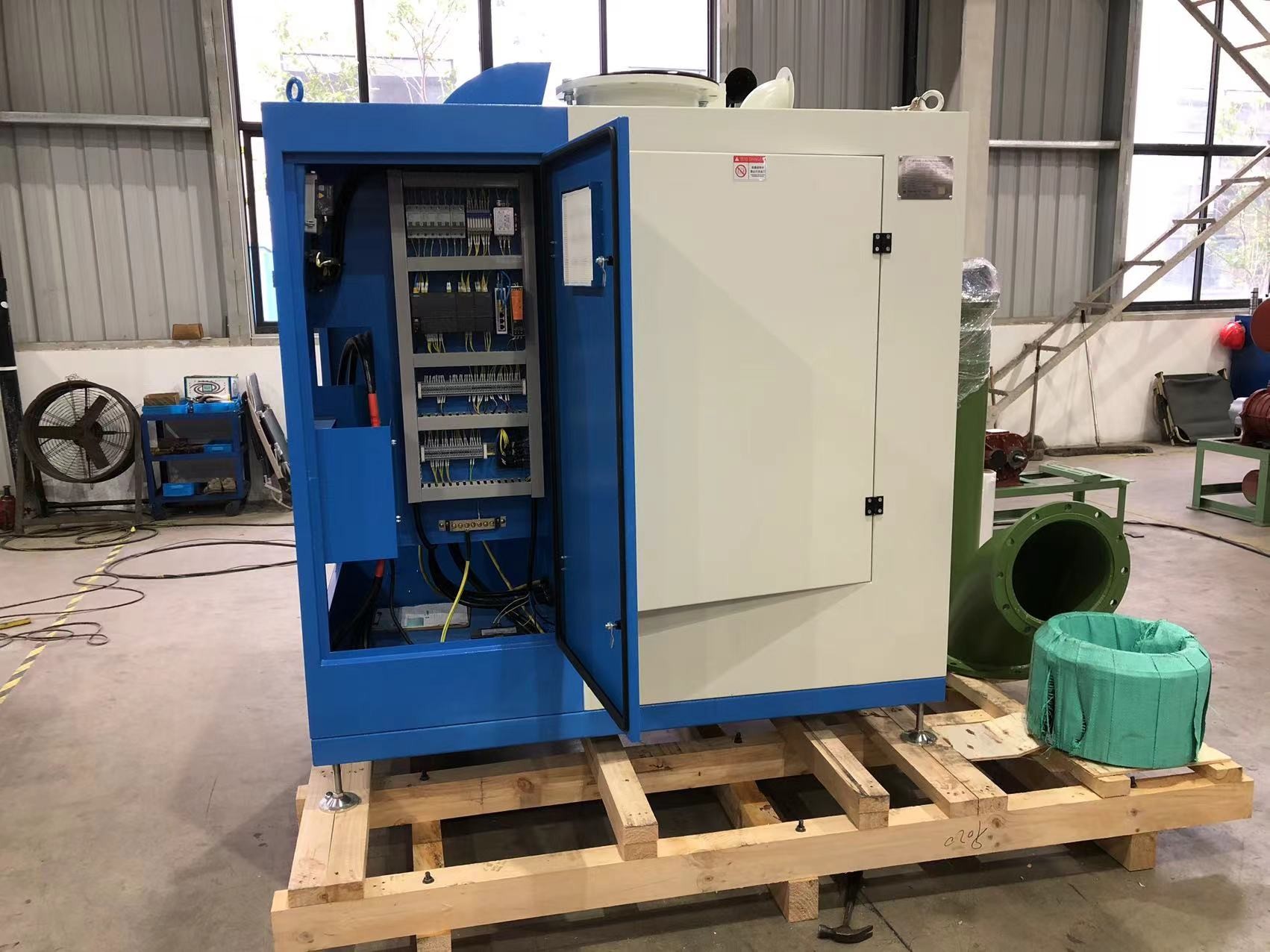

Variable frequency drive |
Cooling air muffler |
|
1,Input driving signal
2,View operational data
3,Change product settings
|
1,Change the motor speed according to the PLC value
2,Change flow and pressure
|
1,Saving installation space
2,Two air cooling circulation systems
|
| Vent valve |
Air |
Internal Muffler |
|
1,Empty the air to protect the motor when starting and stopping the blower
2,Pneumatic systems utilize compressed air by itself
|

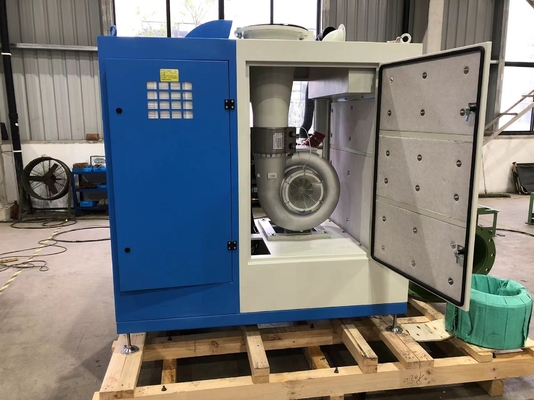

1,Compress the surrounding air and gas
2,Centrifugal compression by using impellers and volutes
3,Oil free due to the use of air bearings
4,Air cooling or water cooling
5,High efficiency motor
|
1,Reduce the noise transmitted to the outside through the motor of the entrance path
2,C-shaped shape
|
Advantages of XTB Blower
(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.
(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.
(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.
(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance
Specifications and Sizes
| Model |
Pressure |
Air Capacity |
Discharge Bore A |
Cooling Way |
| mmAq |
㎥/min |
| XTB300HP-0.6 |
6000 |
198 |
350 |
Air cooling |
| XTB300HP-0.8 |
8000 |
156 |
350 |
| XTB300HP-1.0 |
10000 |
128 |
350 |
| XTB300HP-1.2 |
12000 |
109 |
350 |
| Model |
10 |
20 |
30 |
50 |
75 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
700 |
| Weight(kg) |
200 |
395 |
400 |
415 |
700 |
780 |
860 |
870 |
920 |
1400 |
1480 |
1500 |
2200 |
3700 |
3860 |
3900 |
|
SIZE
(mm)
|
W |
650 |
800 |
800 |
800 |
1020 |
1020 |
1020 |
1020 |
1020 |
1300 |
1300 |
1300 |
1700 |
1800 |
1800 |
1800 |
| |
D |
650 |
1150 |
1150 |
1150 |
1600 |
1600 |
1700 |
1700 |
1700 |
2000 |
2000 |
2000 |
2500 |
3500 |
3500 |
3500 |
| |
H |
1020 |
1350 |
1350 |
1350 |
1580 |
1580 |
1780 |
1780 |
1780 |
1900 |
1900 |
1900 |
2040 |
2200 |
2200 |
2200 |
